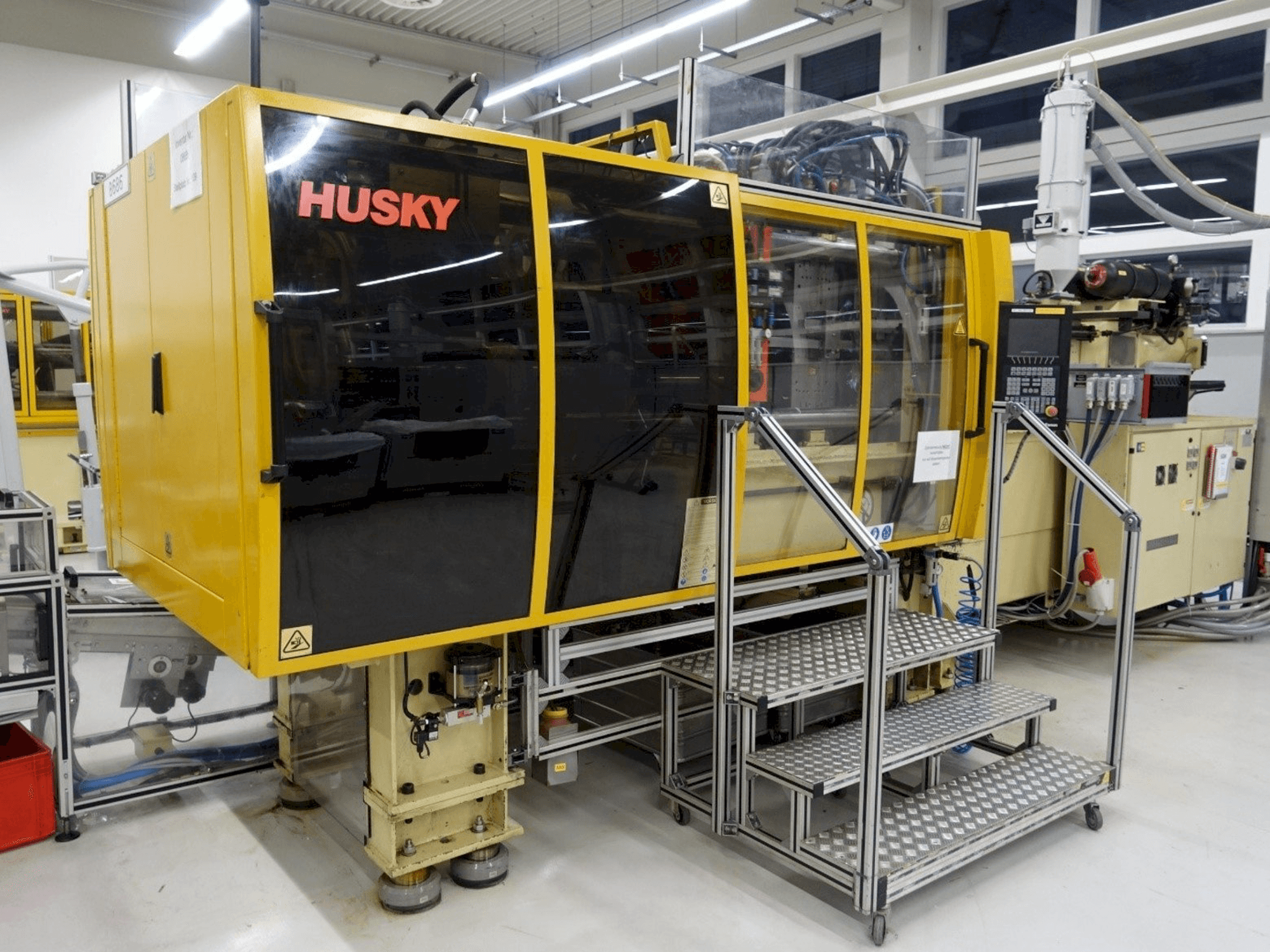

Husky - GL225 RS70/60DE-INJ-HUS-1997-00004

Additional equipment

• - Spare Parts (additional cost)
• - 2 nozzle closure cylinder
• - 1 nozzle closure shut-off piston
• - 2 orifice plates - 2 tie bars
• - 8 Bolt nozzle closure (bracket)
• - 7 Snap ring small & large
• - 2 Hydraulic oil filter - 1 hydraulic block injection unit
• - 2 buckets of grease for central lubrication
• - 1 Foot pump central lubrication
• - 1 tie bar runner for stack molds

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Platen distance max 1475 mm
  • - Center height 1830 mm (incl. Additional increase of 200mm)
  • - Screw - l/d 23,6 : 1
  • - Screw stroke 300 mm
  • - Standard screw drive speed (rpm) 318**- *torque (nm) 901 - plasticizing capacity (g/s ps) 46
  • - High torque screw drive speed (rpm) 183** - torque (nm) 1567 - plasticizing capacity * (g/s ps) 27
  • - Worm drive for high speed speed (rpm) 443** - torque (nm) 647 - plasticizing capacity * (g/s ps) 64
  • - Mold mounting and ejector drilling patterns optionally according to euromap or spi
  • - Hole patterns for mte robot installation
  • - Machine-mounted stack mold carrier
• Qualitative Machine Benefits:
  • - Design for stack mold carrier
  • - Mold cooling package with cast steel components
  • - Air function - up to 4 air valves per platen
  • - Pneumatic valve gate
  • - Accumulator assisted injection
  • - Hydraulic shut-off nozzle
  • - Ring check valve
  • - Machine has been very well maintained during lifetime.
