- Hurco VM 1 Vertical Machining Center

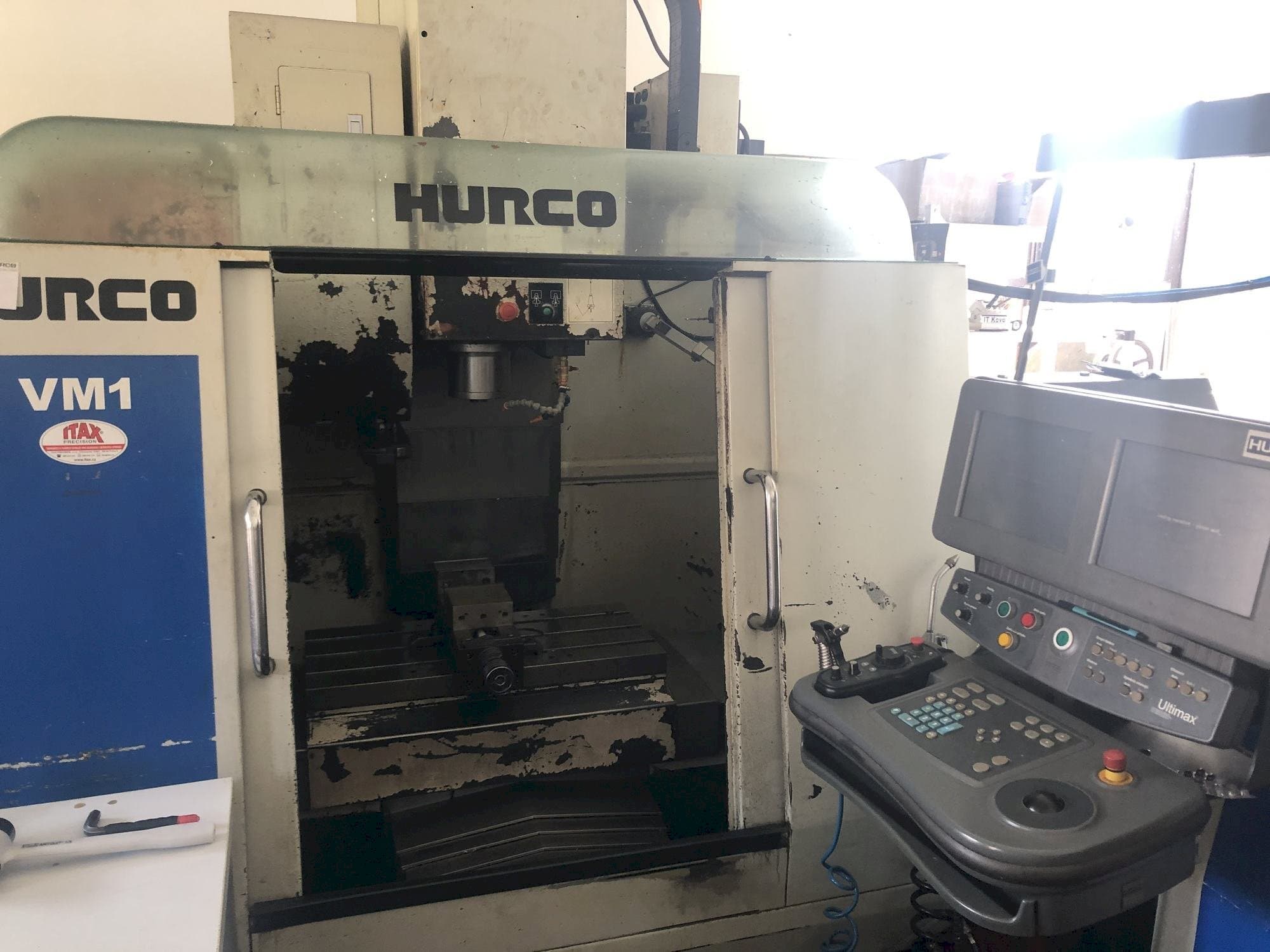

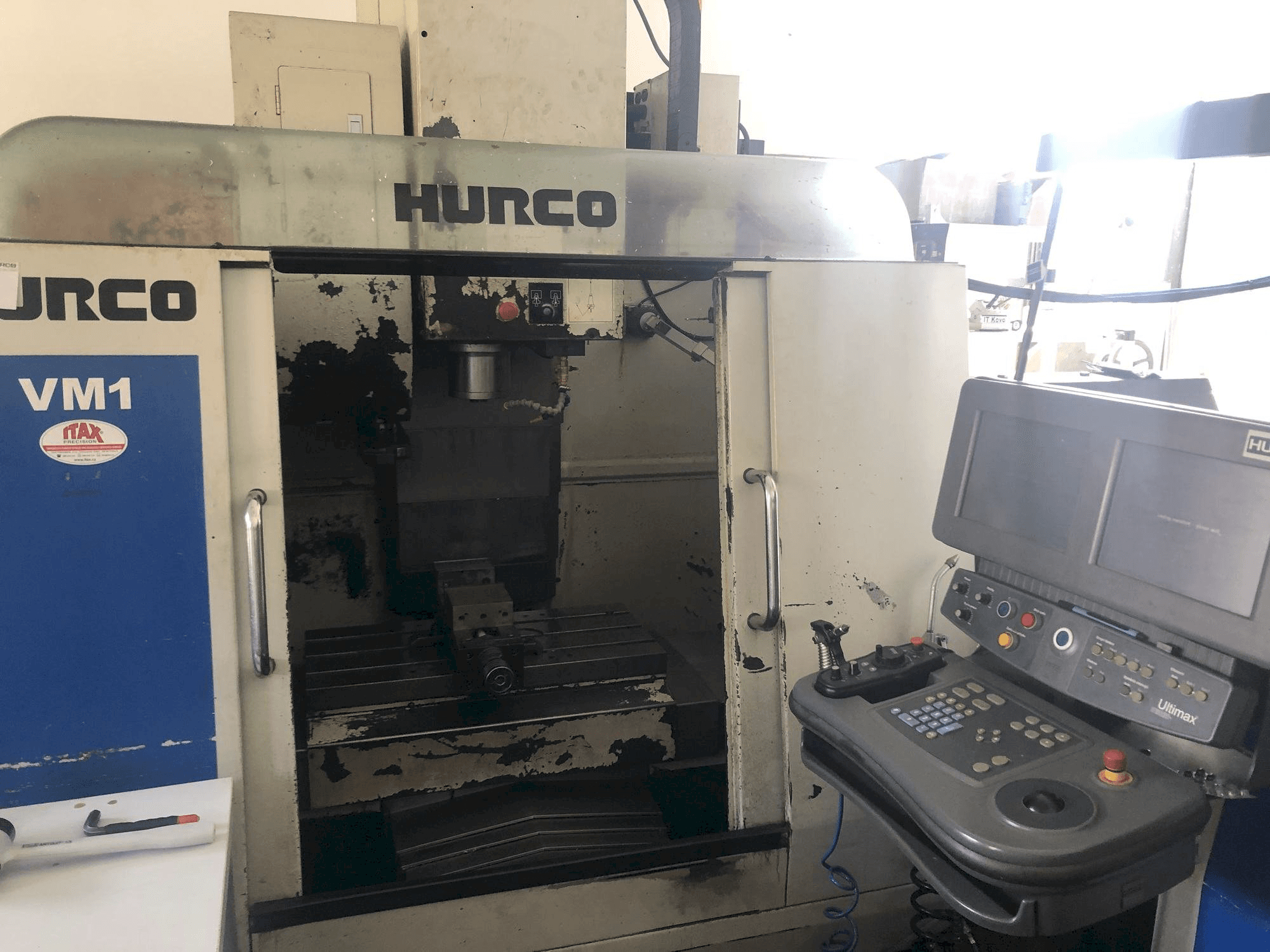

This Hurco VM 1 Vertical Machining Center was built in Taiwan in 2006 and has been operative for 16610 hours. This machine performs with a spindle speed range up to 10000 rpm.
Overview
- brand: Hurco
- year: 2006
- MODEL: VM 1
- production hours: 16610
- application type: Turning
- Location: Czech Republic
- machine type: Vertical Turning Machine
- availability: Sold
- control unit brand: Ultimax
Technical Information - Hurco VM 1
Control Unit
- Brand: Ultimax
- Model: 2.37.03e
Main drive
- Number of spindles: 1
- Spindle speed range: 10000 1/MIN
- Number of axis: 3
Movement
- X-AXIS Movement: 660 mm
- Y-AXIS Movement: 350 mm
- Z-AXIS Movement: 450 mm
Workpiece
- Workpiece weight: 350 kg
Table
- Outer length: 762 mm
- Outer width: 356 mm
Tools
- Slots in storage: 16
- Type of tool holder: 40
Media
- Chip conveyor: Yes
Additional Information
- Technical Machine Benefits:
- - Latest ultimax version 2. 37. 03e
- - Software options (3d form, pockets-islands dxf, fix thread, ramp/helical entry)
- Qualitative Machine Benefits:
- - 2020 - new pc unit (new cards)
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
