HPM - Hemscheid 750-250DE-INJ-HPM-2000-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery

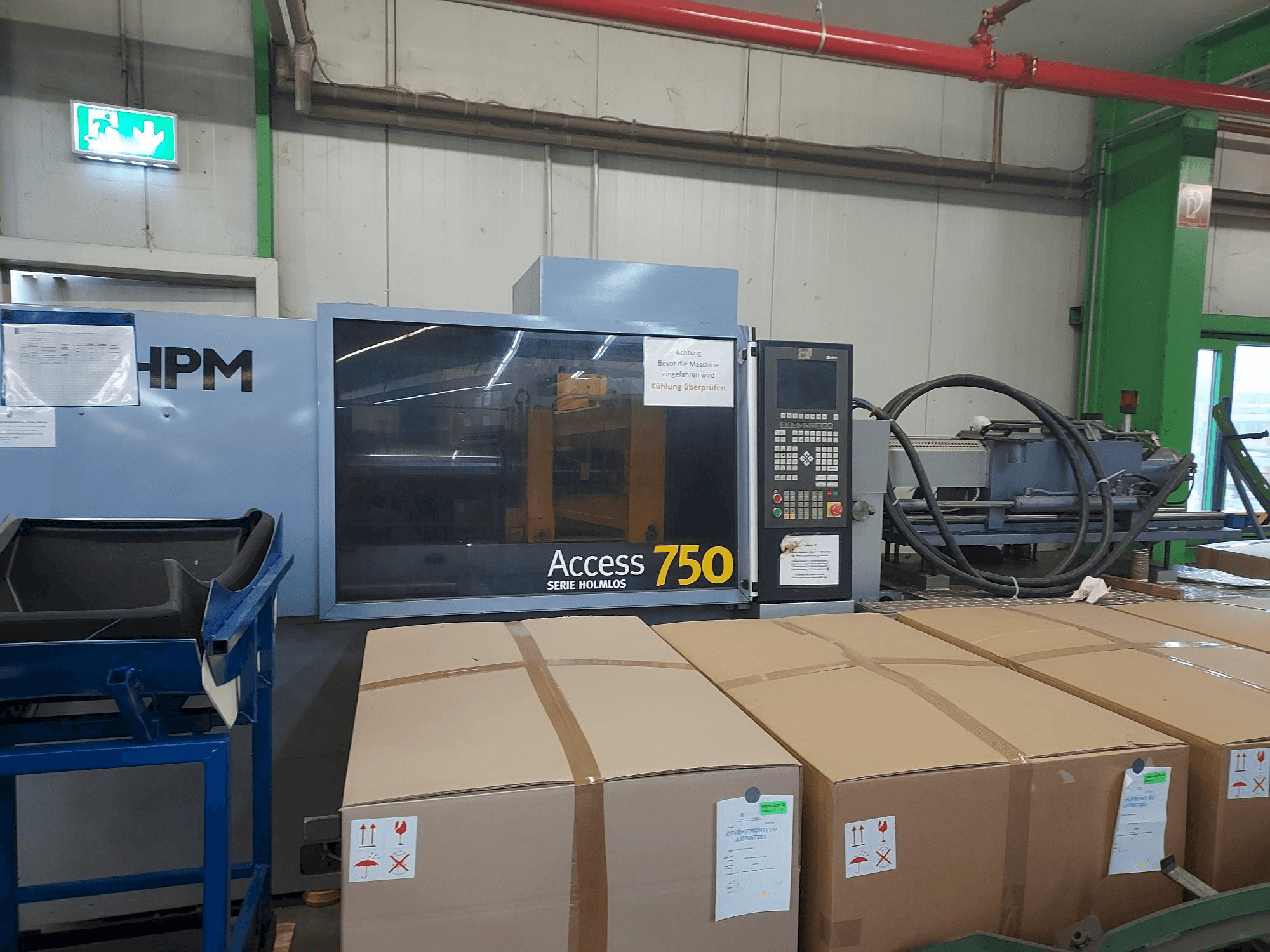

HPM Hemscheid 750-250 Injection moulding machine

Show in original language

This HPM Hemscheid 750-250 Injection moulding machine was manufactured in the year 2000. The machine has a clamping force of 750 kN and a screw diameter of 36 mm.

Overview

brand: HPM
year: 2000
MODEL: Hemscheid 750-250
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
availability: Sold

Technical Information - HPM Hemscheid 750-250

General Data

Measurements width: 5020 mm
Measurements depth: 1300 mm
Measurements height: 2020 mm
Machine weight: 7500 kg

Injection Unit

Screw diameter: 36 mm

Clamping unit

Clamping force: 750 kN
Opening stroke: 500 mm
Mould height min: 250 mm
Mould height max: 750 mm
Size of mold platens: 710 x 530 mm
Ejector stroke: 100 mm
Ejector force for / back: 50 kN

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
