➤ Used HAUSER S3 - 1988 - Grinder For Sale | gindumac.com

Show in original language

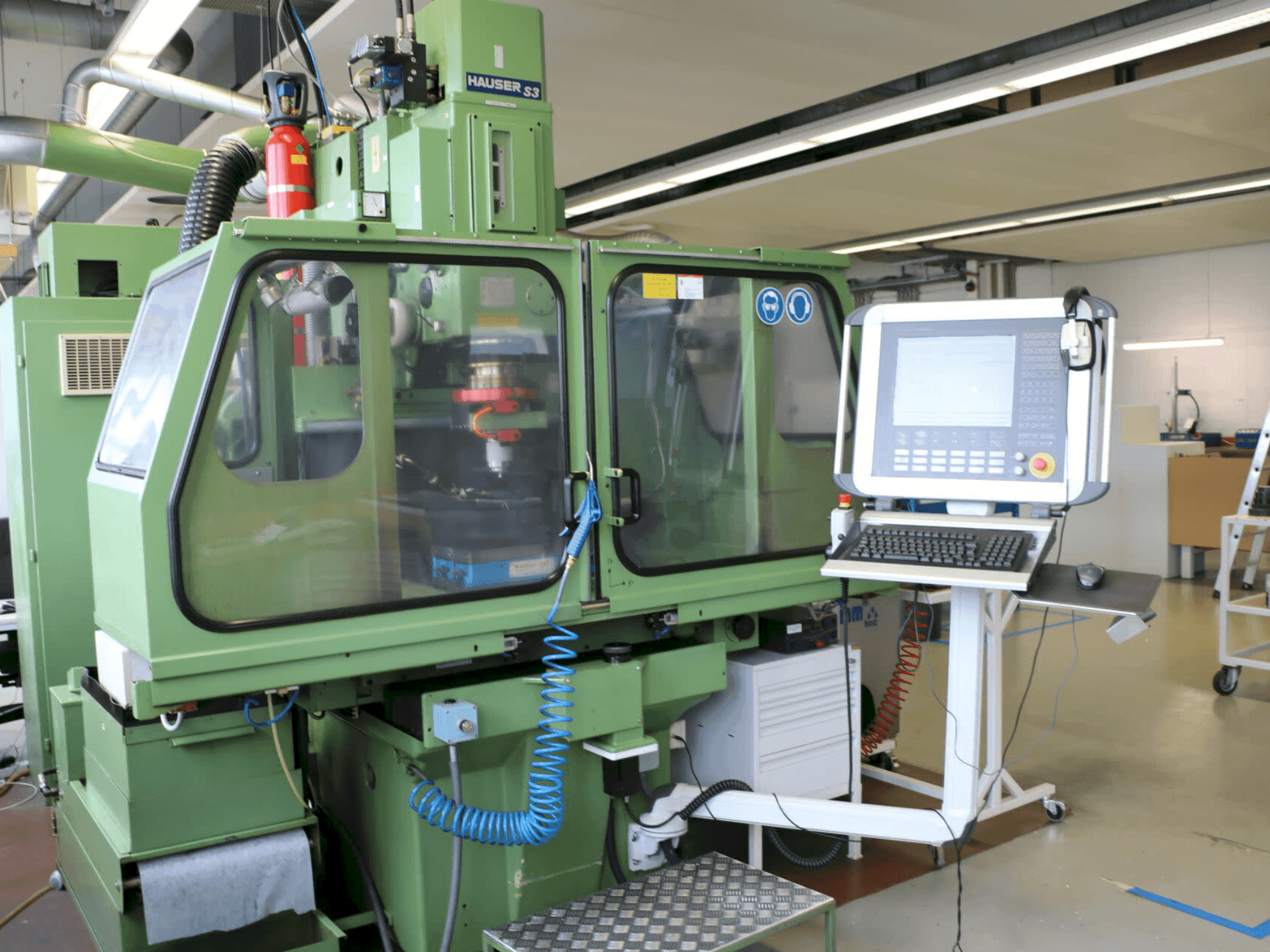

This 3-axis HAUSER S3 grinding machine was manufactured in 1988. Consider the opportunity to buy this HAUSER S3 grinding machine. Contact us for more information.

Overview

brand: HAUSER
year: 1988
MODEL: S3
production hours: 64940
application type: Grinding
Location: Slovenia
machine type: Grinding Machine
availability: Immediately

Technical Information - HAUSER S3

Main drive

Number of axis: 3

Movement

X-AXIS Movement: 400 mm
Y-AXIS Movement: 250 mm
Z-AXIS Movement: 250 mm

Table

Table load: 200 kg

Additional equipment

- Dressing Spindle System: KAISER C 42 DC
- Magnetic Clamping Plate
- Fire Extinguishing Device: Kraft Bauer
- Oil Mist Collector: LTA Industrial Air Cleaning

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Feed rates: x and y: 0 to 1800 mm/min w: 0 to 3000 mm/min
- - Planetary rotation: stepless 5 to 300 rpm
- - Stroke speed of grinding spindle sleeve with quick stroke: 0. 5 to 12000 mm/min
- - Stroke of grinding spindle sleeve: 110 mm
- - Diameter of grinding spindle sleeve: 100 mm
- - Table dimensions: 600 x 380 mm
- - Grinding spindle speeds with electric motor: 9 to 45000 rpm
- - Grinding spindle speeds with air turbines: up to 100000 and 160000 rpm

Extra information

- Complete Documentation: Hauser and Adcos

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
