ELB - MICROCUT B08DE-GRI-ELB-1994-00001

Name: ELB MICROCUT B08
Brand: ELB
SKU: DE-GRI-ELB-1994-00001
Price: 1356000 INR
Availability: InStock

Rs. 1,356,000

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used ELB MICROCUT B08 - Grinder For Sale | gindumac.com

Show in original language

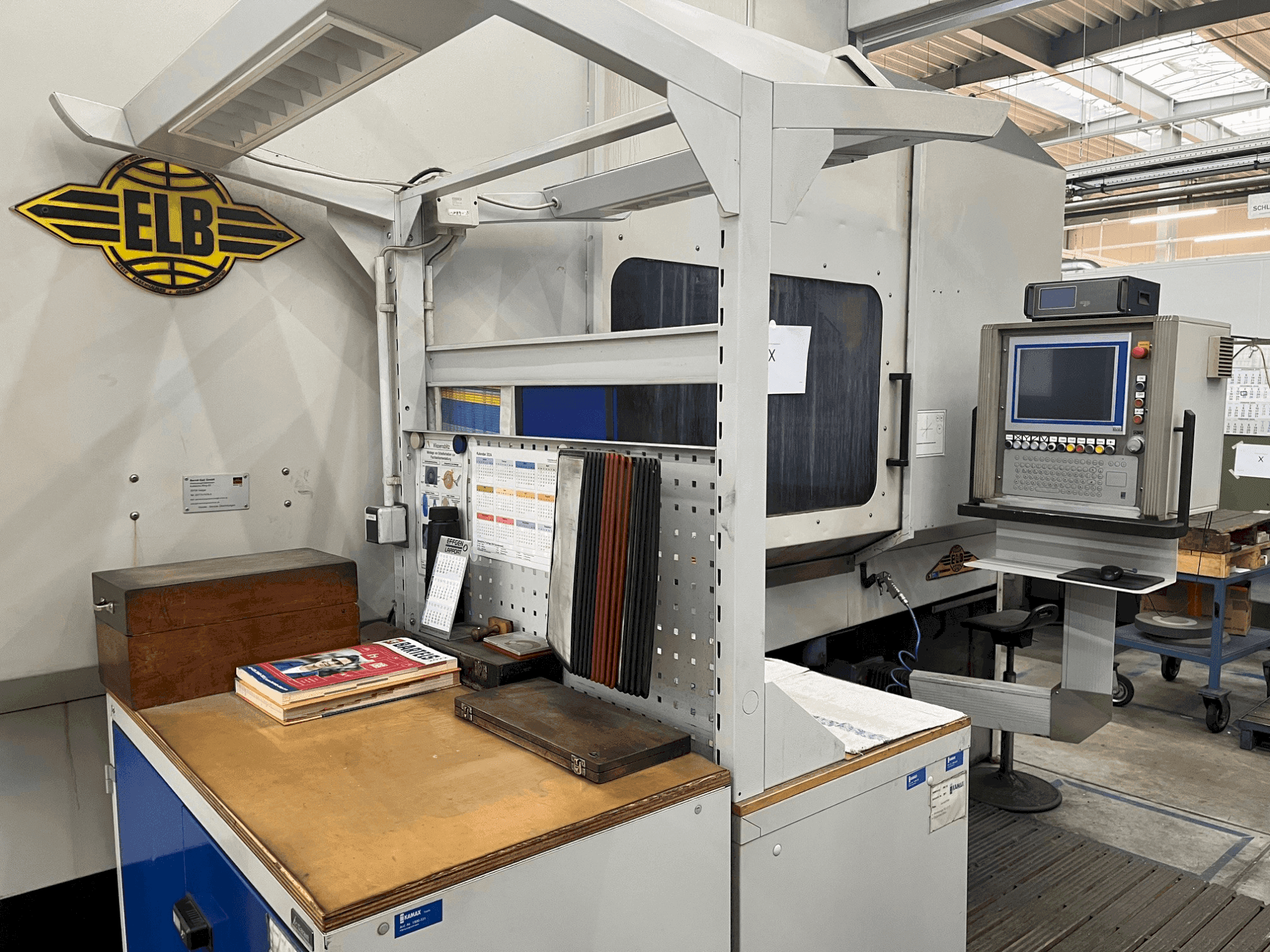

This ELB MICROCUT B08 grinding machine was manufactured in 1994. Consider the opportunity to buy this ELB MICROCUT B08 grinding machine. Contact us for more information.

Overview

brand: ELB
year: 1994
MODEL: MICROCUT B08
application type: Grinding
Location: Germany
machine type: Grinding Machine
availability: Immediately
control unit brand: Schleicher

Technical Information - ELB MICROCUT B08

General Data

Measurements width: 4450 mm
Measurements depth: 4500 mm
Measurements height: 2650 mm

Control Unit

Brand: Schleicher

Main drive

Spindle speed range: 1500 RPM 1/MIN
Spindle motor power: 60 kW

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Operating voltage: 3x400 v /frequency: 50 hz / total power supply: 83 kw
- - Max. Fuse protection: 100 a
- - Control voltage i: 230 vac / control voltage ii: 24 vdc
- - Wiring diagram no: e40045
- - Work table: material: meehanite (cast iron), surface: plastic-coated, clamping area: 1580 x 400 mm, t-slots: 3 slots, 16 mm
- - Grinding wheel diameter: maximum: 550 mm
- - X-axis: table longitudinal movement /y-axis: vertical adjustment of the grinding wheel/ z-axis: cross movement
- - Adjustment for the machine in the protective enclosure
- - Control panel: coating: ral 1015, ergonomically designed
Qualitative Machine Benefits:
- - Technical machine benefits: machine base frame micro granite for excellent damping properties and outstanding thermal behavior.
- - Qualitative machine benefits: high-precision bearings of class p2 for grinding units.

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
