HAITAIN Zhafir 410 Injection Moulding Machine

Show in original language

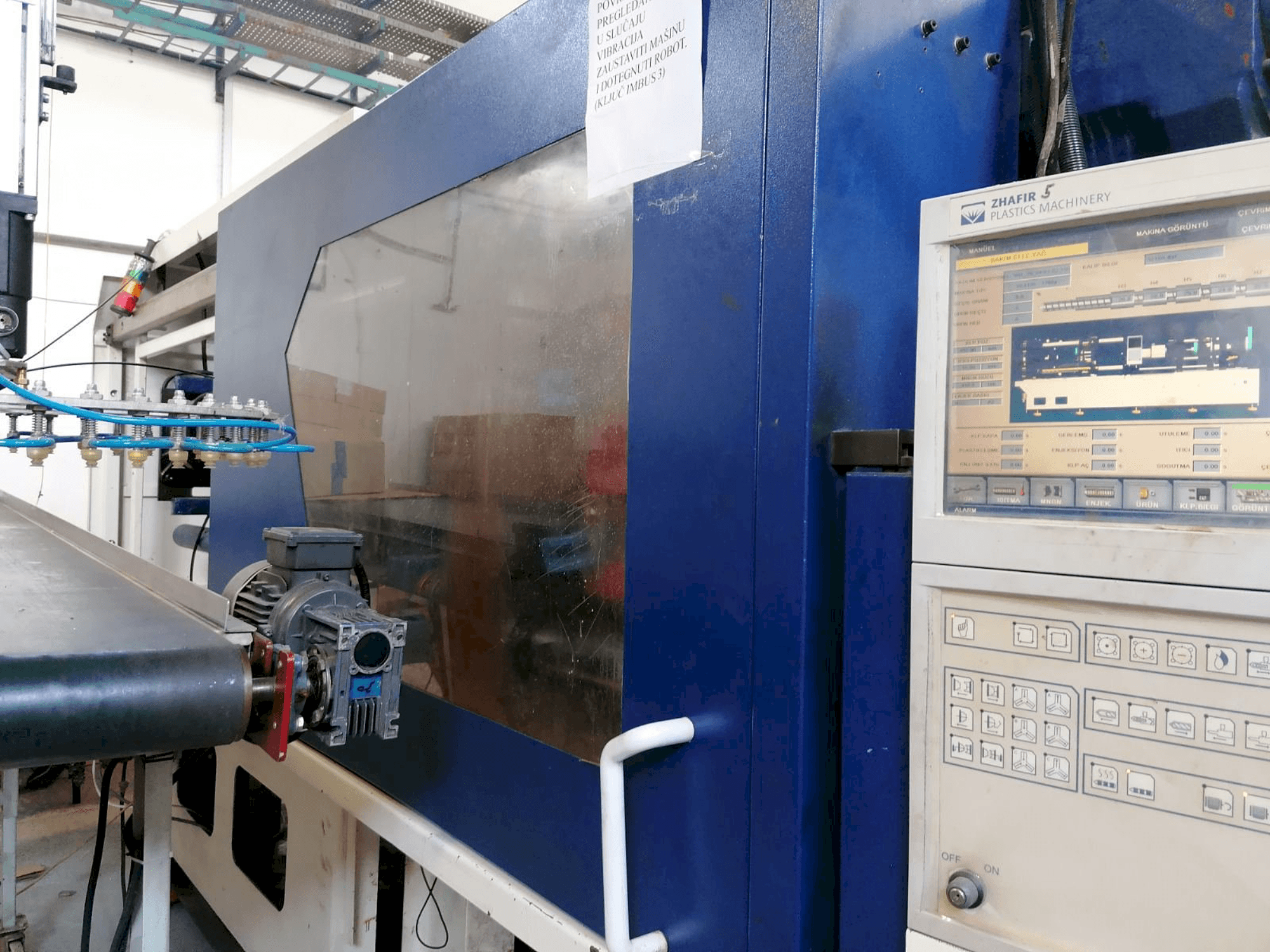

This HAITAIN Zhafir 410 Injection Moulding Machine was manufactured in the year 2013. This reliable machine can perform with a clamping force of 4100 kN and a screw diameter of 60 mm. It includes a Wittman robot, and a conveyor.

Overview

brand: HAITIAN
year: 2013
MODEL: Zhafir 410
application type: Injection Moulding
Location: Serbia
machine type: Electrical Injection Moulding Machine
availability: Sold

Technical Information - HAITIAN Zhafir 410

General Data

Measurements width: 7660 mm
Measurements depth: 2150 mm
Measurements height: 2670 mm

Injection Unit

Screw diameter: 60 mm
Shot weight: 792 g (PS)
Stroke volume: 792 CM³
Injection pressure: 230 Mpa BAR
Screw speed: 2250 rpm
Nozzle pressure: 54 kN

Clamping unit

Clamping force: 4100 kN
Opening stroke: 660 mm
Distance between bars: 740 x 740 mm
Mould height min: 250 mm
Mould height max: 710 mm
Ejector stroke: 160 mm
Ejector force for / back: 58 kN

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Compact five point toggle system
- - 6 stage speed and pressure adjustment
- - Central lubrication system
- - Parallel mould opening and ejector function
- - 3 modes of injection unit retraction
- - Advanced heating
Qualitative Machine Benefits:
- - Adjustable machine pads
- - Bearing support to hopper movement

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
