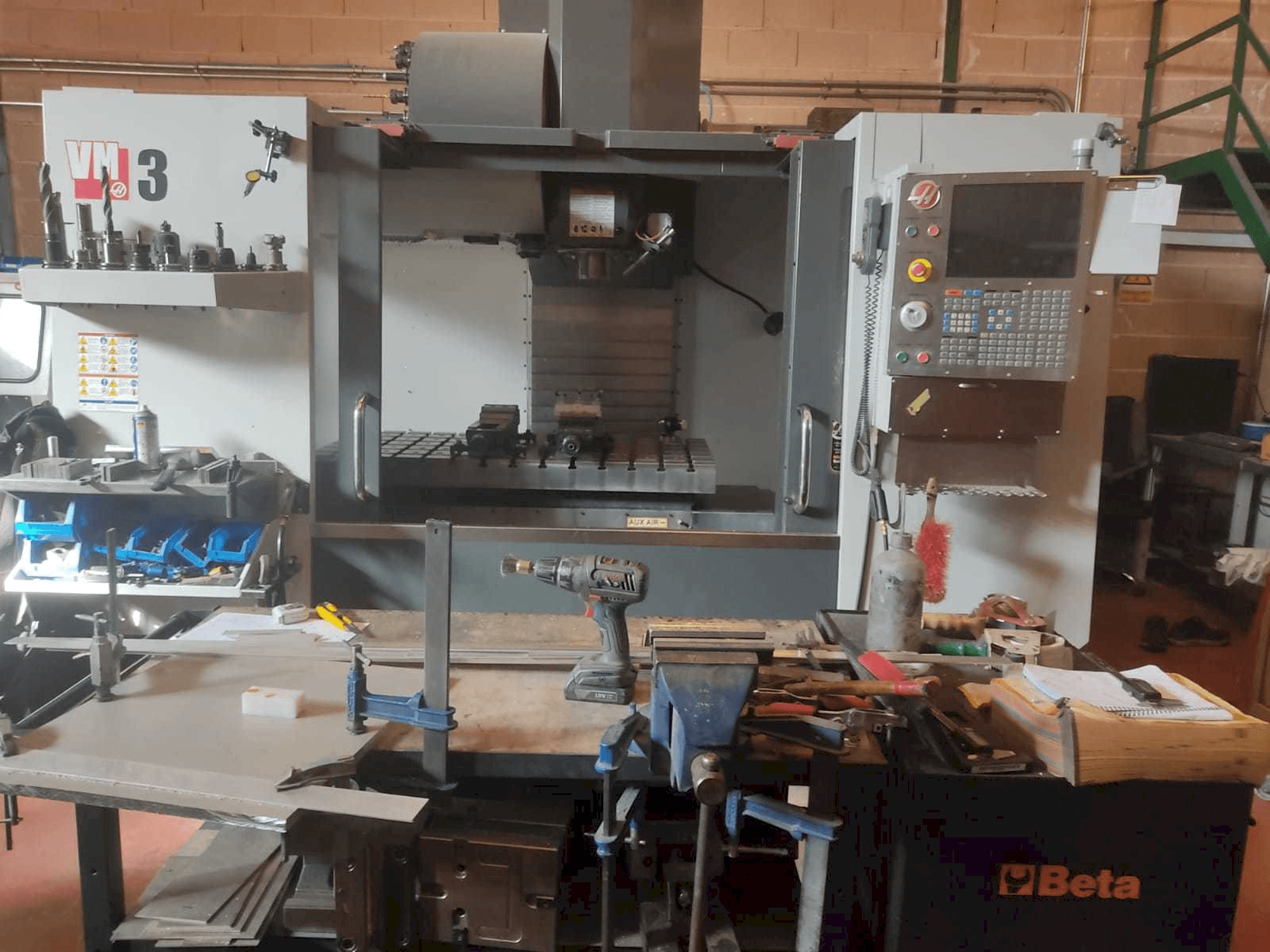

Haas VM-3 Milling machine

Show in original language

This Haas VM-3 Milling machine was manufactured in 2015 in the United States and has been on for 1194 hours, of which 188 are cutting hours. It is equipped with a HAAS control unit and has 3 axis. The machine has a spindle speed of 15000 rpm, is in very good condition and well maintained.

Overview

brand: HAAS
year: 2015
MODEL: VM-3
production hours: 1194
application type: Milling
Location: Spain
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HAAS

Technical Information - HAAS VM-3

General Data

Measurements width: 3970 mm
Measurements depth: 2600 mm
Measurements height: 2670 mm

Control Unit

Brand: HAAS

Main drive

Number of spindles: 1
Spindle speed range: 15000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 1016 mm
Y-AXIS Movement: 660 mm
Z-AXIS Movement: 635 mm

Table

Outer length: 1372 mm
Outer width: 610 mm

Tools

Slots in storage: 24+1
Max weight: 5,4 kg
Max tool diameter: 64 mm
Max tool length: 330 mm
Type of tool holder: BT40

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Expanded memory
- - High speed machining
- - Rigid threading
- - Cooling system through the spindle
- - Renishaw intuitive probing
Qualitative Machine Benefits:
- - Very good condition
- - Very few hours

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
