Used Lathe HAAS SL-30TCE - 2004 - for sale | gindumac.com

Show in original language

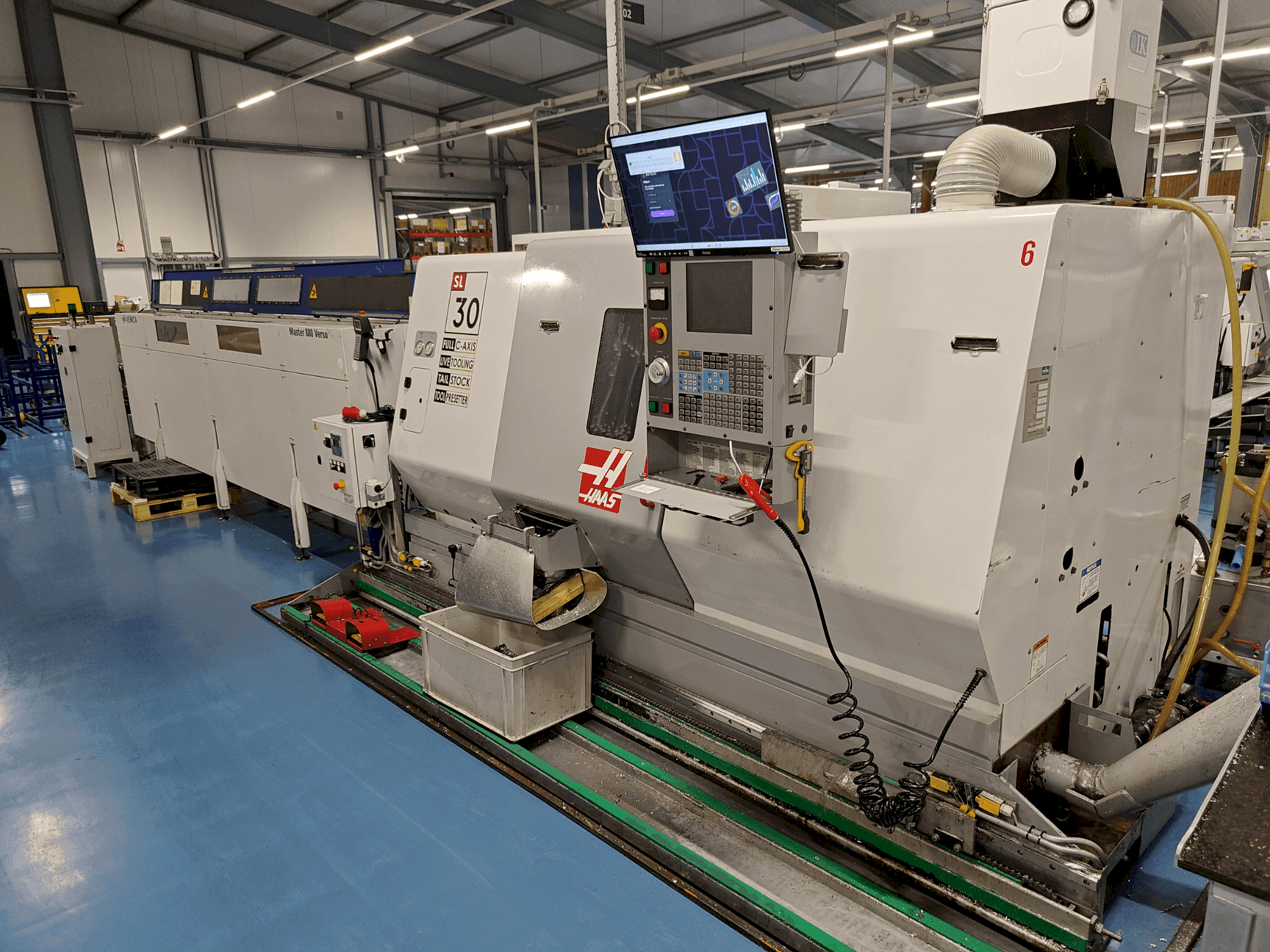

This 6-Axis lathe was manufactured in 2004 and features a HAAS SL-30TCE model. With a robust 12-position tool turret and 254mm chuck, it offers precision in turning with a maximum diameter of 432mm and length of 864mm. Boasting rapid traverse on X and Z axes at 18m/min, it ensures efficient operations. Equipped with brushless motors and a compact design, it's an optimal choice for machining tasks. Interested in optimizing your workshop? Inquire for further details on this HAAS SL-30TCE lathe.

Overview

brand: HAAS
year: 2004
MODEL: SL-30TCE
application type: Turning
Location: Netherlands
machine type: Horizontal Turning Machine
availability: Immediately

Technical Information - HAAS SL-30TCE

General Data

Measurements width: 1956 mm
Measurements depth: 3797 mm
Measurements height: 1880 mm
Machine weight: 7258 kg

Main drive

Number of spindles: 1
Spindle speed range: 3400 1/MIN
Spindle motor power: 22 kW
Number of axis: 3

Movement

X-AXIS Movement: 287 mm
X-AXIS Feed Force: 17793 N
X-AXIS Rapid traverse: 18 m/min
Z-AXIS Movement: 864 mm
Z-AXIS Feed Force: 27579 N
Z-AXIS Rapid traverse: 18 m/min

Turret

Number of turrets: 1
Tool taper: VDI 40

Tools

Number of stations: 12

Media

Chip conveyor: Yes

Additional equipment

- Automatic lubrication system
- Load Monitor

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Maximum turning length 864 mm
- - Maximum turning diameter 432 mm
- - 254 mm chuck
- - Cooling system
- - Complete enclosure
- - 5 free m functions
- - Measuring system for chisel setting
- - Rigid tapping
- - Brushless motors
- - 1 mb memory // transformer // packaging // usb port in control
Qualitative Machine Benefits:
- - 'visual quick code' programming system

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
