HAAS VF-6/40 vertical machining machine

Show in original language

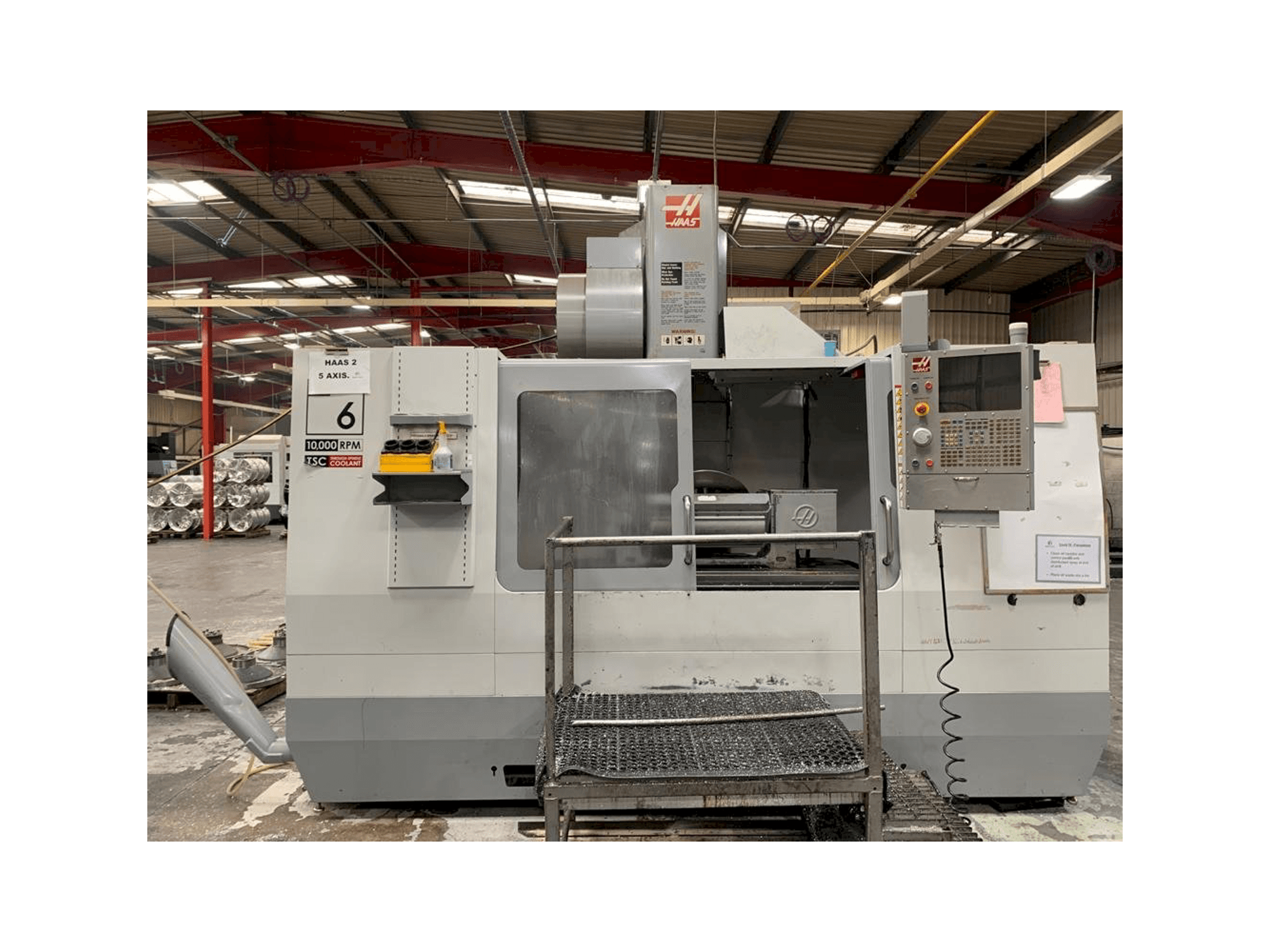

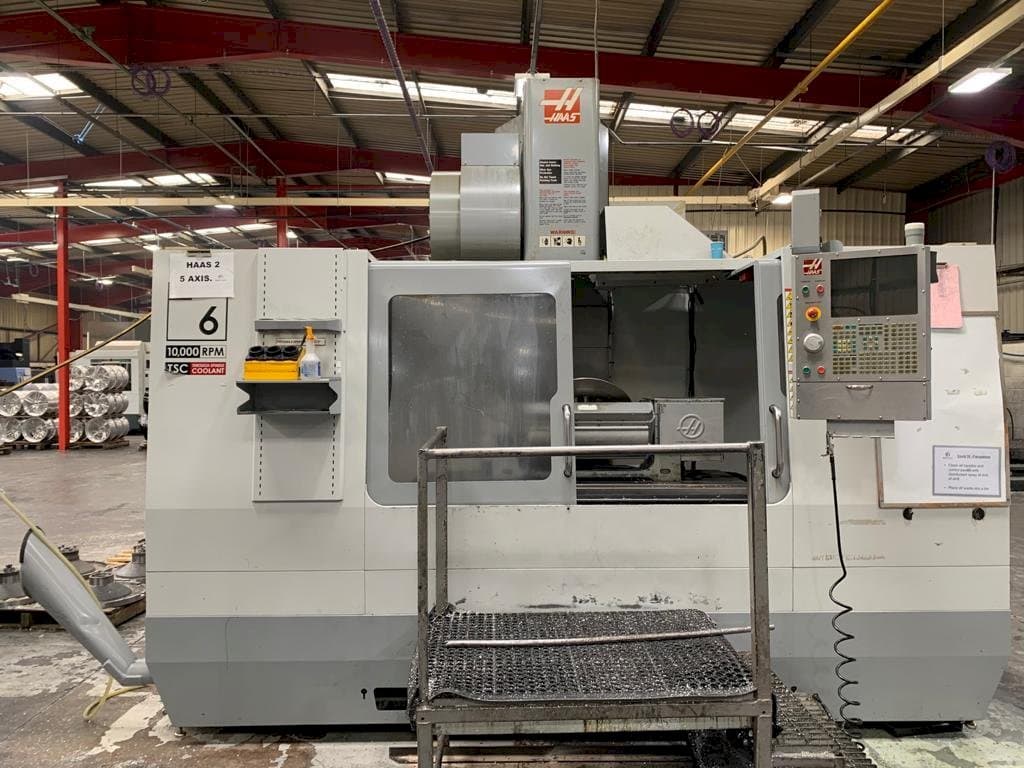

This HAAS VF-6/40 vertical machining machine was manufactured in 2008 in the United States. The 5 axis machine is operated through a Haas control unit. The machine has a spindle speed up to 10000 rpm. It is in good conditions .

Overview

brand: HAAS
year: 2008
MODEL: VF-6/40
application type: Milling
Location: United Kingdom
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HAAS

Technical Information - HAAS VF-6/40

General Data

Measurements width: 3962 mm
Measurements depth: 3124 mm
Measurements height: 3150 mm
Machine weight: 9526 kg

Control Unit

Brand: HAAS

Main drive

Spindle speed range: 10000 1/MIN
Spindle motor power: 22.4 kW

Movement

X-AXIS Movement: 1626 mm
Y-AXIS Movement: 813 mm
Z-AXIS Movement: 762 mm

Workpiece

Workpiece weight: 1814 kg

Table

Outer length: 1626 mm
Outer width: 711 mm
TSlots size: 5

Tools

Slots in storage: 24
Type of tool holder: BT 40

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 5 axis table trt 210
- - Haas tr210 2 axis trunnion
- - Spindle nose to table 102-864 mm
- - Through spindle coolant
- - Swarf auger
- - Programmable coolant nozzle
Qualitative Machine Benefits:
- - Good condition
- - Possible to buy without the table tr 210

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
