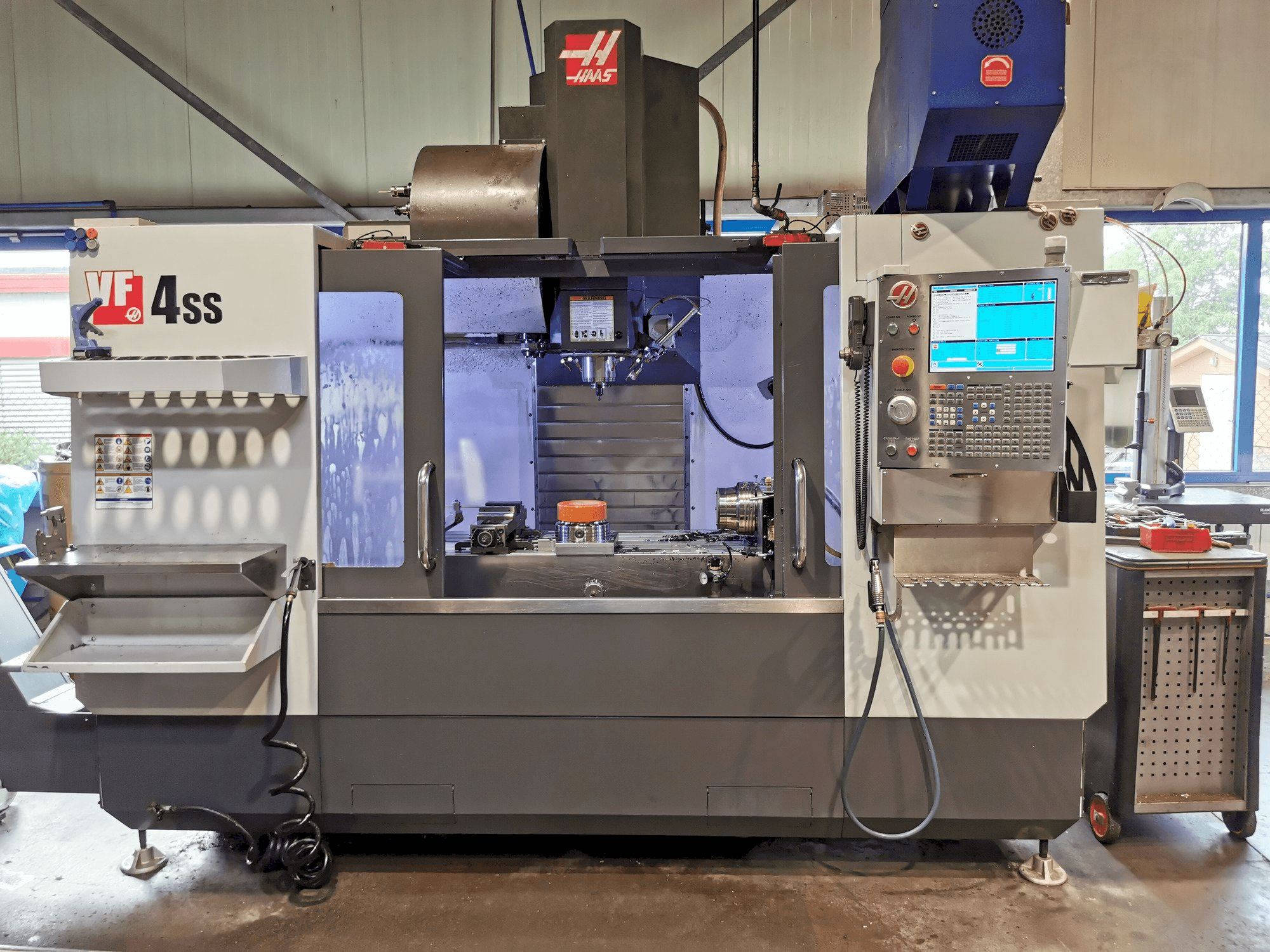

HAAS - VF-4SSDE-MIL-HAA-2015-00001

Additional equipment

• - 4 Axis included / round table

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Coolant supply through the spindle 69 bar
  • - Tool changer with 24+1 magazine positions
  • - Ntuitive wireless touch probe system. Renishaw wireless probe for tool measurement, workpiece measurement and tool breakage control, including macros, spindle orientation and co-ordinate rotation and scaling options. -scaling. Lntuitive programming system 1 pc.
  • - Thanks to the haas intuitive programming system (ips), a machine operator no longer needs g-code knowledge to perform simple machining operations. The ips is a proprietary, conversational operating system that uses an easy-to-read tabbed format and color graphics to guide operators through the steps required to machine workpieces
  • - The dual-insert filter system provides a filtration fineness of 25 microns and removes particles from the coolant before they can be returned to the system by the coolant pump. It is mandatory on machines with coolant flowing through the tool when machining cast iron, die-cast aluminum, wood, phenolic resin or other particulate-generating materials. Multiple chip conveyor system with four since 1 pc translated with www. Deepl. Com/translator (free version)
  • - The multiple chip conveyor system prevents chips from accumulating in the machine enclosure. The four lateral chip conveyors transport the chips to the front edge of the chip tray, where they are then removed at the height of the chip tray by a slat-band chip conveyor
  • - Coolant tank oil skimmer compressed air flow through tool automatic compressed air supply
  • - The automatic compressed air supply directs a constant stream of compressed air to the cutting tool to blow away chips during dry machining. Activated via m-code. Programmable coolant nozzle 1 pc
  • - The programmable coolant nozzle is a multi-position programmable nozzle that automatically directs coolant precisely at the cutting tool. The position of the nozzle is controlled by the part program, eliminating the need for the operator to spend time constantly readjusting the nozzle.
  • - Enables multi-sided machining with a fully integrated haas rotary table or indexing table designed as a 4th axis. Increases productivity and reduces setup time.
• Qualitative Machine Benefits:
  • - Portable control panel with lcd color screen
  • - The haas patented advanced portable control panel features a 7-cm color screen, 11-key keypad, three-knob contouring control, and built-in led indicator light. With this portable control panel, you can set tool and workpiece offsets, move up to 9 axes in stepper mode, view machine position and the program currently running, and more.
  • - Pneumatic tailstock
  • - Tightening bolt haas/din/ct with hole sk4 25 pcs

Payment Terms

• Payment in advance

• Asset Financing
