➤ Used Haas VF-4 DHE - 2007 - Vertical Machining Center

Show in original language

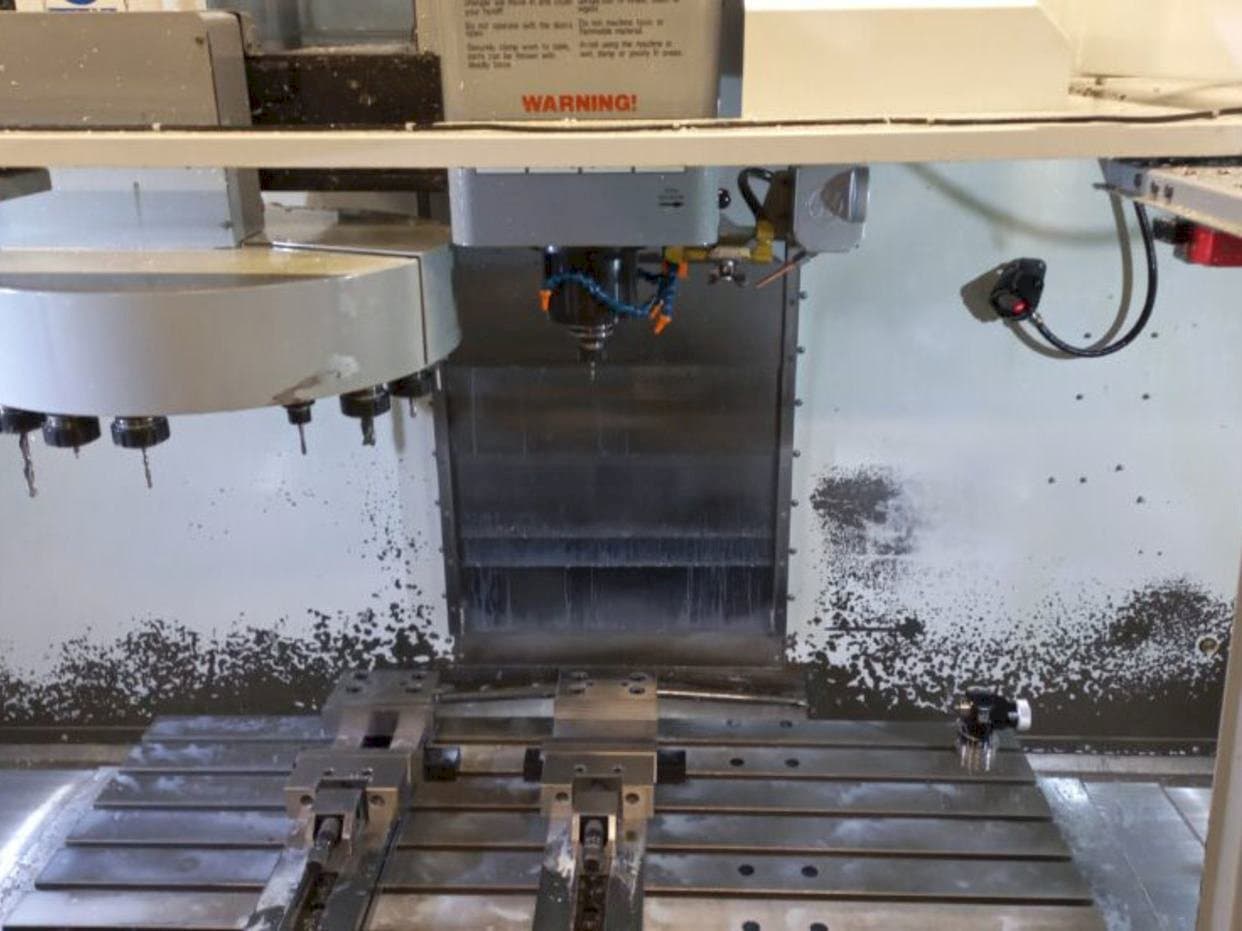

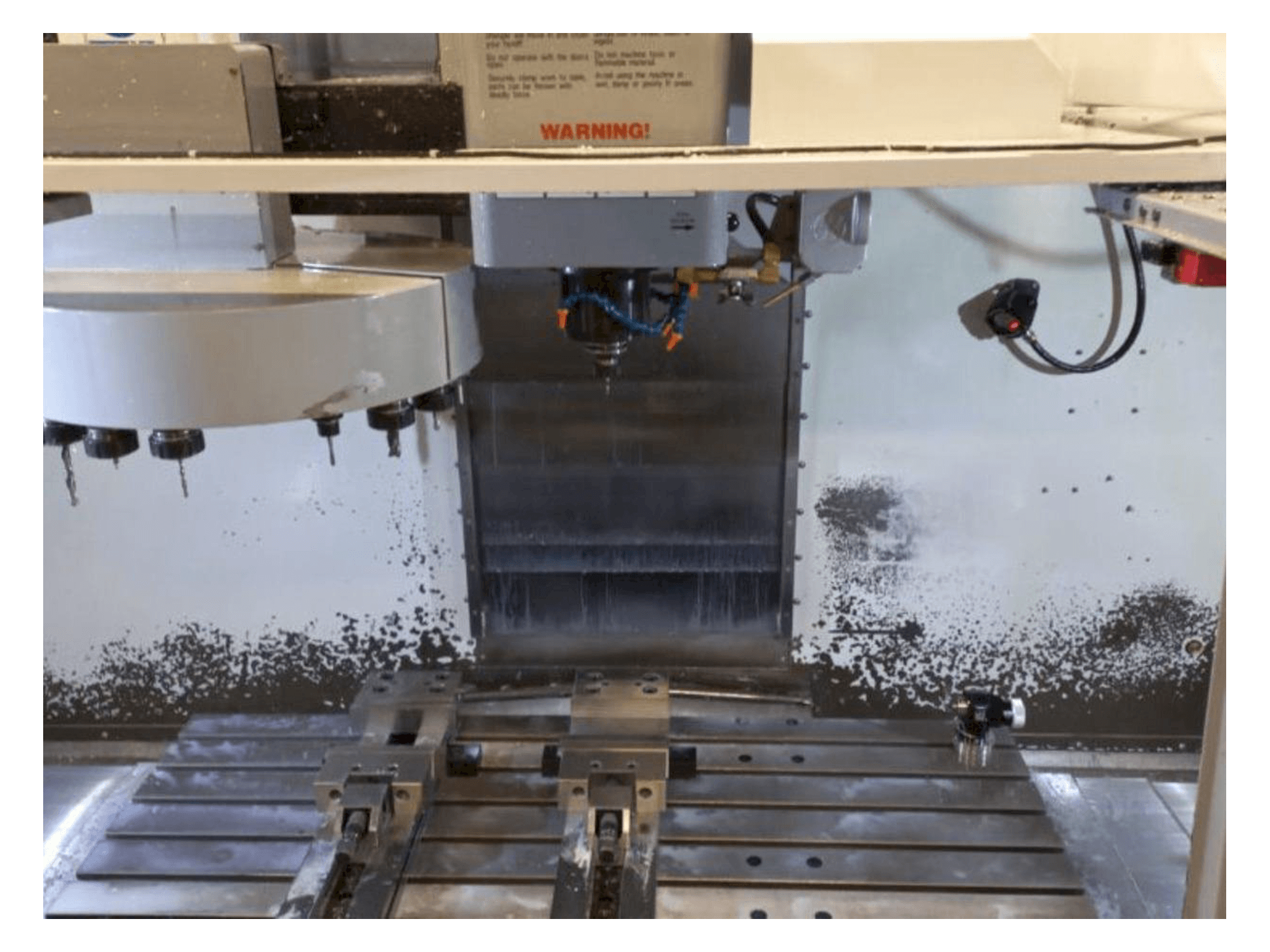

This Haas VF-4 DHE Vertical Machining Center was manufactured in the year 2007 in the United States and has 23682 total hours of which 11663 are cutting hours. It is equipped with a Haas control unit and has 3 axis. The machine has a spindle speed of 15000 rpm, is in good condition and is regularly maintained.

Overview

brand: HAAS
year: 2007
MODEL: VF-4 DHE
production hours: 23682
application type: Milling
Location: Czech Republic
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HAAS

Technical Information - HAAS VF-4 DHE

General Data

Measurements width: 3629 mm
Measurements depth: 2794 mm
Measurements height: 2985 mm
Machine weight: 6300 kg

Control Unit

Brand: HAAS

Main drive

Number of spindles: 1
Spindle speed range: 15000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 1270 mm
Y-AXIS Movement: 508 mm
Z-AXIS Movement: 635 mm

Workpiece

Workpiece weight: 1588 kg

Table

Outer length: 1321 mm
Outer width: 457 mm

Tools

Slots in storage: 20
Type of tool holder: BT 40

Media

Main electronic connection: 360-480 V / 50-60 Hz

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Min-max height under spindle 102-737 mm
- - Spindle motor power 14. 9 kw
Qualitative Machine Benefits:
- - Good condition, regularly maintained

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
