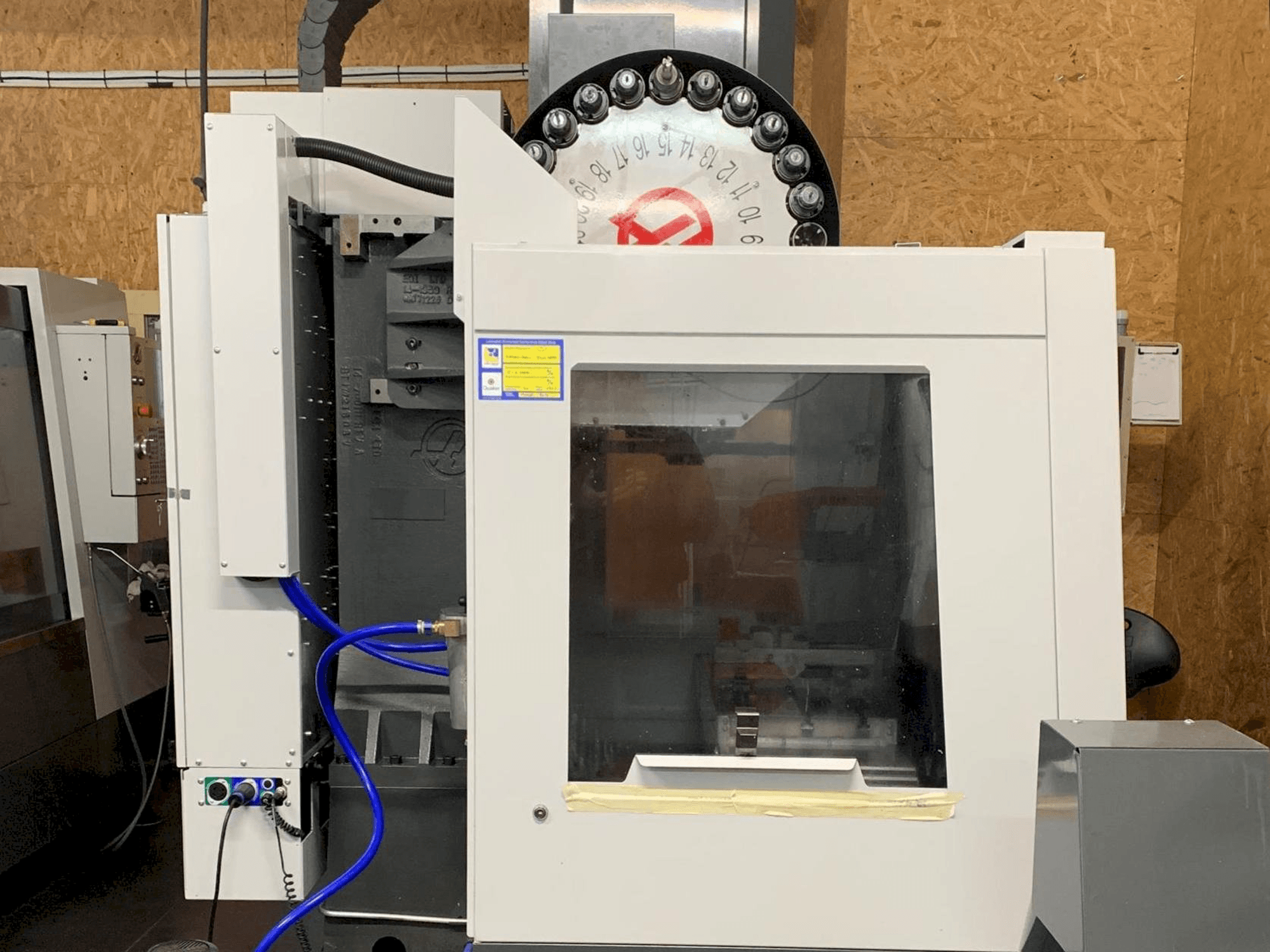

HAAS VF-2EU Vertical Machining Center

Show in original language

This HAAS VF-2EU Vertical Machining Center was made in the United Staes in 2018 and has been operative for only 2690 hours. Operated through a control unit of the same brand, this machine operates with a spindle speed up to 8100 rpm. It presents excellent conditions, as it is almost new.

Overview

brand: HAAS
year: 2018
MODEL: VF-2EU
production hours: 2690
application type: Milling
Location: Slovakia
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HAAS

Technical Information - HAAS VF-2EU

General Data

Machine weight: 3600 kg

Control Unit

Brand: HAAS

Main drive

Number of spindles: 1
Spindle speed range: 8100 1/MIN

Movement

X-AXIS Movement: 762 mm
Y-AXIS Movement: 406 mm
Z-AXIS Movement: 508 mm

Workpiece

Workpiece weight: 1361 kg

Table

Outer length: 914 mm
Outer width: 356 mm
Number of tslots: 3
Distance between: 125 mm

Tools

Slots in storage: 24
Max weight: 5.4 kg
Max tool diameter: 89 mm
Type of tool holder: ISO 40

Additional equipment

- suction with separator

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Wips-r function - wireless intuitive probing system
- - Programmable cooling nozzle
- - Tsc ready - center spindle cooling preset
- - 32gb enhanced memory
- - Ethernet/wifi
- - Rtap-3 - synchronized threading
- - Ct - allows the use of cat tool holders
- - Suction with separator
- - Haas connect - remote monitoring
Qualitative Machine Benefits:
- - Machine like new

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
