➤ Used HAAS VF-1 - 2012 - Vertical Machining center

Show in original language

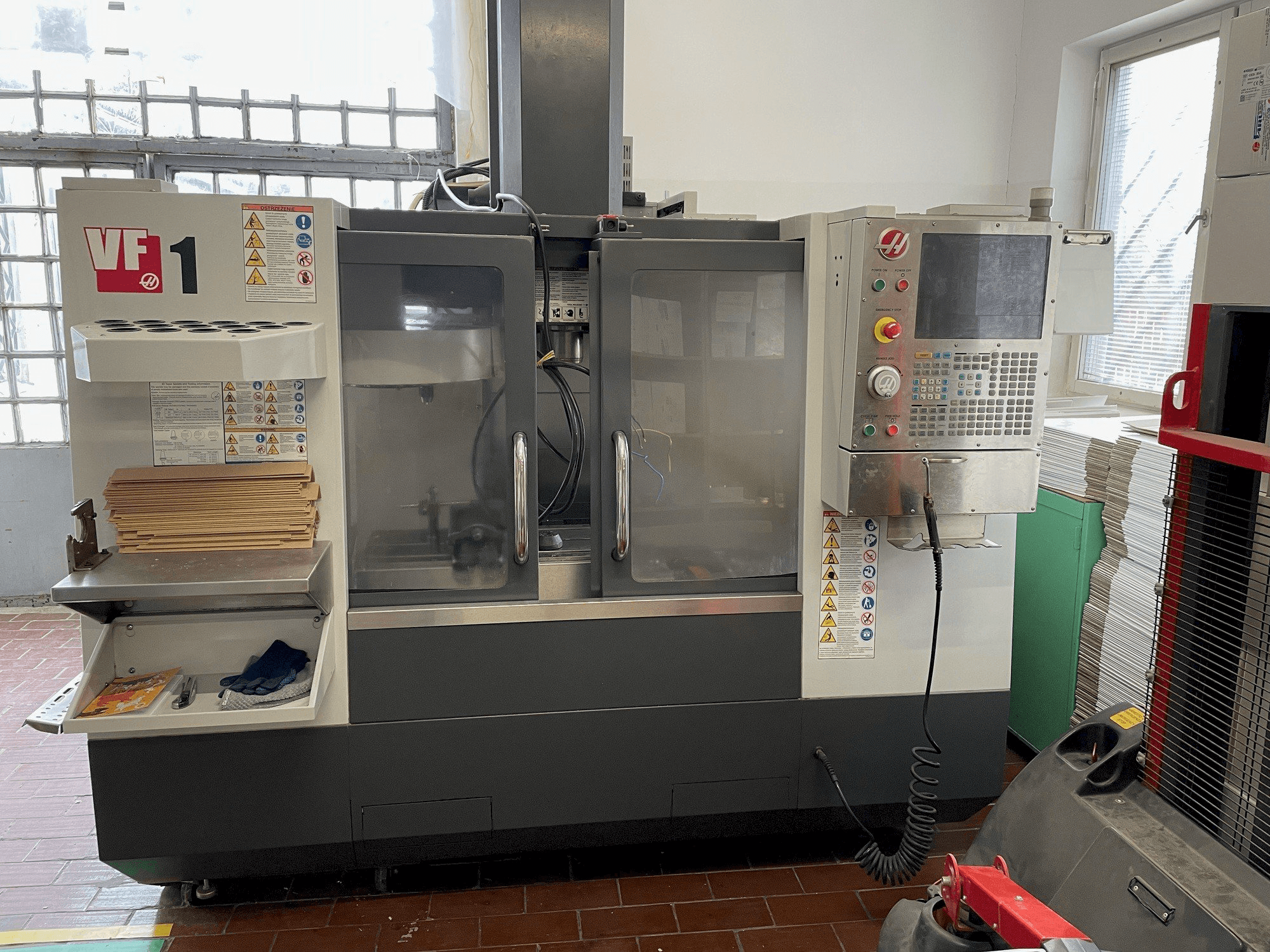

This HAAS VF-1 Vertical Machining center was manufactured in the year 2010 in the United States and has 4000 production hours. It is equipped with a HAAS control unit and has 3 axis. The machine has a spindle speed of 8100 rpm.

Overview

brand: HAAS
year: 2010
MODEL: VF-1
production hours: 4000
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HAAS

Technical Information - HAAS VF-1

General Data

Measurements width: 3175 mm
Measurements depth: 2489 mm
Measurements height: 2667 mm
Machine weight: 3300 kg

Control Unit

Brand: HAAS

Main drive

Spindle speed range: 8100 1/MIN
Spindle motor power: 22.4 kW
Tool taper: BT-40
Number of axis: 3

Movement

X-AXIS Movement: 508 mm
Y-AXIS Movement: 406 mm
Z-AXIS Movement: 508 mm

Table

Outer length: 660 mm
Outer width: 356 mm
Table load: 1361 kg

Tools

Slots in storage: 20
Max weight: 5,4 kg
Max tool diameter: 89 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Tool magazine: carousel type
- - Coolant capacity: 208 l
- - Spindle nose to table (min/max) - 102 mm / 610 mm
Qualitative Machine Benefits:
- - Some tooling included in the offer.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
