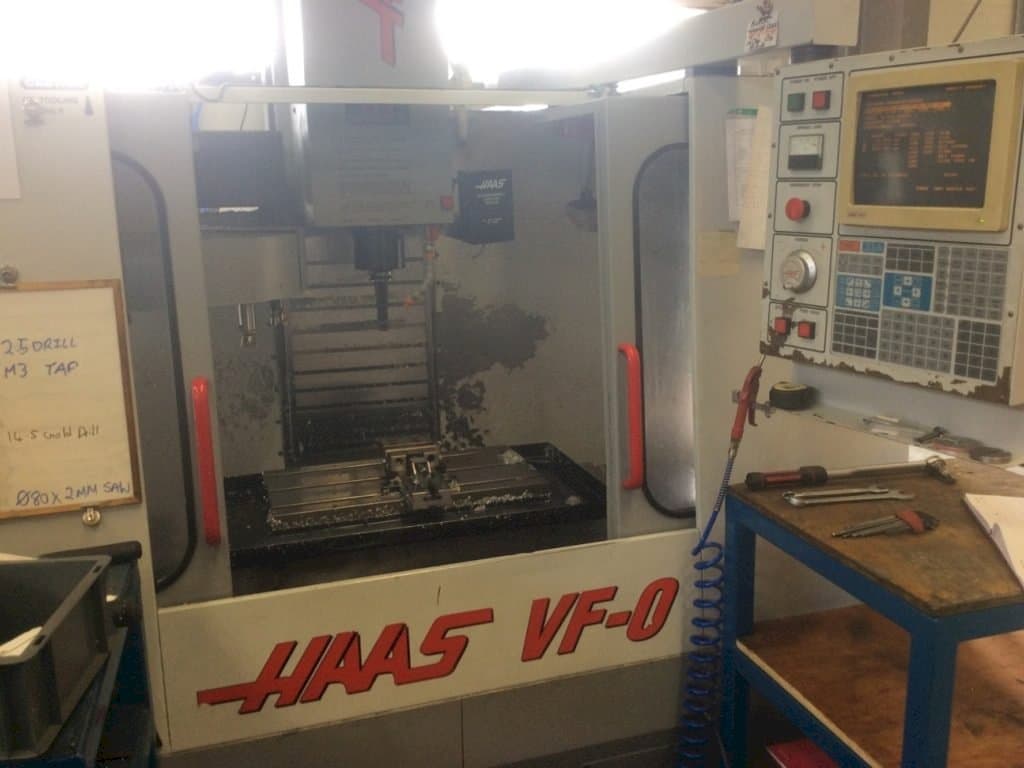

HAAS VF-0 Vertical machining center

Show in original language

This HAAS VF-0 Vertical machining center was made in the United States in 1995. It is equipped with a control unit of the same brand. This 3 axis machine operates with a spindle speed up to 7500 rpm. Includes HAAS 4th axis and a programmable coolant nozzle. Vise not included with the machine. It is in good condition.

Overview

brand: HAAS
year: 1995
MODEL: VF-0
application type: Milling
Location: Ireland
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HAAS

Technical Information - HAAS VF-0

General Data

Measurements width: 2280 mm
Measurements depth: 2235 mm
Measurements height: 2280 mm
Machine weight: 3300 KG

Control Unit

Brand: HAAS
CNC main language: English
CNC language customizable: Yes

Main drive

Number of spindles: 1
Spindle speed range: 7500 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 508 mm
Y-AXIS Movement: 406 mm
Z-AXIS Movement: 508 mm

Workpiece

Workpiece weight: 1362 KG

Table

Outer length: 660 mm
Outer width: 356 mm

Tools

Slots in storage: 20
Max weight: 5.4 KG
Max tool diameter: 91 mm
Max tool length: 330 mm
Type of tool holder: BT40

Media

Main electronic connection: 3 x 480V / 60Hz
Chip conveyor: Yes

Additional equipment

- HAAS 4th Axis & Tailstock
- HAAS Programmable Coolant Nozzle
- Screw Type Swarf Conveyor
- 5 x Tool Holders

Additional Information

Machine history

Material type: Mild steel
End product: Pump parts
Industries: Pump industry

Machine Benefits

Qualitative Machine Benefits:
- - Machine in good condition
- - Vise not included with the machine

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
