➤ Used HAAS UMC-500SS For Sale | gindumac.com

Show in original language

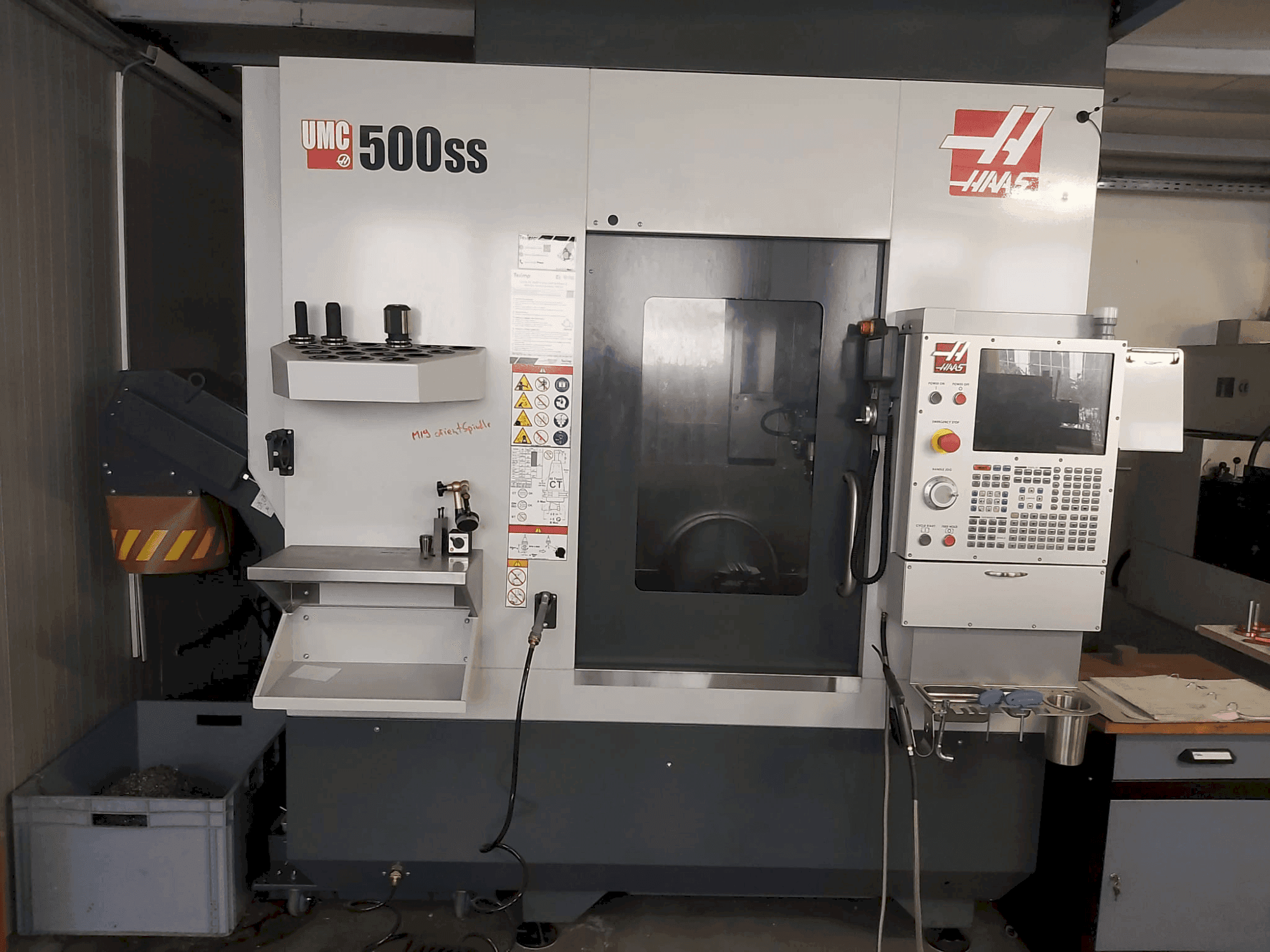

This 5-axis HAAS UMC-500SS universal machining centre was manufactured in 2023. It offers advanced capabilities for complex and precise machining tasks. Consider the opportunity to buy this HAAS UMC-500SS universal machining centre. Contact us for more information.

Overview

brand: HAAS
year: 2023
MODEL: UMC-500SS
application type: Milling
Location: Romania
machine type: Universal Machining Centre
availability: Immediately
control unit brand: HAAS

Technical Information - HAAS UMC-500SS

Control Unit

Brand: HAAS

Main drive

Spindle speed range: 15000 RPM 1/MIN
Spindle motor power: 22.4 kW
Tool taper: ISO40 taper

Media

Chip conveyor: Yes

Additional equipment

- Chip Conveyor: Positioned above coolant tank with auto-reverse function

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Drive system: inline direct-drive
- - High-speed machining (hsm) option: supports feed rates up to 1200 ipm (305 m/min)
- - Tool holders: 18 tool holders with collets and accessories
- - Through-spindle coolant system: allows high-pressure cooling up to 300 psi (21 bar)
- - Haas through-spindle air blast (tab) option: high-pressure air delivery to cutting zone
- - Programmable coolant nozzle: precise cnc-controlled positioning
- - Chip filtration kit: 200-micron filter and tray-style chip collector
- - Workholding kit: includes 130mm self-centering vise & riser and various tool holders and accessories.

Extra information

- This machining center offers advanced features including a 5-axis machining capability, high spindle speed, and integrated cooling and air blast systems, making it ideal for complex machining tasks and high-production environments.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
