HAAS - ST-30TR-TUR-HAA-2015-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

Show in original language

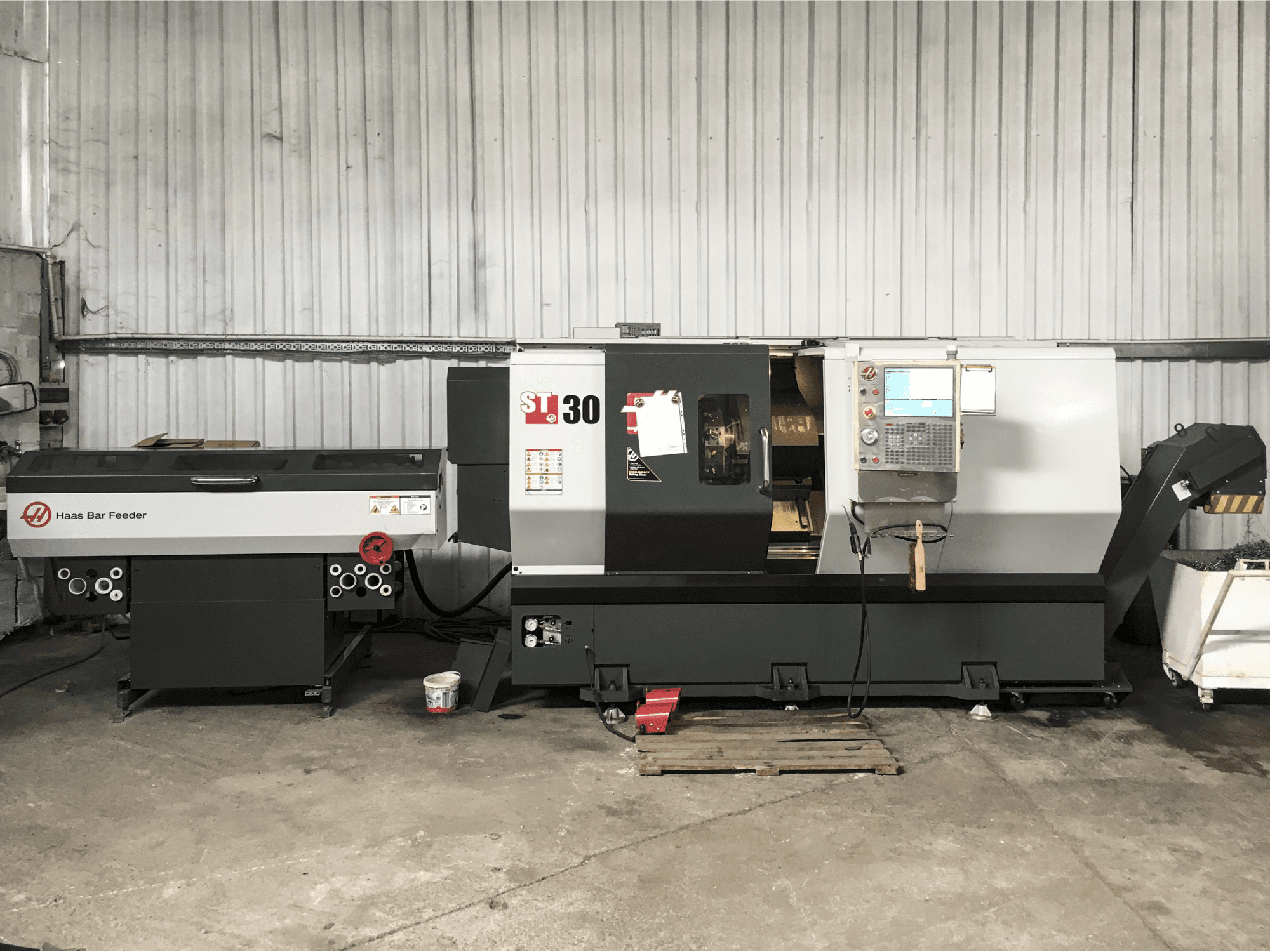

This HAAS ST-30 Lathe from 2015 was manufactured in the United States and has a working record of only 408 production hours since then. This machine, which can be considered as new, is equipped with a HAAS Control unit and has mainly worked with carbon and alloy steel during the past, producing parts for wood processing machinery. This model provides wide setup flexibility, strong rigidity and thermal stability. With the additional HAAS Bar loader included, this system provides a great performance.

Overview

brand: HAAS
year: 2015
MODEL: ST-30
production hours: 408
application type: Turning
Location: Turkey
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: HAAS

Technical Information - HAAS ST-30

General Data

Measurements width: 4521 mm
Measurements depth: 3048 mm
Measurements height: 2108 mm
Machine weight: 6500 kg

Control Unit

Brand: HAAS

Main drive

Number of spindles: 1
Spindle speed range: 3400 1/min
Spindle motor power: 22 kW

Movement

X-AXIS Movement: 318 mm
Z-AXIS Movement: 660 mm

Workpiece

Workpiece drm: 76 mm

Turret

Number of turrets: 1
Number of tool slots: 12

Tools

Max tool diameter: 25 mm

Media

Main electronic connection: 195-260 V / 50 Hz / 3 P
Power consumption: 14 kVA
Air pressure: 6 bar
Chip conveyor: Yes
Internal cooling: Yes

Additional equipment

- HAAS Bar loader

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
