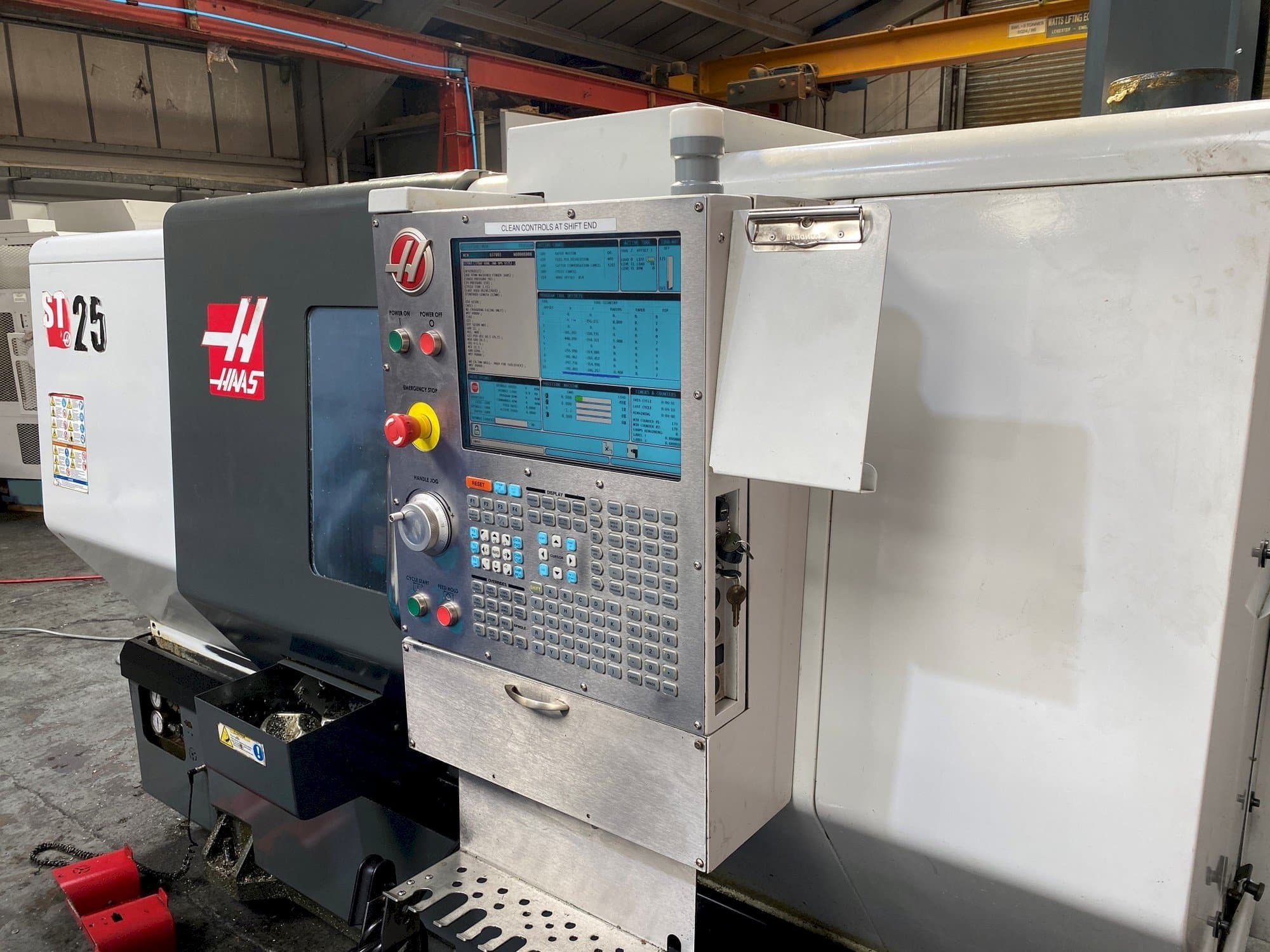

This HAAS ST-25 Lathe was manufactured in the United States in 2014. It is equipped with a control unit of the same brand. This 3 axis machine comes with a spindle speed up to 3400 rpm. Includes a tool setter, parts catcher, tailstock and machine manuals. Very good condition.

Overview

brand: HAAS
year: 2014
MODEL: ST-25
application type: Turning
Location: United Kingdom
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: HAAS

Technical Information - HAAS ST-25

General Data

Measurements width: 4200 mm
Measurements depth: 1900 mm

Control Unit

Brand: HAAS

Main drive

Number of spindles: 1
Spindle speed range: 3400 1/MIN
Spindle motor power: 22.4 kW
Tool taper: A2-6
Number of axis: 3

Movement

X-AXIS Movement: 236 mm
Z-AXIS Movement: 533 mm

Turret

Number of turrets: 1

Tools

Slots in storage: 12

Media

Main electronic connection: 480V / 60Hz
Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Swing over bed: 806 mm
- - Swing over cross-slide: 527 mm
- - Maximum cutting length: 533 mm / diameter: 381 mm
- - Maximum cutting diameter: 381 mm
- - Bar capacity: 76 mm
- - Milling rpm 6000 / 3. 7 kw
- - C-axis: 0. 01 degrees
- - Chuck size: 254 mm
- - Rapid feedrates: 24 m/min
- - Tool setter
Qualitative Machine Benefits:
- - Swarf conveyor
- - Parts catcher
- - Tailstock
- - Tooling
- - Coolant
- - Includes machine manual
- - Very good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
