- ➤ Used HAAS ST-20SSY - 2014 - Lathe For Sale

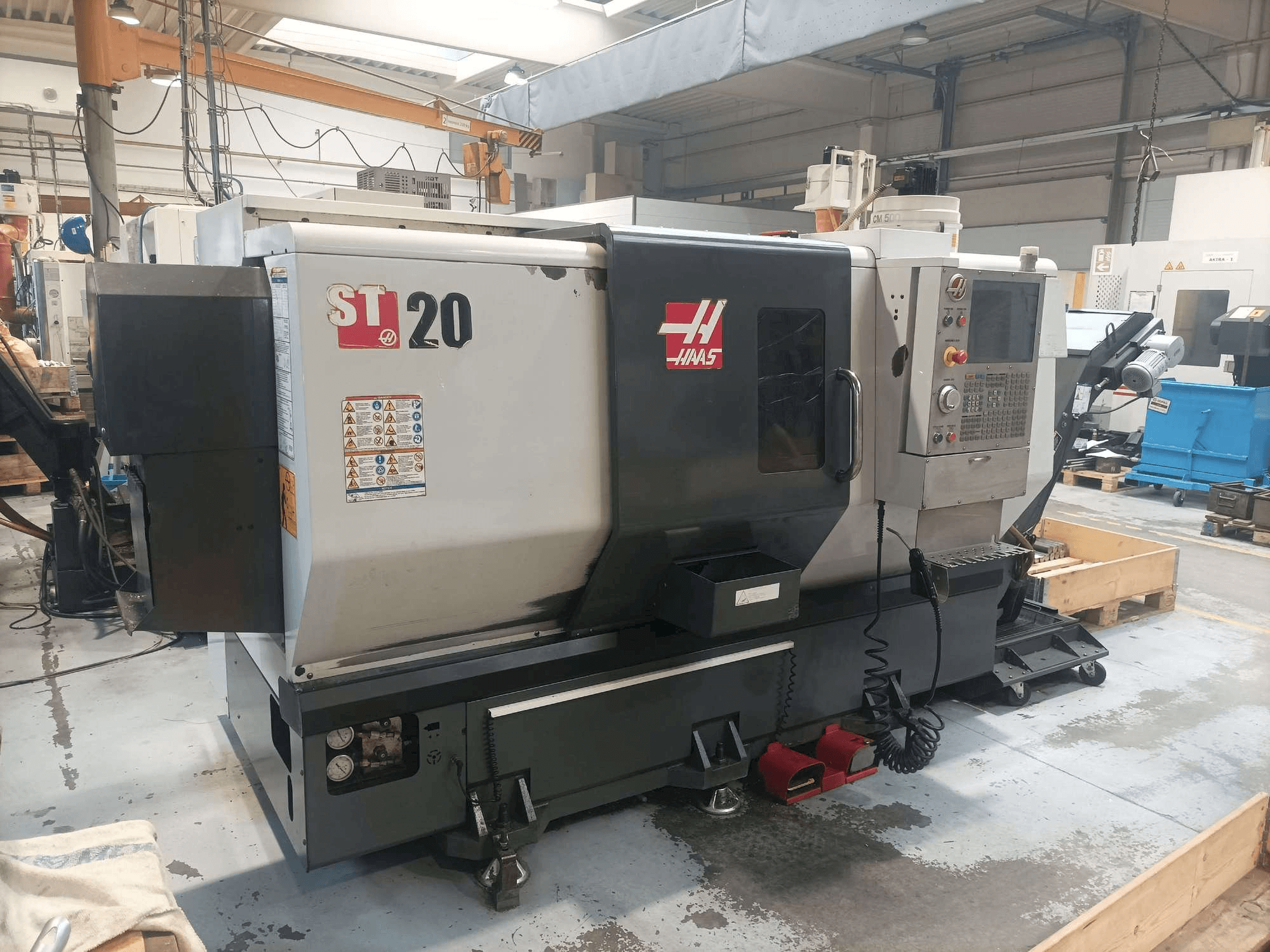

This HAAS ST-20SSY Lathe was manufactured in the year 2014 in the United States. It is equipped with a HAAS control unit and has 4 axis. The machine has a spindle speed of 5000 rpm.
Overview
- brand: HAAS
- year: 2014
- MODEL: ST-20SSY
- application type: Turning
- Location: Czech Republic
- machine type: Turn-Mill Centre
- availability: Sold
- control unit brand: HAAS
Technical Information - HAAS ST-20SSY
General Data
- Measurements width: 3620 mm
- Measurements depth: 2290 mm
- Measurements height: 2340 mm
- Machine weight: 4000 kg
Control Unit
- Brand: HAAS
Main drive
- Number of spindles: 1
- Spindle speed range: 5000 1/MIN
- Number of axis: 4
Movement
- X-AXIS Movement: 213 mm
- Y-AXIS Movement: +-51 mm
- Z-AXIS Movement: 572 mm
Turret
- Number of turrets: 1
Tools
- Slots in storage: 12
Additional Information
- Technical Machine Benefits:
- - Max. Turning dieameter 533 mm
- - Max. Cutting dia. 298 mm
- - Spindle motor power 14. 9 kw
- - Rapid feedrates x/y/z 12/12/24 m/min
- - Milling tools speed 4000 rpm
- - Spindle bore 51 mm
- - Y axis, tailstock
- Qualitative Machine Benefits:
- - Good condition
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
