HAAS - SL-40GB-TUR-HAA-2011-00003

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

Show in original language

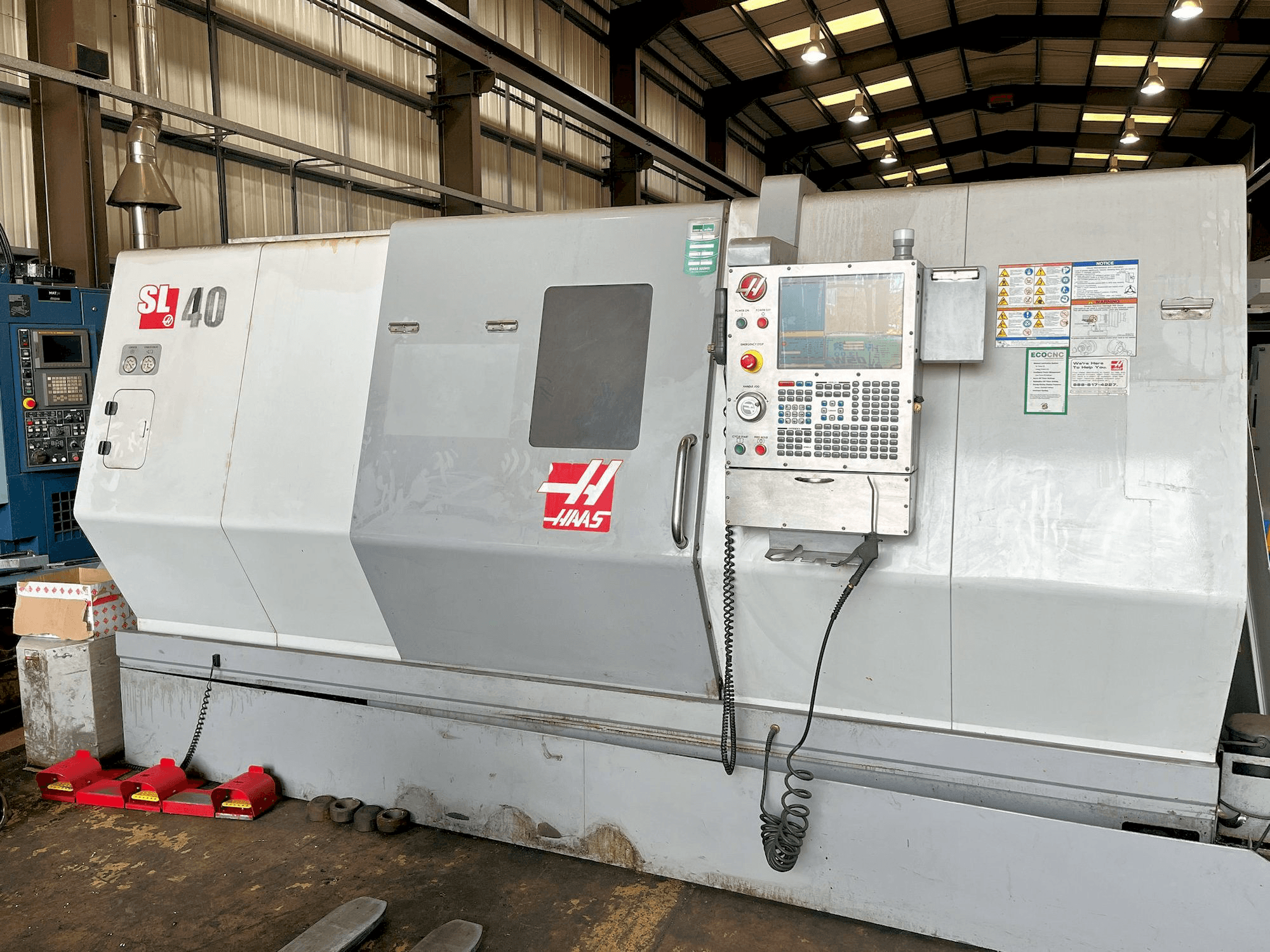

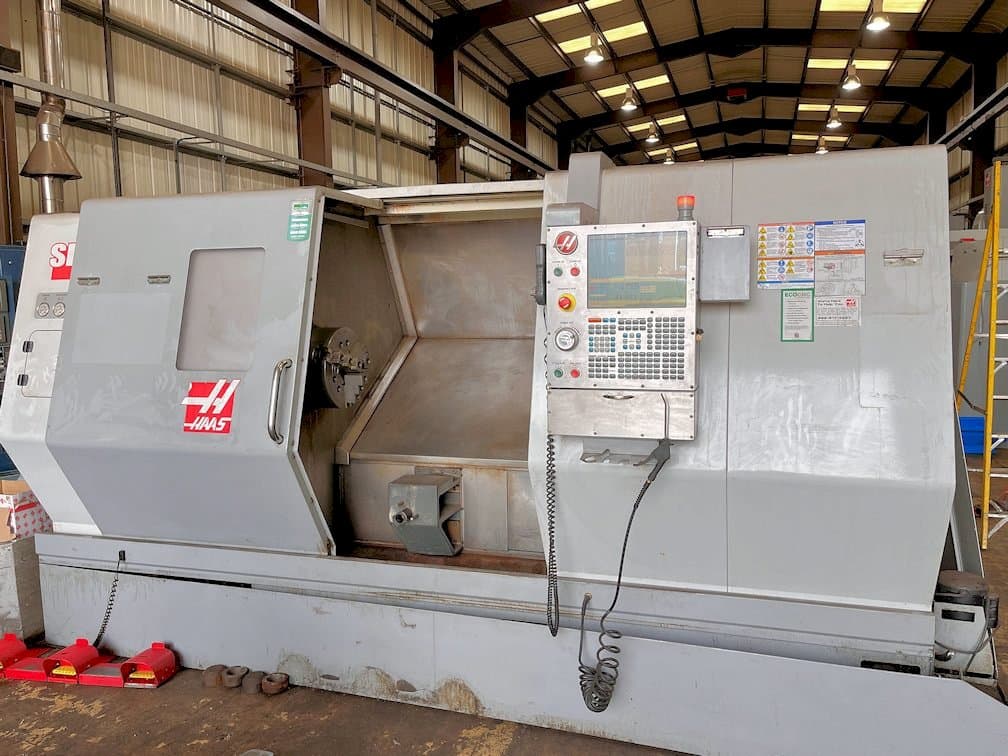

This HAAS SL-40 Lathe machine was made in the United States in 2011. It has 2 axis, 1 spindle and can work with a spindle speed up to 2400 rpm. The machine is equipped with a Haas control unit and presents good working conditions.

Overview

brand: HAAS
year: 2011
MODEL: SL-40
application type: Turning
Location: United Kingdom
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: HAAS

Technical Information - HAAS SL-40

General Data

Measurements width: 3810 mm
Measurements depth: 2337 mm
Measurements height: 2261 mm
Machine weight: 11340 kg

Control Unit

Brand: HAAS

Main drive

Number of spindles: 1
Spindle speed range: 2400 1/MIN
Spindle motor power: 29.8 kW
Number of axis: 2

Movement

X-AXIS Movement: 432 mm
Y-AXIS Movement: 1118 mm

Turret

Number of turrets: 1

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Swing over bed: 1016 mm
- - Swing over cross-slide: 635 mm
- - Maximum cutting diameter: 432 mm
- - Distance between centres: 1295 mm
- - Maximum cutting length: 1118 mm
- - Bar capacity: 102 mm
- - Turret 10 positions
- - Tooling configuration vdi40
- - 3 jaw chuck 15'', coolant, tailstock, swarf conveyor
Qualitative Machine Benefits:
- - Good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
