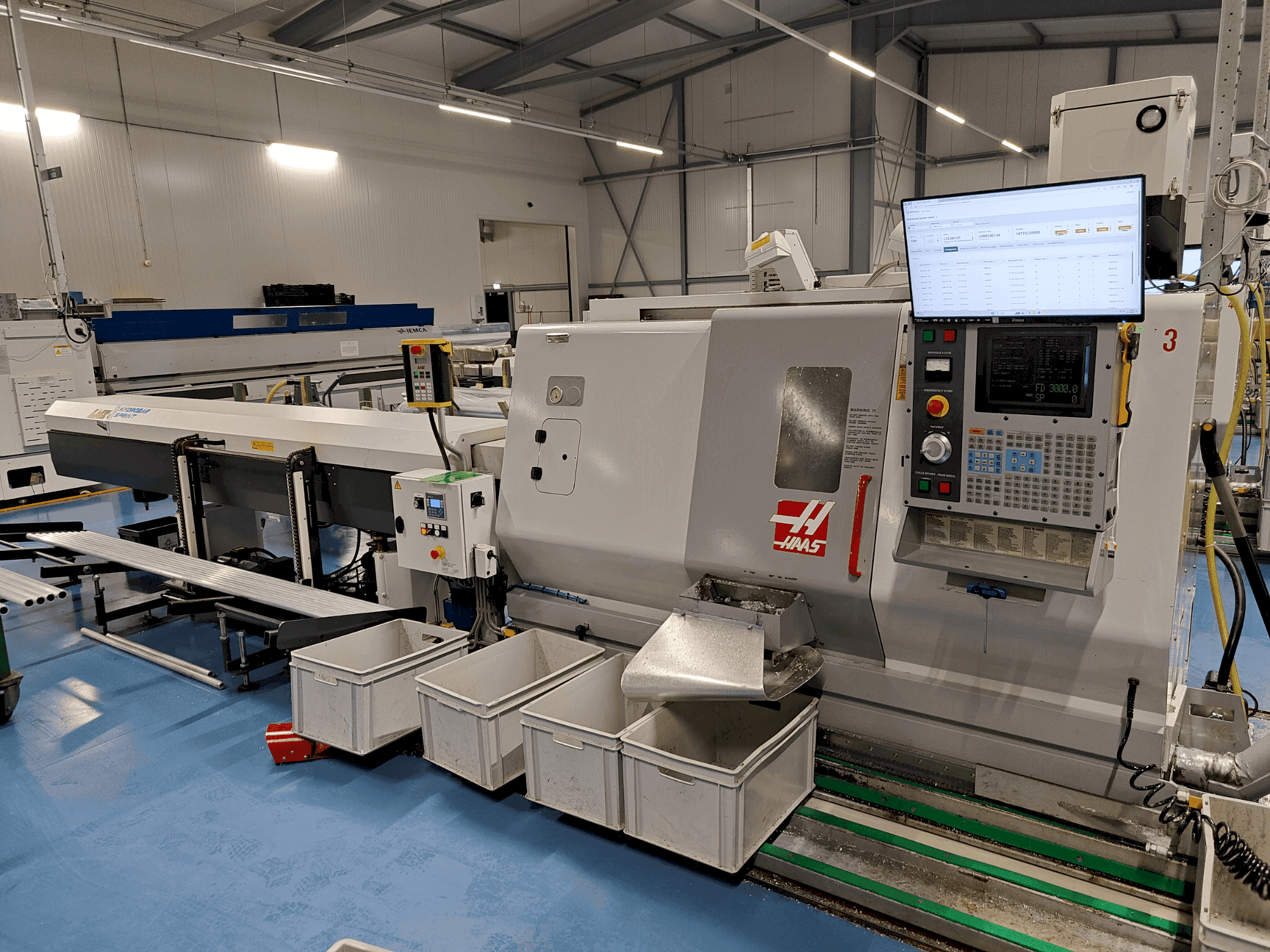

Used Lathe HAAS SL-20HE - 2002 - for sale | gindumac.com

Show in original language

This 5-Axis lathe was manufactured in 2002. With a turning length of 508 mm and a 15 kW main engine, it's equipped for precision machining. The 210 mm chuck and 10-position tool turret ensure versatility. Featuring a rigid tapping system and VDI turret, it's ideal for varied machining tasks. Boasting a spindle speed of 4,000 rpm, it delivers efficiency. Complete with European package additions like USB port and chip conveyor, buy this HAAS SL-20HE lathe for a reliable machining solution. Contact us for further information.

Overview

brand: HAAS
year: 2002
MODEL: SL-20HE
application type: Turning
Location: Netherlands
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: HAAS

Technical Information - HAAS SL-20HE

General Data

Measurements width: 1880 mm
Measurements depth: 3213 mm
Measurements height: 1778 mm
Machine weight: 4082 kg

Control Unit

Brand: HAAS

Main drive

Number of spindles: 1
Spindle speed range: 4000 1/MIN
Number of axis: 5

Movement

X-AXIS Movement: 215 mm
X-AXIS Rapid traverse: 30 m/min
Z-AXIS Movement: 508 mm
Z-AXIS Rapid traverse: 30 m/min

Turret

Number of turrets: 1
Rotating tools: Yes

Tools

Number of stations: 10

Media

Chip conveyor: Yes

Additional equipment

- Hydraulic tailstock
- Automatic lubrication system
- Load Monitor

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Cooling tank capacity of 151 litres
- - Air connection of 7 bar, 113 l/min
- - Connected load of 14 kva (increased passage (b) = 28 kva)
- - Max. Torque at main spindle of 209 nm
- - Spindle diameter of 76 mm
- - Bar passage of 52 mm
- - Maximum turning diameter: 262 mm // swing diameter: 584 mm // turning length (max): 508 mm // distance between centers: 610 mm
- - Chuck of 210 mm
- - Complete c axis
- - Usb port and chip conveyor

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
