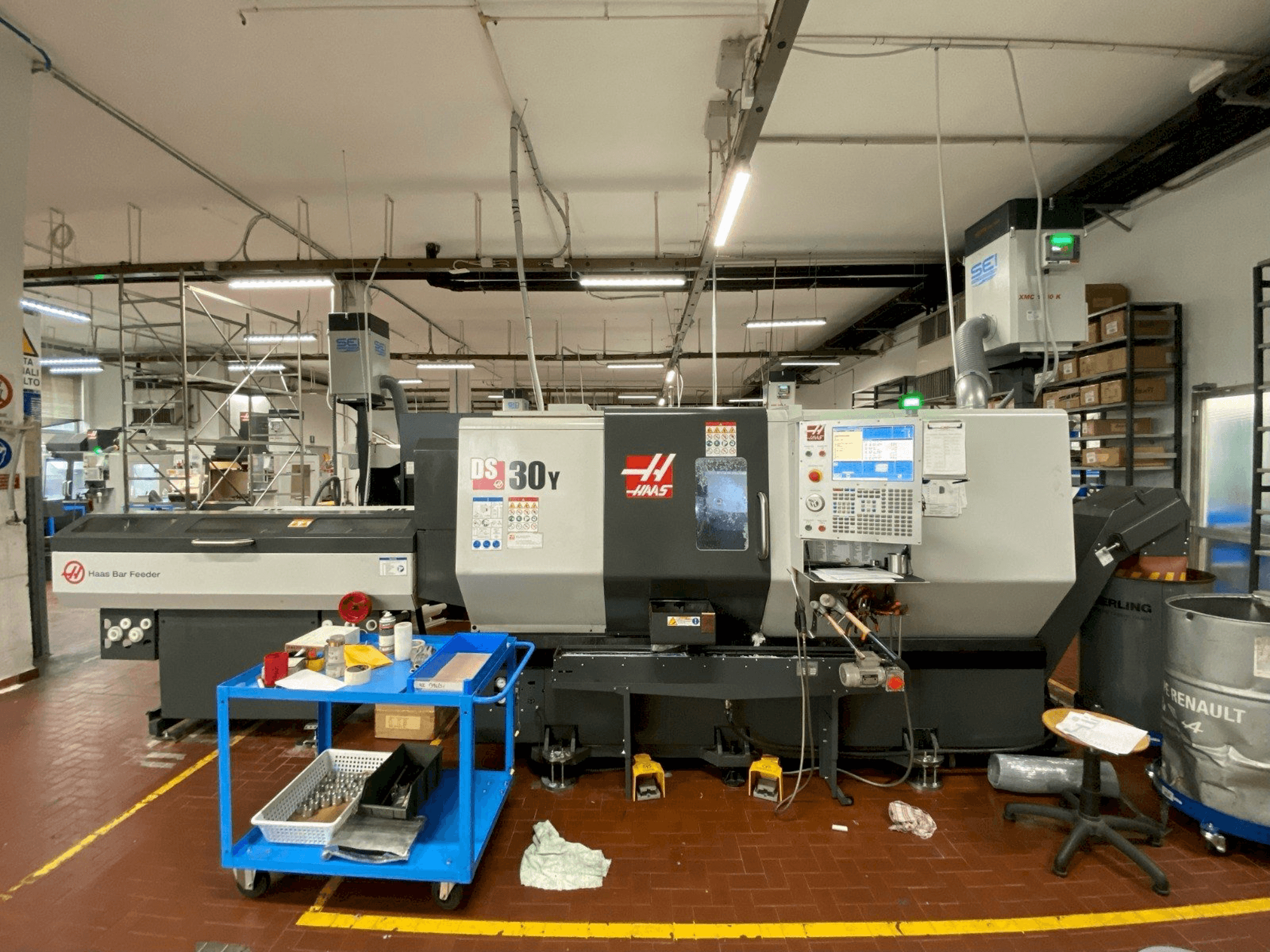

This HAAS DS30Y Lathe was manufactured in the year 2019 and has 4800 working hours. It is equipped with a HAAS control unit. The machine has a spindle speed of 4500 rpm.

Overview

brand: HAAS
year: 2019
MODEL: DS30Y
production hours: 4800
application type: Turning
Location: Italy
machine type: Turn-Mill Centre
availability: Sold
control unit brand: HAAS

Technical Information - HAAS DS30Y

General Data

Measurements width: 4340 mm
Measurements depth: 2290 mm
Measurements height: 2490 mm
Machine weight: 5600 kg

Control Unit

Brand: HAAS

Main drive

Spindle speed range: 4500 1/MIN

Movement

X-AXIS Movement: 239 mm
Y-AXIS Movement: 51 mm
Z-AXIS Movement: 826 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Chuck size: 254 mm
- - Max part swing :533 mm
- - Max cutting diameter (with bmt65 turret): 349 mm
- - Max cutting length (varies with workholding): 826 mm
- - Bar capacity: 76 mm
- - Between centers: 826 mm
- - C axis
- - Capacity for 12 tools on the turret

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
