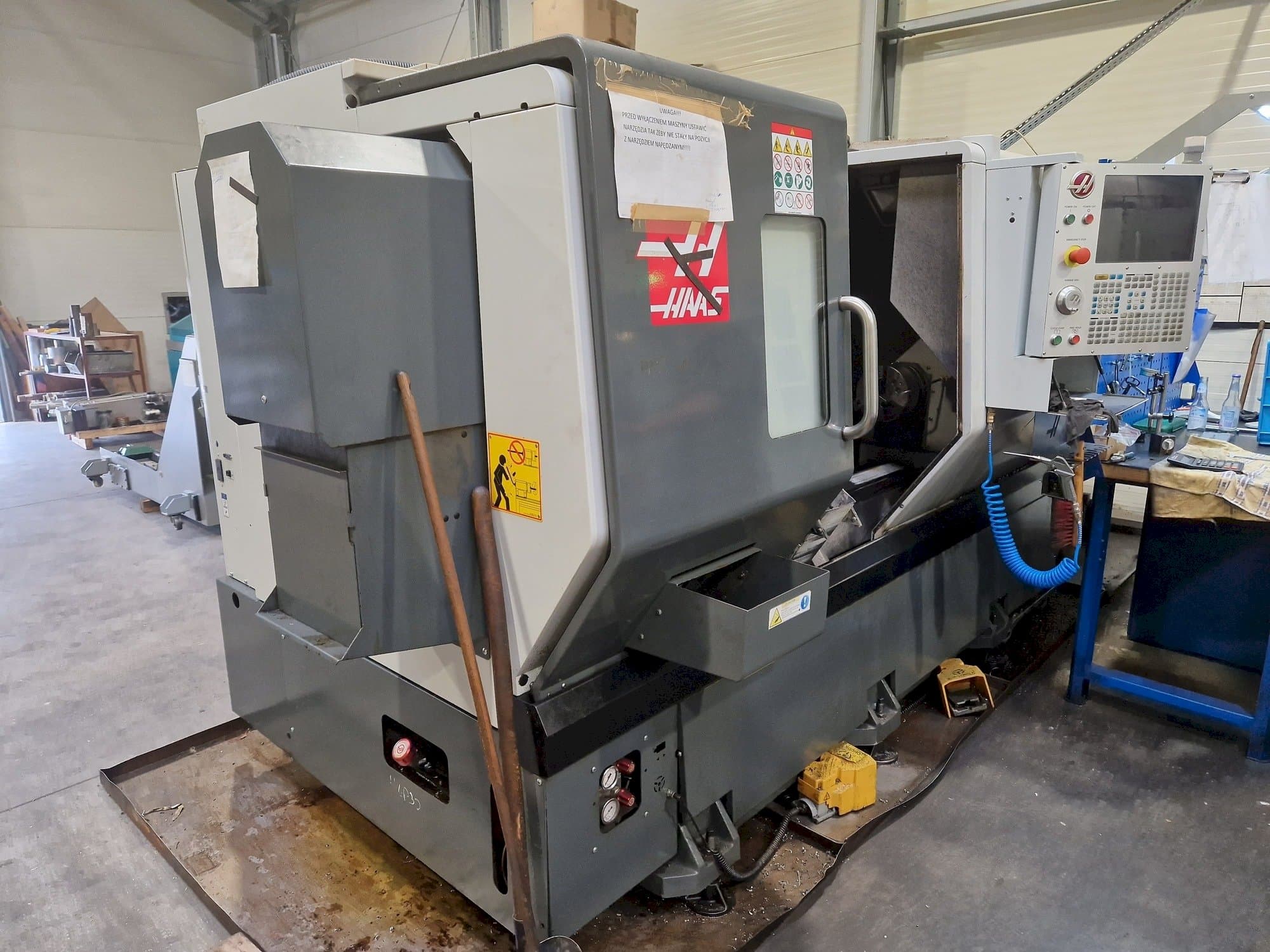

HAAS - DS-30YPL-TUR-HAA-2018-00001

Additional equipment

• - Driven tools (6000 min-1) with C-axis
• - Measuring probe
• - High-pressure cooling system (21bar)
• - Bar feeder interface
• - Belt chip conveyor
• - IFS Vario E2000 filtration system
• - Programmable workpiece pick-up system
• - Equipped with 15 tool holders

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Cross slide travel on x-axis: 318 mm - cross slide travel on y-axis: +50 mm - longitudinal slide travel on z-axis: 584 mm
  • - Swing diameter over cross slide: 527 mm - swing diameter over tailstock: 806 mm
  • - Diameter of the main spindle chuck: 210 mm - diameter of the main spindle bore: 88. 9 mm - maximum turning diameter with bar work: 51 mm - maximum turning diameter for bmt65 hybrid turret: 454
  • - Cnc control, 4 axes (including y axis, haas type, compatible with fanuc), memory capacity 1 mb, 15” lcd monitor with usb port
  • - Electronic hand wheel
  • - Tool holder type bmt65, with a set of standard holders, driven tools
  • - Hydraulic three-jaw chuck with soft jaws for main spindle, hydraulic collet chuck with soft jaws for sub-spindle
  • - Compensation of thermal expansion of ball screws, cabinet with double doors and windows, operation without compensation bracket, installation of air connection
  • - Tray with a roll-out chip conveyor, automatic central lubrication system, cabcool - cnc control panel cooling
  • - Lighting of the machine interior, machine documentation in english and polish, initial filling with blaser coolant
• Qualitative Machine Benefits:
  • - Ds-38ss 254 mm chuck, spindle bore 76 mm, 22. 4 kw engine, speed: 4,500 rpm - pcat programmable, pneumatically operated parts catcher system, maximum part dimensions: 96 mm x 152 mm for st-20, st-25, st-30, st-35, ds-30 also in y axes
  • - Pcat programmable, pneumatically operated parts catcher system, maximum part dimensions: 96 mm x 152 mm for st-20, st-25, st-30, st-35, ds-30 also in y axes
  • - Acf additional 25 μm filtration system, indispensable for processing cast iron, aluminum, wood, and composite materials
  • - Hpc high-pressure coolant system, pressure up to 21 bar
  • - Ethernet network card
  • - Conveyor automatic parts ejector
  • - Jet actuated by the m code, air blast through the chuck
  • - Lt-bmt65-24 24-station bmt65 turret (24 positions indexable) instead of the standard 12-station bmt65 turret

Extra information

• - 15 pcs of tool holders // POWER ON HOURS = 10635h // CUTTING HOURS = 3608h

Payment Terms

• Payment in advance

• Asset Financing
