➤ Used Goodway GLS-2800S For Sale | gindumac.com

Show in original language

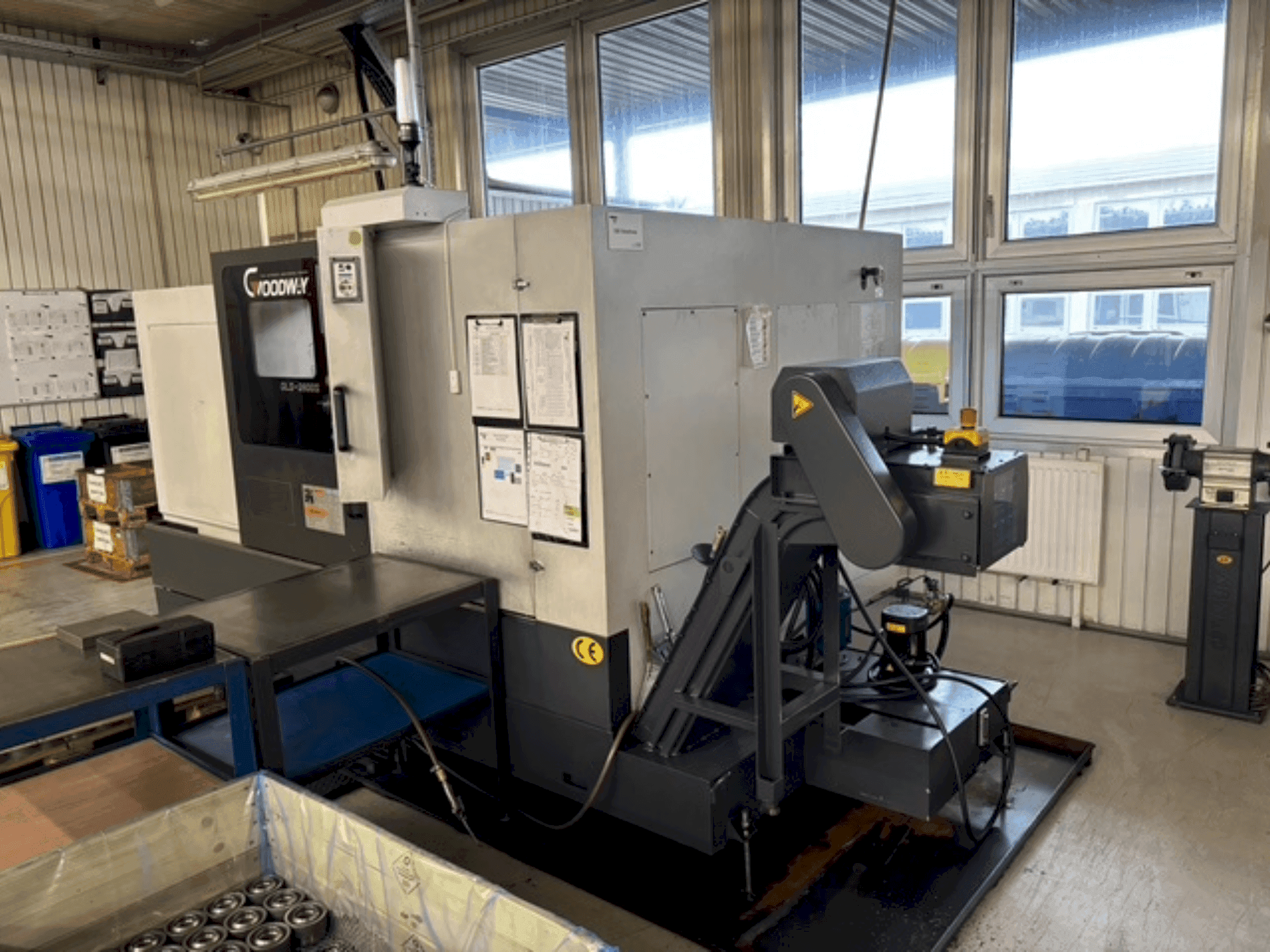

This 4-axis Goodway GLS-2800S multi-spindle turning machine was manufactured in 2018. It features a FANUC Series 0i-TF control, a maximum turning diameter of Ø 440 mm, and a turning length of 690 mm. The spindle supports speeds up to 3500 rpm with a chuck size of 250 mm. It includes a chip conveyor and a turret with 12 live positions. If you are looking to get high-quality turning capabilities consider the Goodway GLS-2800S machine we have for sale. Contact us for more information.

Overview

brand: Goodway
year: 2018
MODEL: GLS-2800S
application type: Turning
Location: Czech Republic
machine type: Multi-Spindle Turning Machine
availability: Immediately
control unit brand: FANUC

Technical Information - Goodway GLS-2800S

General Data

Machine weight: 6000 kg

Control Unit

Brand: FANUC
Model: Series 0i-TF

Main drive

Spindle speed range: 3500 rpm 1/MIN
Spindle motor power: 11/15 kW
Number of axis: 4

Movement

X-AXIS Movement: 250 mm
X-AXIS Rapid traverse: 30 m/minute
Z-AXIS Movement: 750 mm
Z-AXIS Rapid traverse: 30 m/minute

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Maximum swing diameter: Ø 760 mm
- - Swing over saddle: Ø 440 mm
- - Maximum turning diameter: Ø 440 mm
- - Maximum turning length: 690 mm
- - Chuck size: 250 mm
- - Hole through spindle: Ø 90 mm
- - Turret positions: 12 (all live)
- - C-axis indexing: ± 0. 001°
- - Maximum cutting feedrate: 4800 mm/minute
- - Subspindle speed range: 5000 rpm // subspindle bar capacity: Ø 51 mm

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
