Goodway GLS-2800 Lathe

Show in original language

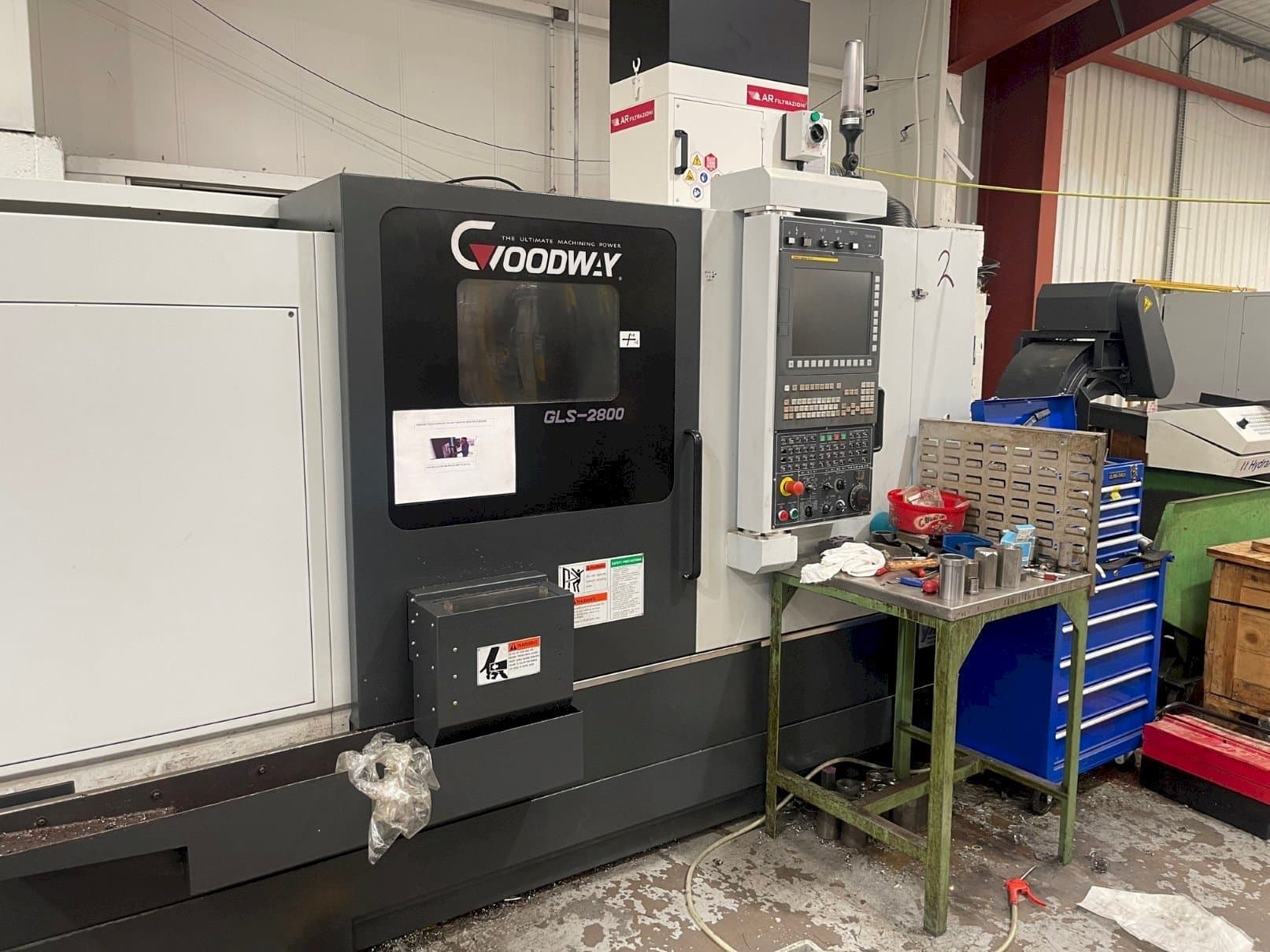

This Goodway GLS-2800 Lathe was manufactured in the year 2019 in Taiwan. It is equipped with FANUC SERIES 0i-TF control unit and has 2 axis. The machine has a spindle speed of 3500 rpm.

Overview

brand: Goodway
year: 2019
MODEL: GLS-2800
application type: Turning
Location: United Kingdom
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - Goodway GLS-2800

General Data

Machine weight: 6000 kg

Control Unit

Model: Series 0i-TF
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 3500 1/MIN
Number of axis: 2

Movement

X-AXIS Movement: 250 mm
Z-AXIS Movement: 750 mm

Turret

Number of turrets: 1

Additional equipment

- Barfeed magazine Hydrafeed Multifeed

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Chuck size: 250mm
- - Maximum cutting diameter: 440mm
- - Maximum cutting length: 690mm
- - Driven tools max spindle speed 5000rpm
- - Swing 760mm
- - Maximum cutting feedrate 4800mm/minute
- - Rapid feedrates 30m/minute
- - Spindle motor power 11/15kw
- - Tailstock body travel : 600mm, quill stroke 70mm, taper: mt #4
- - Tool setter, parts catcher
Qualitative Machine Benefits:
- - Very good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
