Gildemeister CTX 410V6 Lathe

Show in original language

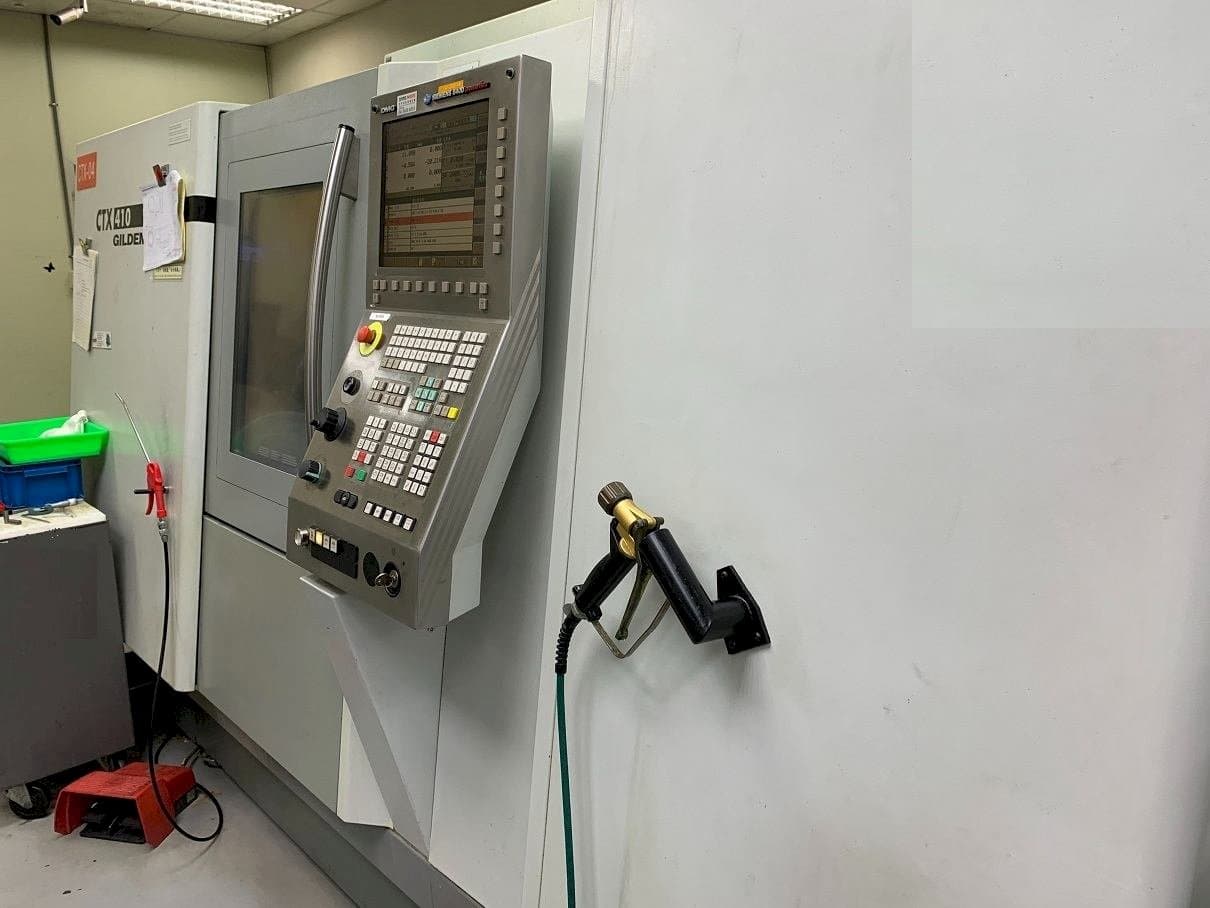

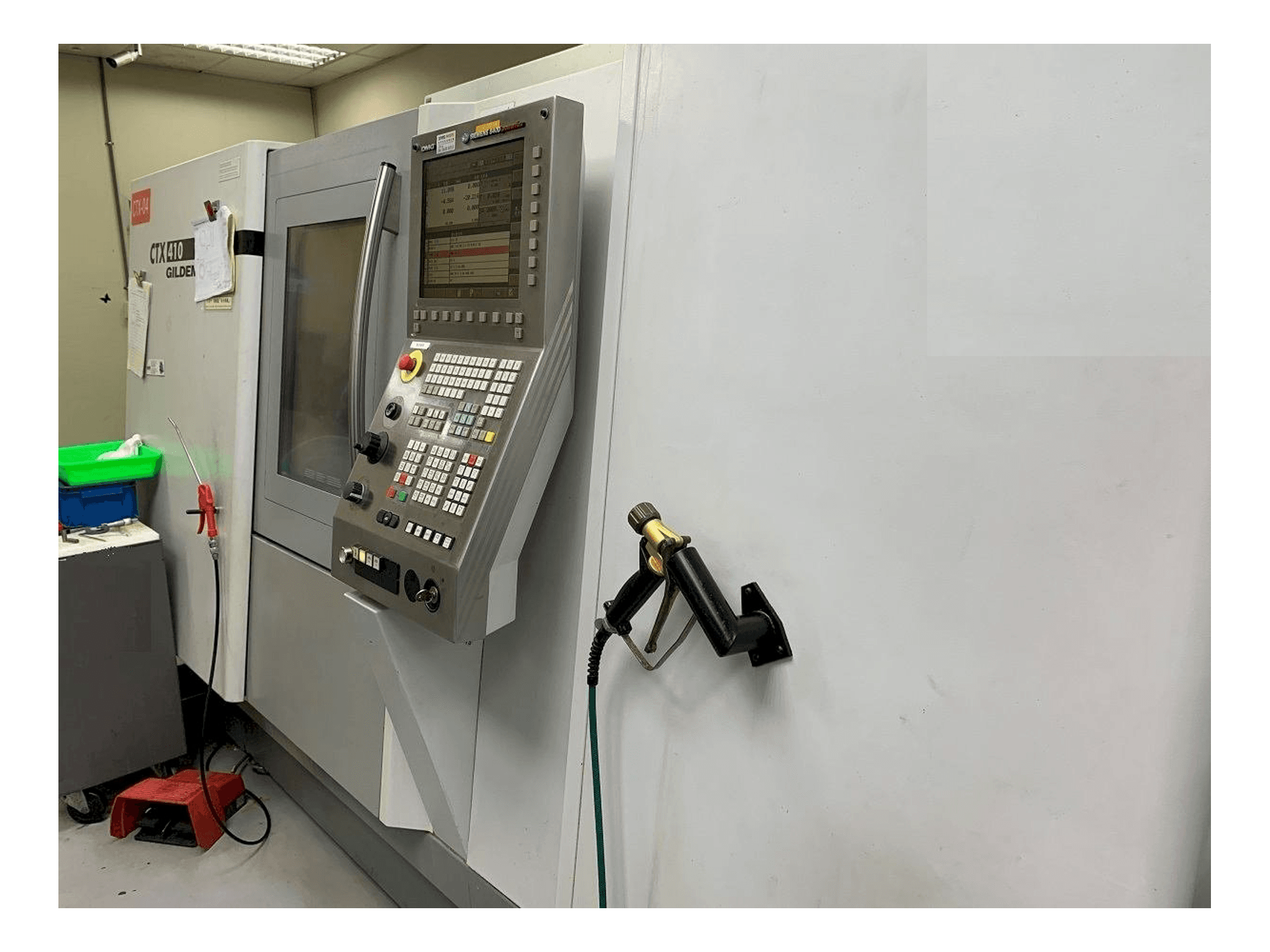

This Gildemeister CTX 410V6 Lathe was manufactured in the year 2008 in Germany. It has been working for only 10218 hours. It is operated through a Siemens 840D Powerline control unit. This machine can perform with a spindle speed up to 6000 rpm.

Overview

brand: Gildemeister
year: 2008
MODEL: CTX 410V6
production hours: 10218
application type: Turning
Location: Taiwan
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: SIEMENS

Technical Information - Gildemeister CTX 410V6

Control Unit

Model: 840D Powerline
Brand: SIEMENS

Main drive

Spindle speed range: 6000 1/MIN

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Vdi 30 – 12 station with live tool
- - C axis
- - Y axis +/-40mm
- - Main-spindle Ø255mm / sub-spindle Ø210mm
- - Max. Swing Ø 505 mm, max. Turning length 600 mm, max. Turn Ø320mm,
- - Sub-spindle 5,000rpm
- - Coolant pump: high pressure system
- - Tailstock
- - Hydraulic three-jaw chuck on chuck smw autoblok
- - Electrical box cooling system

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
