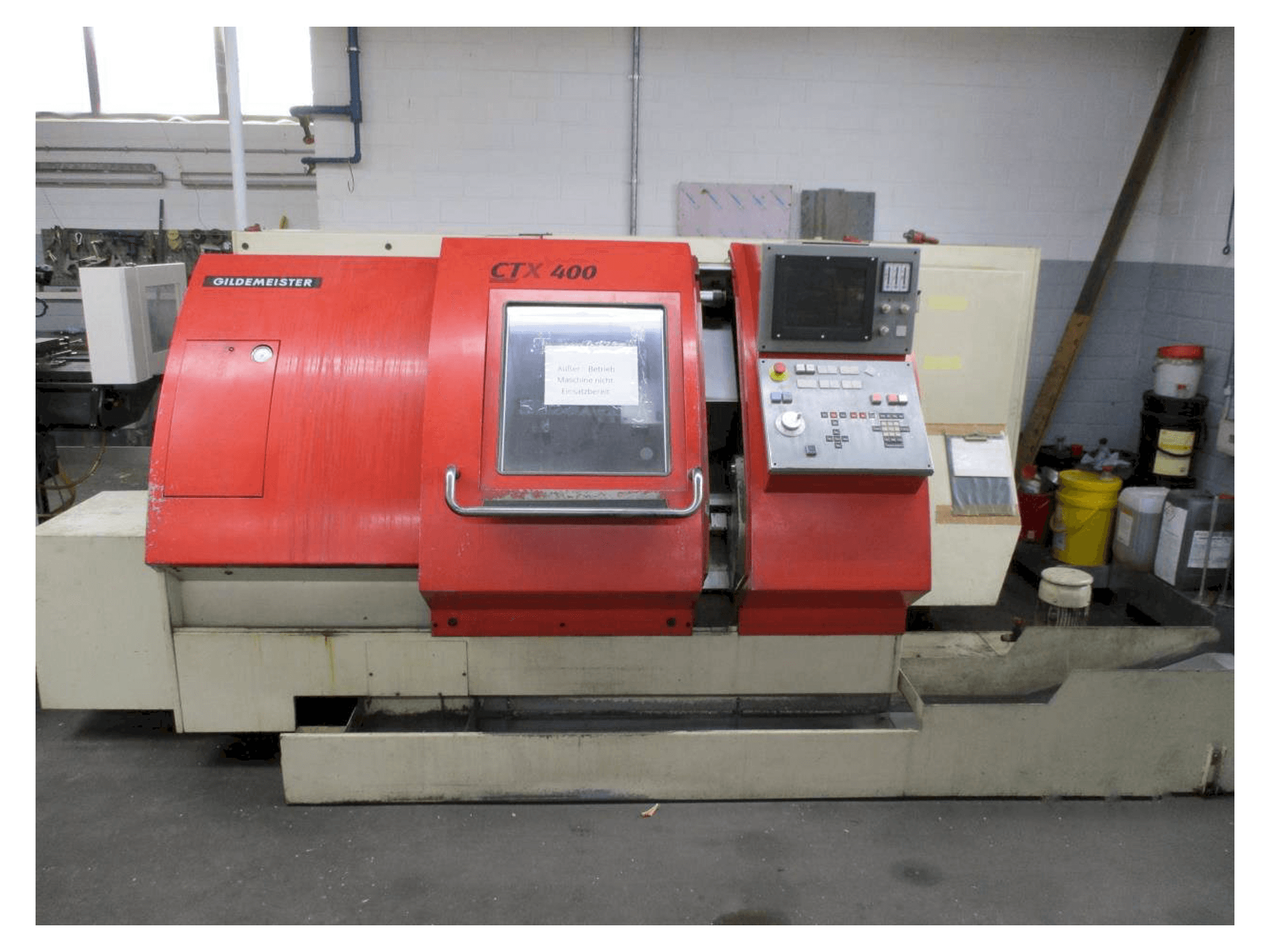

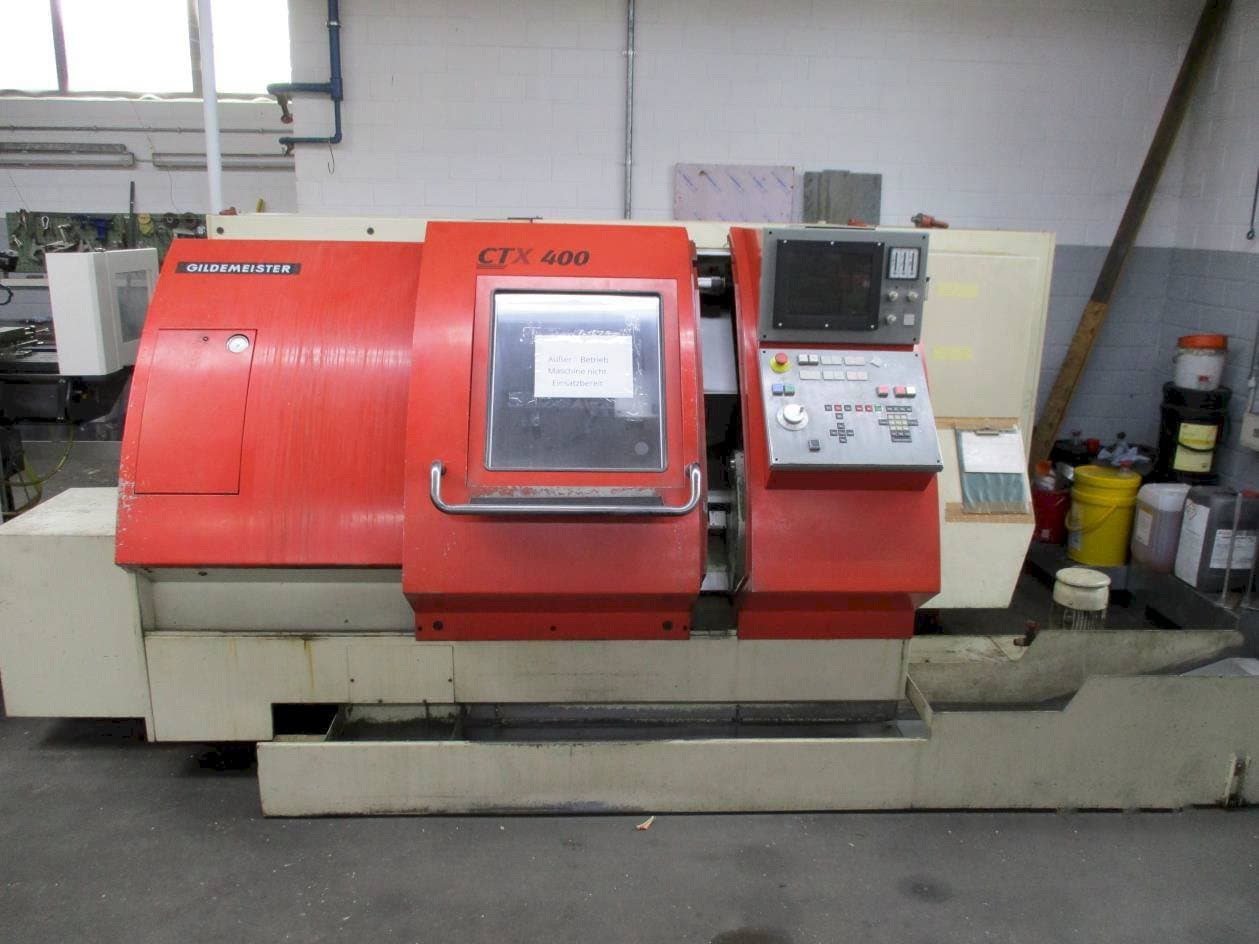

This Gildemeister CTX 400 Lathe was manufactured in the year 1990 in Germany and has 18335 production hours. It is equipped with a Gildemeister EPL 2 control unit. The machine has a spindle speed of 25-5000 rpm.
Overview
- brand: Gildemeister
- year: 1990
- MODEL: CTX 400
- production hours: 18335
- application type: Turning
- Location: Germany
- machine type: Horizontal Turning Machine
- availability: Sold
- control unit brand: Gildemeister
Technical Information - Gildemeister CTX 400
Control Unit
- Brand: Gildemeister
- Model: EPL 2
Main drive
- Spindle speed range: 25-5000 1/MIN
- Spindle motor power: 2 kW
Movement
- X-AXIS Movement: 212 mm
- Z-AXIS Movement: 640 mm
Additional Information
- Technical Machine Benefits:
- - Turning diameter above support: 290 mm
- - Turning diameter over bed: 500 mm
- - Spindle diam. Front bearing: 100 mm
- - Spindle bore diameter: 72 mm hollow chip removal direction
- - Torque: 210 nm
- - Cylindrical shank tool holder: vdi 30
- - Tailstock quill stroke: 100 mm
- - Quill inner cone: mk 4
- - Tailstock force: 8 kn
- - Counter spindle: none
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
