FORTE SBA 271 Band Saw machine

Show in original language

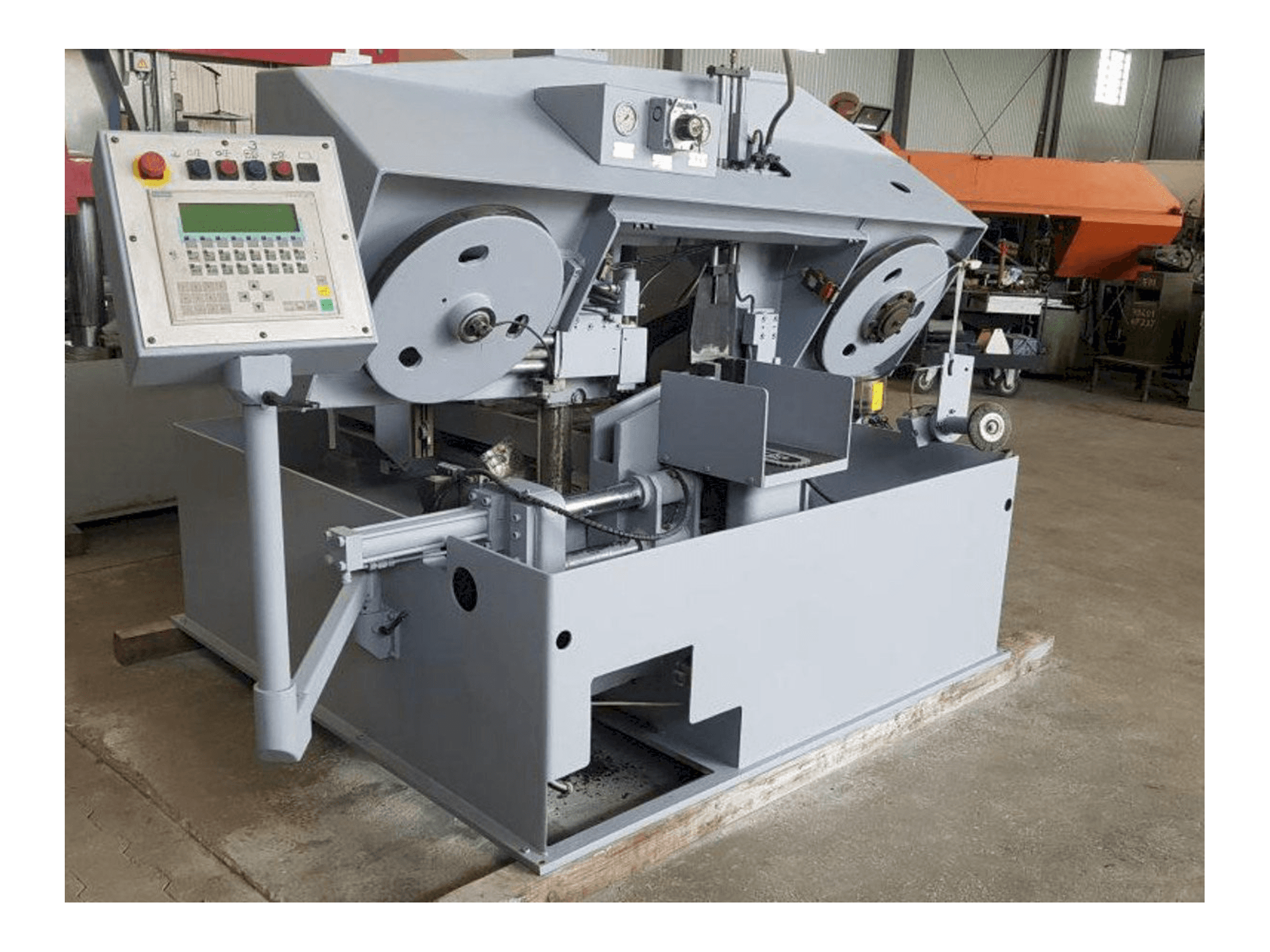

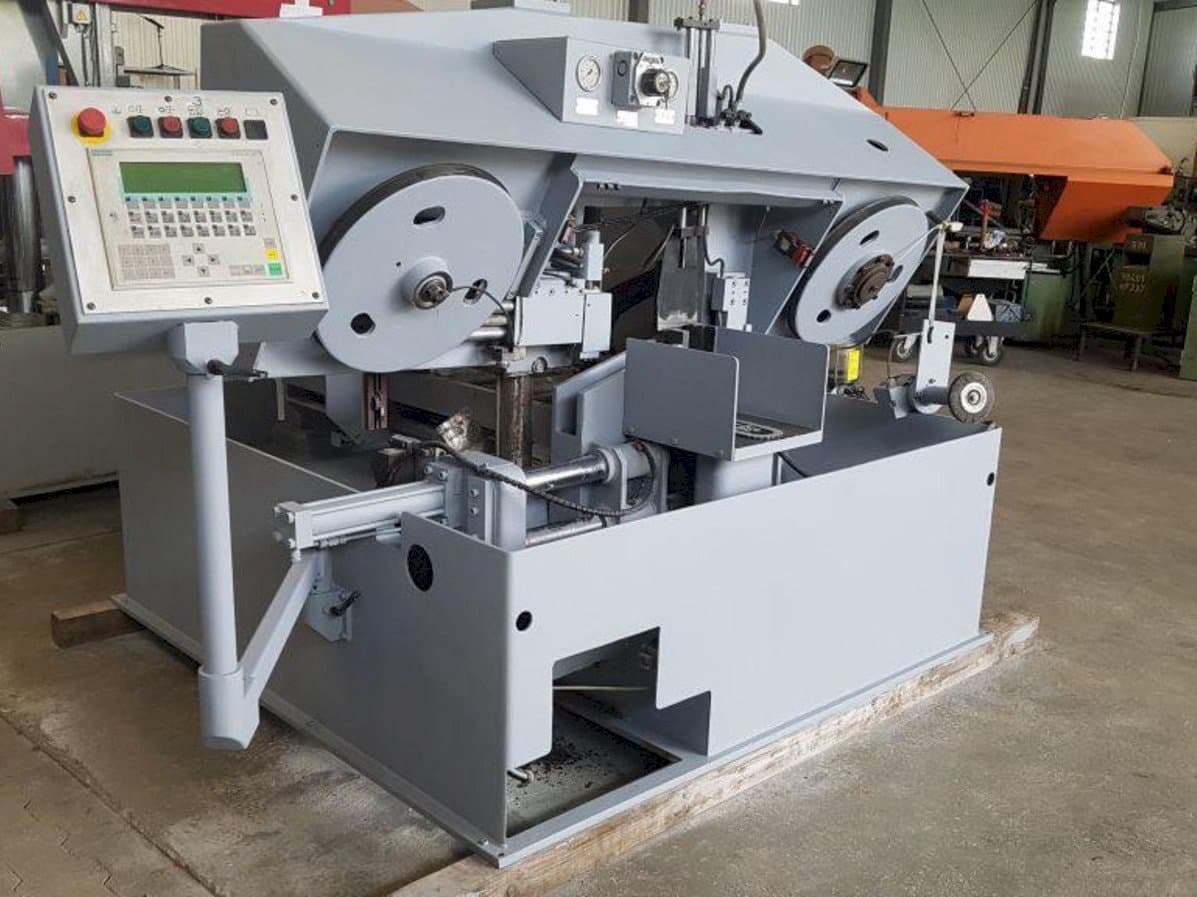

This FORTE SBA 271 Band saw machine was manufactured in the year 1999 in Germany. It operates with a Siemens SIMATIC S7-200 control unit. This machine can work with a cutting speed of 120 m/min, a cutting angle of 90º, and a max. saw band diameter of 425 mm.

Overview

brand: FORTE
year: 1999
MODEL: SBA 271
application type: Sawing
Location: Germany
machine type: Metal Band Saw
availability: Sold
control unit brand: SIEMENS

Technical Information - FORTE SBA 271

General Data

Machine weight: 3000 kg

Control Unit

Model: SIMATIC S7-200
Brand: SIEMENS

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Hydraulic 50 bar
- - Cutting speed 120 m/min continuously adjustable
- - Saw band tension approx. 24 -25 bar
- - Workpiece clamping 20 - 40 bar
- - Clamping width 10 - 270 mm
- - Cutting angle 90º
- - Diameter of saw band discs 460 mm
- - Rotation of the saw band 60º
- - Saw band dimension 4870 x 34 x 1. 1 mm
- - Cooling lubricant tank 40 l

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Documents

Manual.pdf
