Finn-Power TRS 6 SB Turret Punching Machine

Show in original language

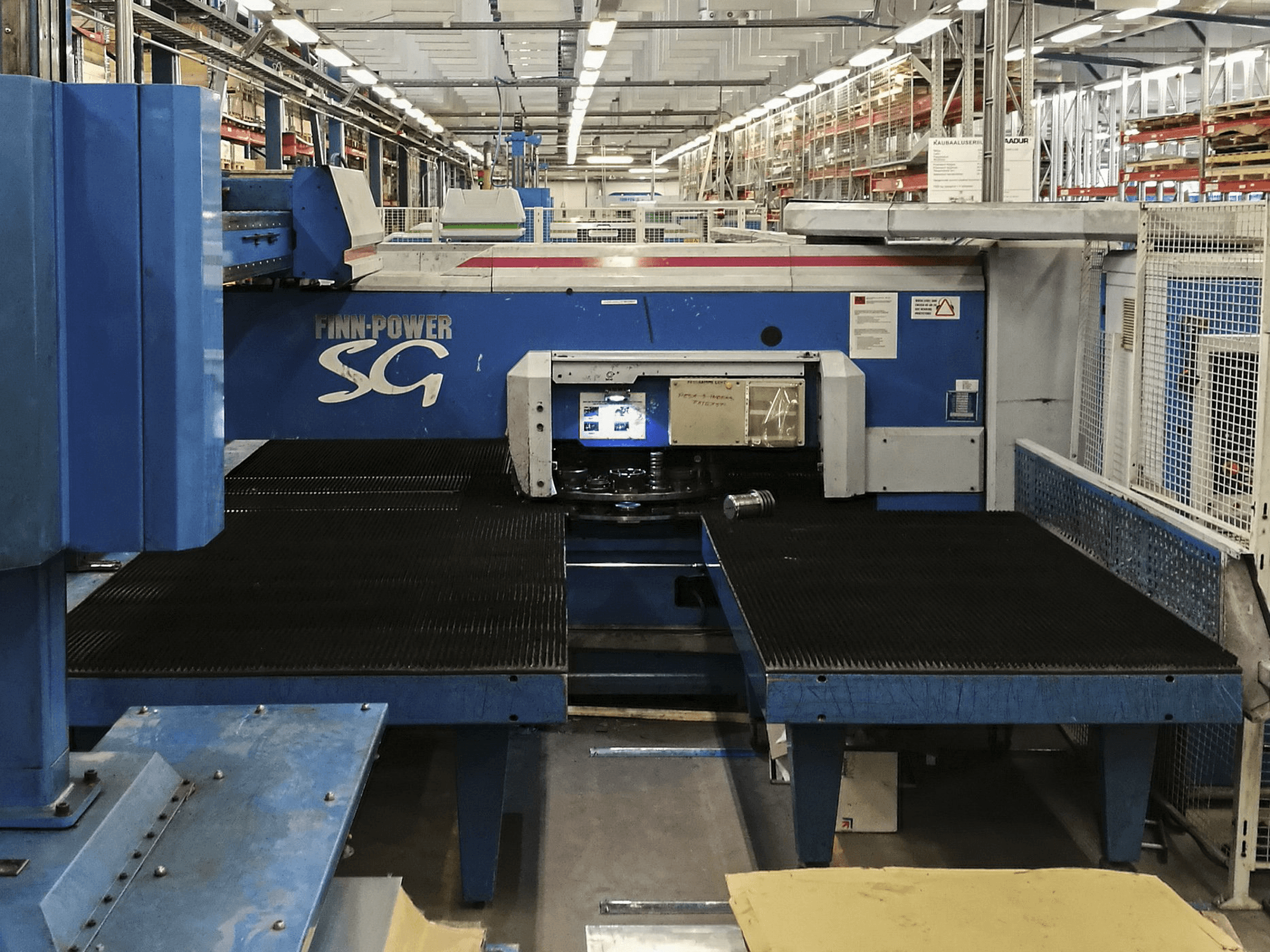

This Finn-Power TRS 6 SB Turret Punching Machine was manufactured in 1997 in Finland, and has a working record of 72000 production hours. Operated through a SIEMENS Sinumerik Control unit, the machine stands in excellent conditions due to regular maintenance. In the past, this Finn-Power has handled mostly thin metal sheets, of 1 to 2 mm in thickness, and produced enclosures and cabinets.

Overview

brand: Finn-Power
year: 1997
MODEL: TRS 6 SB
production hours: 72000
application type: Punching
Location: Estonia
machine type: CNC Punching Machine
availability: Sold
control unit brand: SIEMENS

Technical Information - Finn-Power TRS 6 SB

General Data

Measurements width: 11550 mm
Measurements depth: 7190 mm
Measurements height: 3500 mm
Machine weight: 22000 kg

Control Unit

Brand: SIEMENS
Model: SINUMERIK

Main drive

Punching force: 300 kN

Movement

X-AXIS Movement: 2584 mm
Y-AXIS Movement: 1560 mm

Workpiece

Workpiece x: 3061 mm
Workpiece y: 1528 mm
Workpiece weight: 200 kg

Tools

Number of stations: 21

Max Material thickness

Steel: 4 mm
Stainless steel: 3 mm
Aluminum: 5 mm

Media

Power consumption: 30 kVA
Chip conveyor: Yes
Internal cooling: Yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
