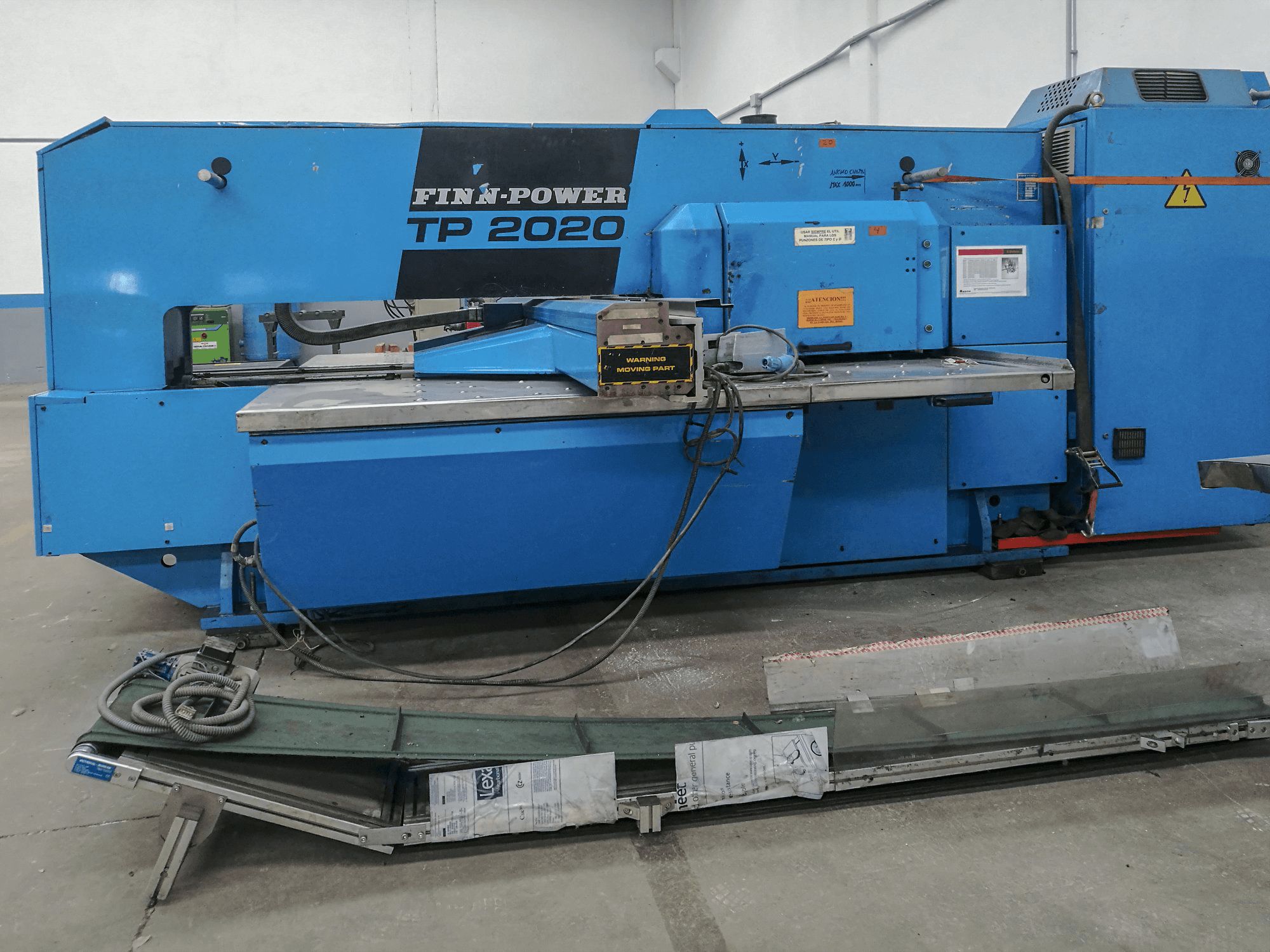

Finn-Power TP 2020 Turret Punching Machine

Show in original language

This Finn-Power TP 2020 Turret Punching Machine which was fabricated in Finland in 1993 has a total of approximately 18000 production hours. Operated through a FANUC Series O-P Control unit, this model covers a working field of 2000x1000 mm without workpiece repositioning.

Overview

brand: Finn-Power
year: 1993
MODEL: TP 2020
production hours: 18000
application type: Punching
Location: Spain
machine type: CNC Punch Press
availability: Sold
control unit brand: FANUC

Technical Information - Finn-Power TP 2020

General Data

Measurements width: 4645 mm
Measurements depth: 4120 mm
Measurements height: 2000 mm
Machine weight: 8600 kg

Control Unit

Model: Series O-P
Brand: FANUC

Main drive

Punching force: 300 kN
Maximum sheet thickness: 8 mm

Movement

X-AXIS Movement: 2054 mm
Y-AXIS Movement: 1075 mm

Workpiece

Workpiece x: 2000 mm
Workpiece y: 1000 mm
Workpiece weight: 130 kg

Tools

Number of stations: 21

Media

Main electronic connection: 380 V / 50 Hz
Power consumption: 35 kVA

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
