Finn-Power LPE5 SWUH Laser Punch Combination Machine

Show in original language

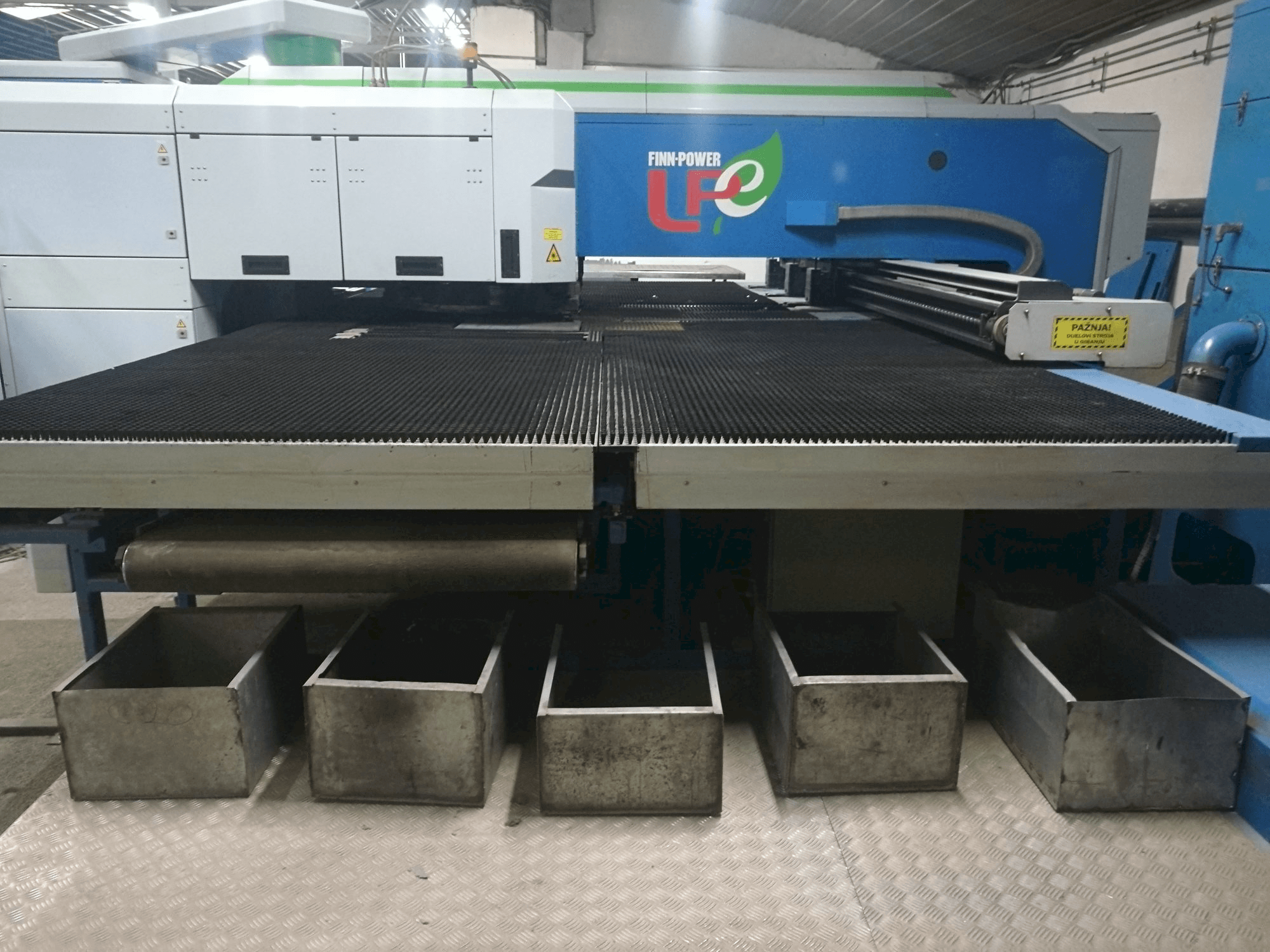

This Finn-Power LPE5 SWUH Laser Punch Combination Machine was made in 2002 in Finland. Operated through a SIEMENS 840D Control unit, this versatile machine has mainly been working with steel and galvanised steel up to 2 mm of thickness during the past. It presents excellent conditions, as it was partially retrofitted in 2012. Several additional equipment is included within the delivery.

Overview

brand: Finn-Power
year: 2002
MODEL: LPE5 SWUH
application type: Cutting
Location: Croatia
machine type: CO2 Laser Cutting Machine
availability: Sold
control unit brand: SIEMENS

Technical Information - Finn-Power LPE5 SWUH

General Data

Measurements width: 6700 mm
Measurements depth: 8000 mm
Measurements height: 2600 mm
Machine weight: 17000 kg

Control Unit

Model: 840 D
CNC main language: English
CNC language customizable: Yes
Brand: SIEMENS

Main drive

Laserpower: 2.5 kW
Laser type: CO2
Punching force: 200 kN
Maximum sheet thickness: 8 mm
Laser brand: WB Triagon 2500

Movement

X-AXIS Movement: 2584 mm
Y-AXIS Movement: 1317 mm

Workpiece

Workpiece x: 2530 mm
Workpiece y: 1270 mm
Workpiece weight: 200 kg

Tools

Number of index: 4
Number of stations: 20
Slots in storage: 50

Max Material thickness

Steel: 8 mm
Stainless steel: 8 mm
Aluminum: 8 mm

Media

Main electronic connection: 400 V
Power consumption: 25 kVA
Chip conveyor: Yes
Internal cooling: Yes

Additional equipment

- 6x automatic sorting units
- 1x sorting behind unit for laser
- 1x chiller unit
- 1x filter unit
- 1x Multitool with 24 tools
- 1x Laser link software

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
