Finn-Power - LP6 SBFI-PUN-FIN-1997-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery

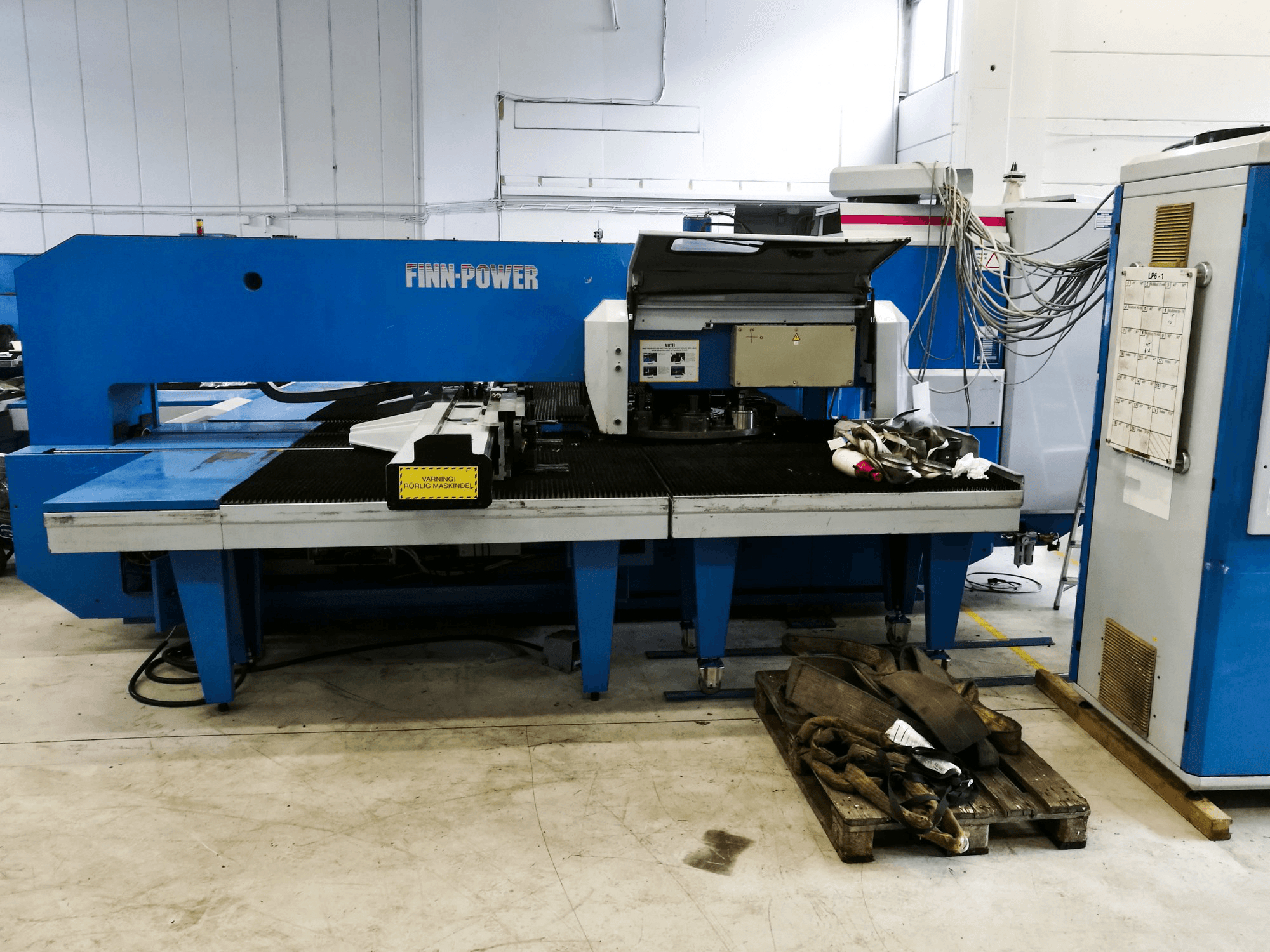

Finn-Power LP6 SB Turret Punching Machine

Show in original language

This Finn-Power LP6 SB Turret Punching Machine was manufactured in 1997 and has a record of 41600 production hours ever since. Operated through a SIEMENS Sinumerik 840D with RS 232 and Ethernet Interface Control unit, the machine comes with brush tables as additional equipment. Technically wise, this unit stands out for its 20x turret, 4x multitool stations and 4x index station.

Overview

brand: Finn-Power
year: 1997
MODEL: LP6 SB
production hours: 41600
application type: Bending & Punching
Location: Finland
machine type: Punch-Laser Combination
availability: Sold
control unit brand: SIEMENS

Technical Information - Finn-Power LP6 SB

General Data

Measurements width: 8000 mm
Measurements depth: 6000 mm
Measurements height: 2200 mm
Machine weight: 17000 kg

Control Unit

Model: Sinumerik 840D
Release: RS 232
Interface: Ethernet
Brand: SIEMENS

Main drive

Punching force: 300 kN
Maximum sheet thickness: 8 mm

Movement

X-AXIS Movement: 2584 mm
X-AXIS Rapid traverse: 80 m/min
Y-AXIS Movement: 1560 mm
Y-AXIS Rapid traverse: 60 m/min

Workpiece

Workpiece x: 3061 mm
Workpiece y: 1528 mm
Workpiece weight: 200 kg

Tools

Number of index: 4
Number of stations: 20
Max tool diameter: 89 mm

Media

Main electronic connection: 3 x 400 V / 50 Hz
Power consumption: 30 kVA
Air pressure: 6 bar
Oil tank: 330 L

Additional equipment

- Brush tables

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
