FIM Vulcano 30/1000CNC Punching Machine

Show in original language

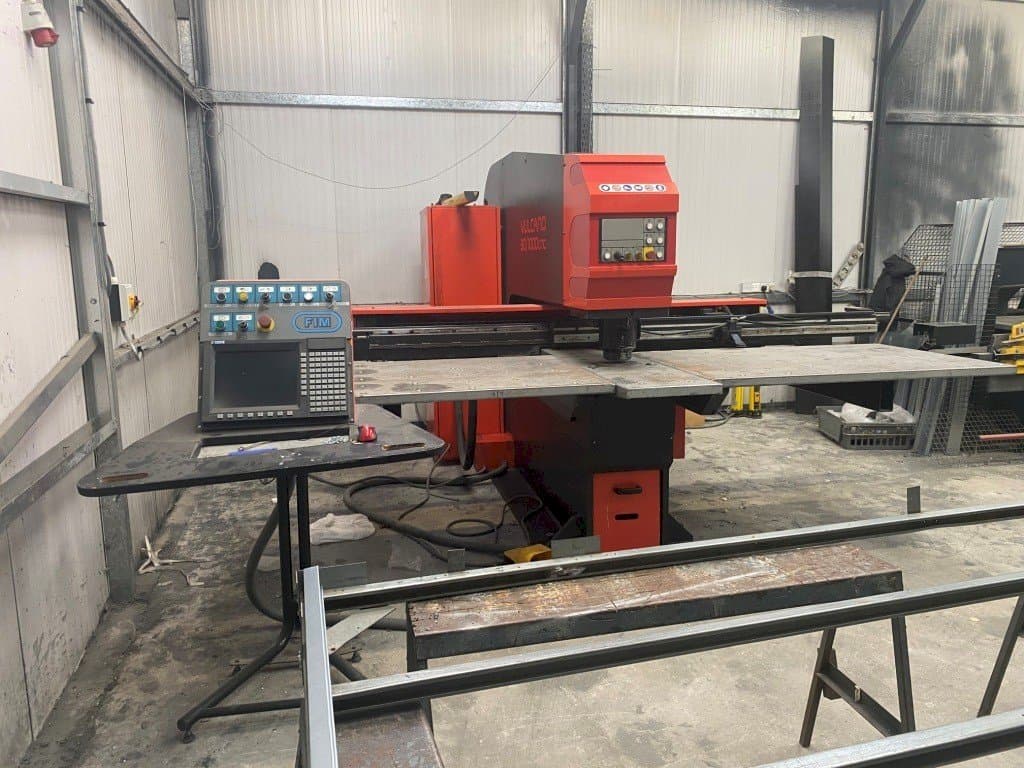

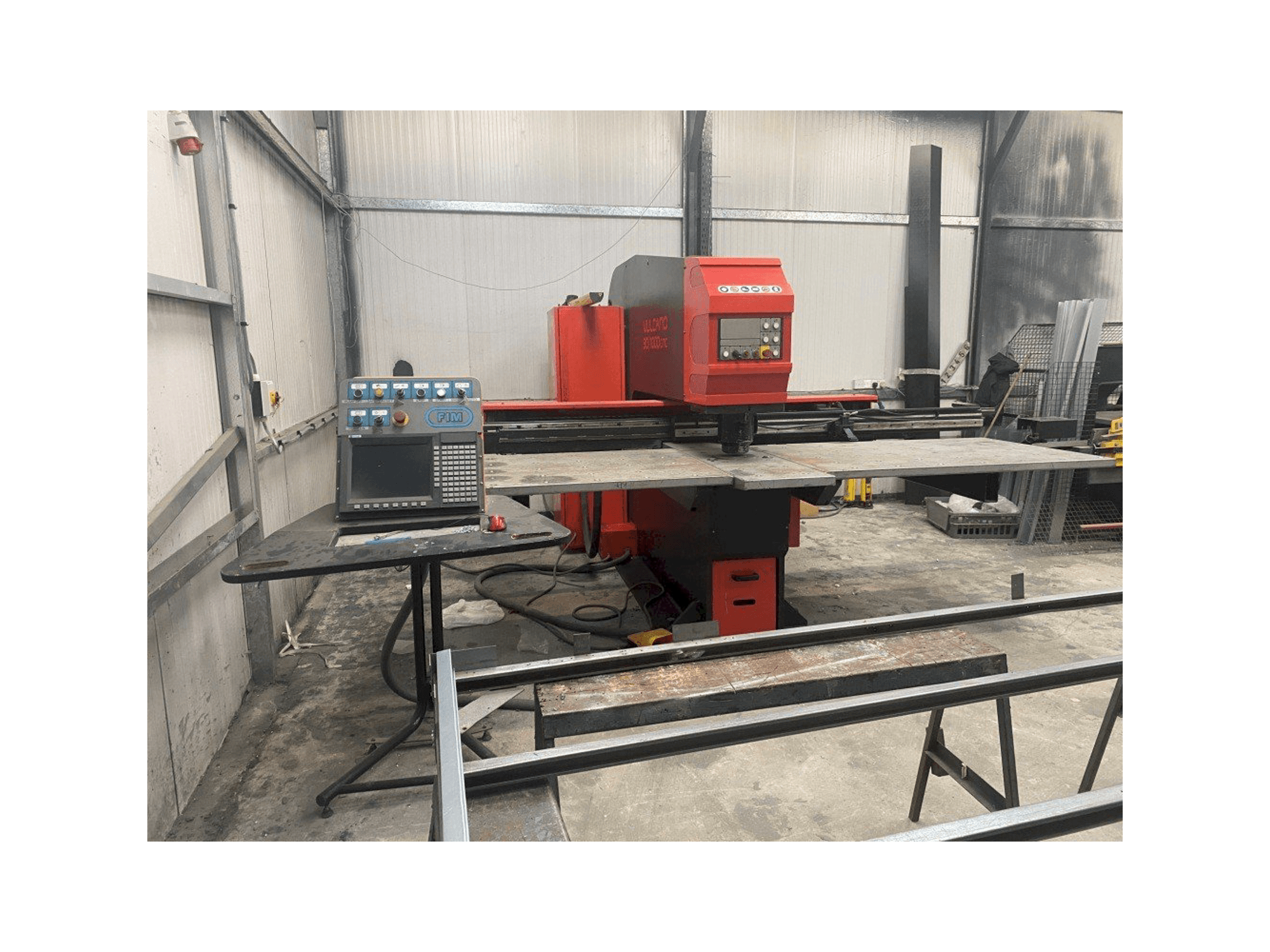

This FIM Vulcano 30/1000CNC Punching Machine was built in the year 1999 in Italy. The model is operated through a Fim Tecnos control unit. This machine comes with a punching force of 300 kN. It includes a box of single tools, and a 6 station multi-tool and inserts. It presents good working conditions.

Overview

brand: FIM
year: 1999
MODEL: Vulcano 30/1000CNC
application type: Punching
Location: Ireland
machine type: Turret Punch Press
availability: Sold

Technical Information - FIM Vulcano 30/1000CNC

General Data

Measurements width: 4200 mm
Measurements depth: 3800 mm
Measurements height: 2250 m MM
Machine weight: 6500 kg

Control Unit

Model: Tecnos
CNC main language: English

Main drive

Punching force: 300 kN
Maximum sheet thickness: 6,35 mm

Movement

X-AXIS Movement: 1145 mm
Y-AXIS Movement: 2100 mm

Workpiece

Workpiece x: 1000 mm
Workpiece y: 4000 mm

Tools

Number of stations: 1

Max Material thickness

Steel: 6,35 mm

Media

Main electronic connection: 400 V

Additional equipment

- Comes with a box of single tools
- Comes complete with a 6 station multi-tool and inserts
- Perimeter Light Guards

Additional Information

Machine history

Material type: Mildsteel
Material thickness: 2 mm
End product: Cladding
Industries: Roofing

Machine Benefits

Technical Machine Benefits:
- - Simple use machine
- - Small footprint
- - Box of tooling included
- - Max punching diameter up to 88. 9mm
- - 320 strokes per minute max
- - Machine does not have tool rotation
Qualitative Machine Benefits:
- - Very good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
