Ferromatik MAXIMA 1000 Monos Injection Moulding Machine

Show in original language

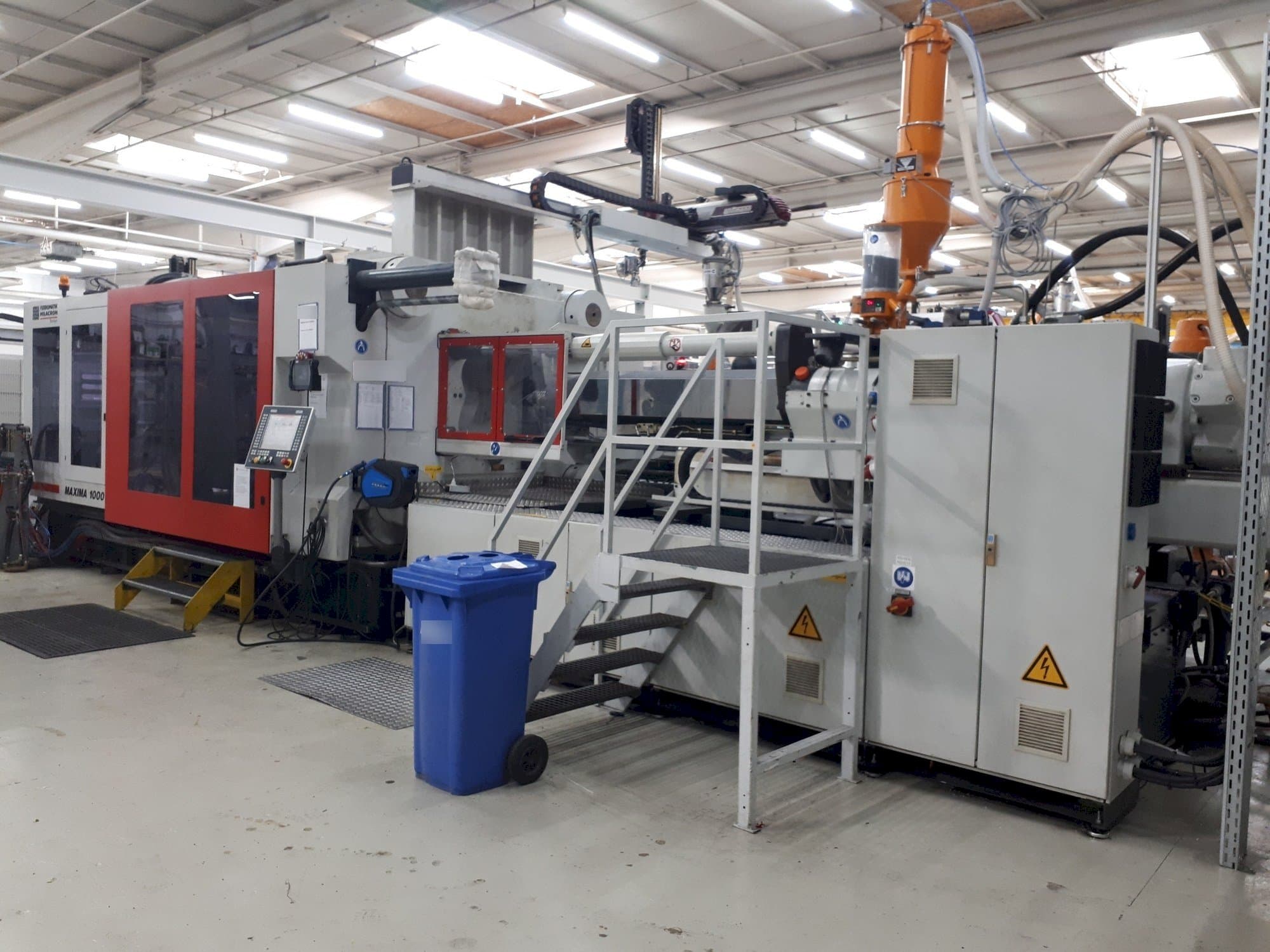

This Ferromatik MAXIMA 1000 Monos Injection Moulding Machine was built in the year 2008. It shows a production record of 50876 hours. It is operated through a Ferromatik MILACRON control unit. The machine is capable of operating with a clamping force 10000 kN, clamping ejector stroke 300 mm, mould installation height between 500 - 1300 mm. It can works with a screw diameter 110 mm and their a speed up to 171 rpm.

Overview

brand: FERROMATIK
year: 2008
MODEL: MAXIMA 1000 Monos
production hours: 50876
application type: Injection Moulding
Location: Poland
machine type: Hydraulic Injection Moulding Machine
availability: Sold

Technical Information - FERROMATIK MAXIMA 1000 Monos

General Data

Measurements width: 10450 mm
Measurements depth: 3180 mm
Measurements height: 2820 mm
Machine weight: 54000 KG

Control Unit

Model: MILACRON MOSAIC

Injection Unit

Screw diameter: 110 mm
Shot weight: 3805 g
Injection pressure: 1582 bar
Screw speed: 171 rpm

Clamping unit

Clamping force: 10000 kN
Mould height min: 500 mm
Mould height max: 1300 mm
Size of mold platens: 2000 x 1605 mm
Ejector stroke: 300 mm
Ejector force for / back: 166 kN

Additional Information

Machine Benefits

Technical Machine Benefits:
- - No. Of injection units: 1
- - Opening path by min. Mould installation height: 1900 mm
- - Opening path by max. Mould installation height: 1100 mm
- - Opening path (plate distance) max. : 2400 mm
- - Clear span between the holm (h x v): 1550 x 1200 mm
- - Hardened exchange rings, thickness 20 mm, both sides yes
- - Ejector chamber depth: 240mm
- - Ejector passage through the traverse, diameter movable plate: 200 mm
- - L/d-ratio of injection unit: 20
- - Screw drive type: hydraulic
Qualitative Machine Benefits:
- - Ceramic heating tape includes
- - Plastification power (ps): 188 g/s
- - Injection power (ps): 1067 ccm/s
- - Theoretical shot volume: 4181 ccm
- - Hydraulic shot-off nozzle includes
- - Extruder with screw diameter 80 mm
- - Flange cooling controlled separately on screen included
- - Machine in good working condition, ready for tests

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
