Ferromatik Electra 100 Injection Moulding Machines

Show in original language

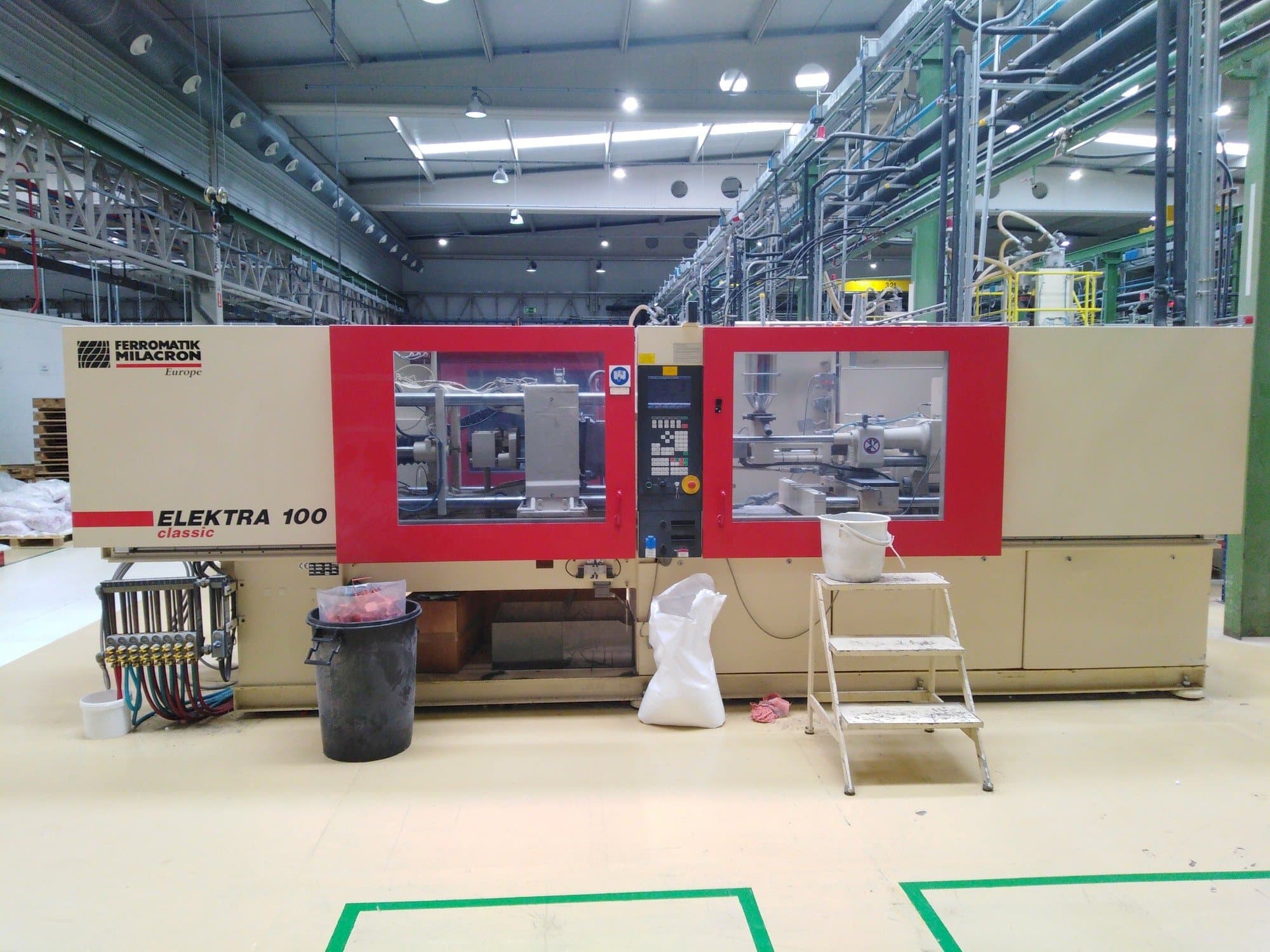

These Ferromatik Electra 100 Injection Moulding Machines were manufactured in the year 2001 in Germany. There are 3 machines of this same model, from which each one has 39000, 54000 and 37000 working hours respectively. They incorporate clamping force of 1000 kN and an injection pressure of 2050 bar.

Overview

brand: FERROMATIK
year: 2001
MODEL: Electra 100
production hours: 39000
application type: Injection Moulding
Location: Spain
machine type: Electrical Injection Moulding Machine
availability: Sold

Technical Information - FERROMATIK Electra 100

General Data

Measurements width: 5800 mm
Measurements depth: 1500 mm
Measurements height: 2140 mm
Machine weight: 6930 kg

Control Unit

Model: 33/44
CNC main language: English
CNC language customizable: Yes

Injection Unit

Screw diameter: 25 mm
Stroke volume: 49 CM³
Injection pressure: 2050 bar
Plasticizing rate max.: 38 g/s PS
Screw speed: 400 rpm
Heating capacity: 38 kW

Clamping unit

Clamping force: 1000 kN
Opening stroke: 400 mm
Distance between bars: 920 mm
Mould height min: 250 mm
Mould height max: 520 mm
Ejector stroke: 150 mm
Ejector force for / back: 73 kN

Media

Main electronic connection: 400 V

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
