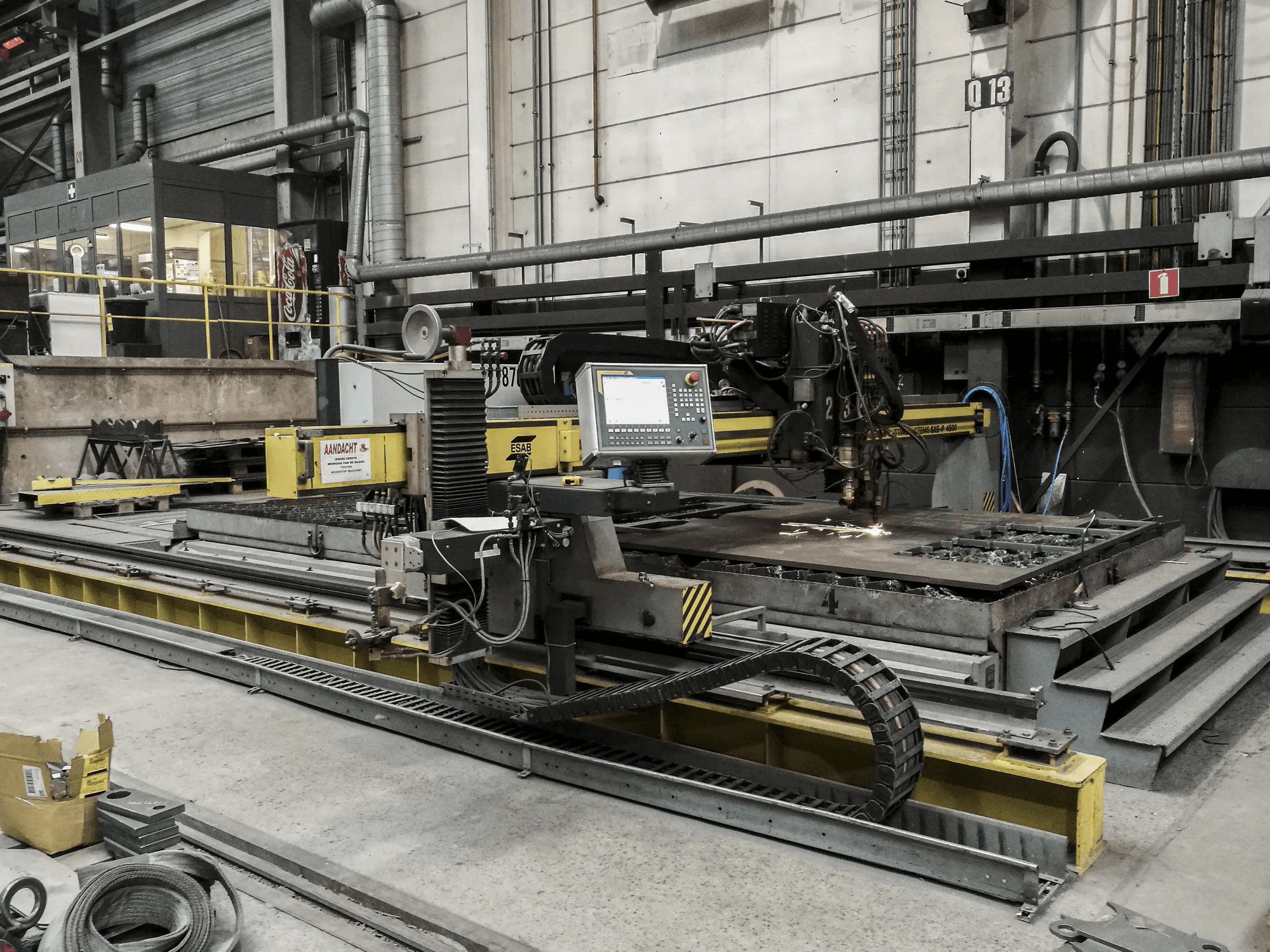

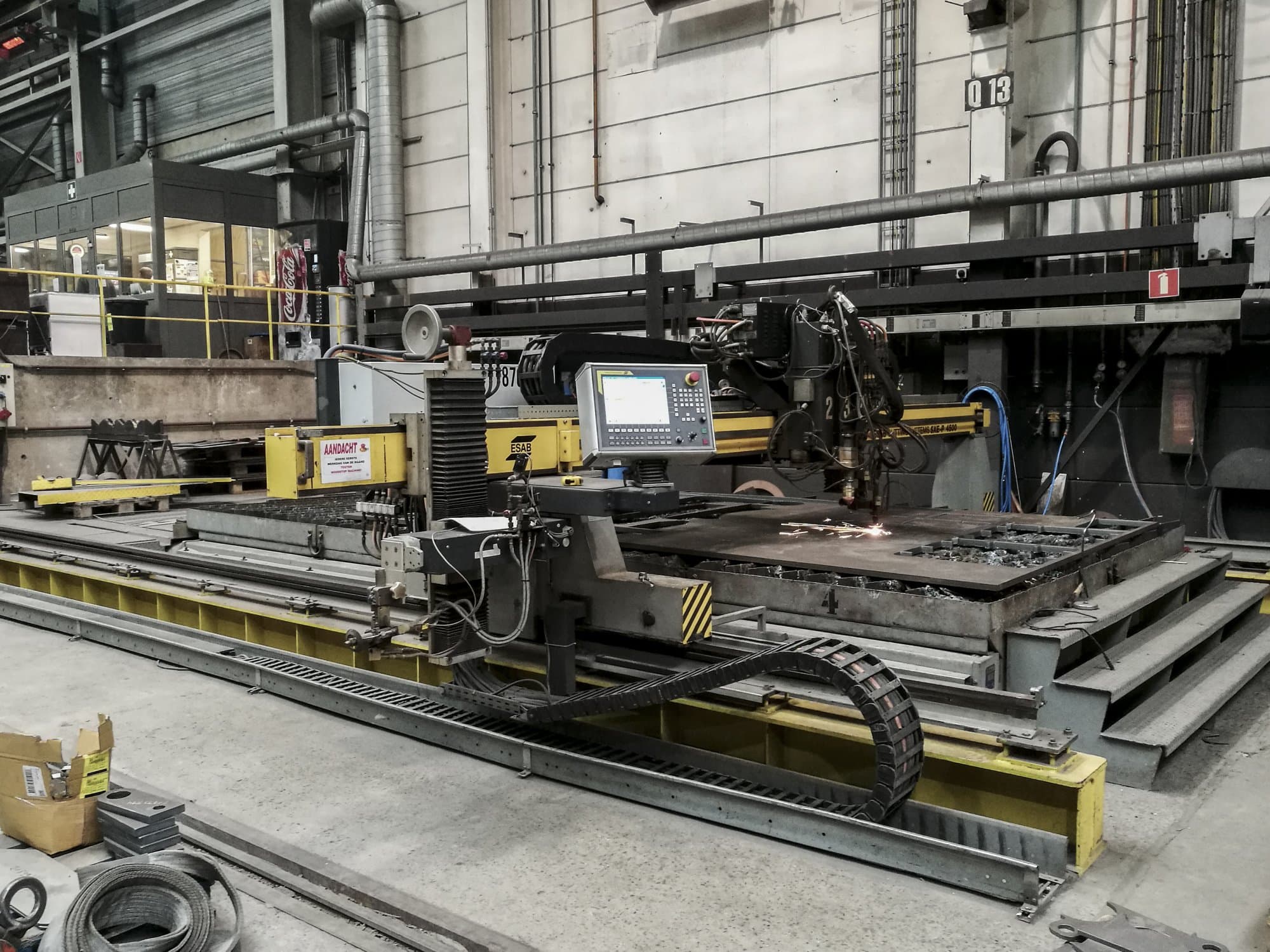

ESAB SUPRAREX SXE-P 4500 Plasma Cutting Machine

Show in original language

This ESAB SUPRAREX SXE-P 4500 Plasma Cutting Machine was manufactured in 1993 in Belgium and has a working record of only 2403 production hours. This machine, which is operated through a ESAB VISION 55 Control unit, was fully refurbished in 2010 and got a new plasma source, steering, burners and new cables installed. Beside a special program for pipe cutting, this machine is able to proceed steel sheets up to 100 mm of thickness and comes with a wide range of additional equipment.

Overview

brand: ESAB
year: 1993
MODEL: SUPRAREX SXE-P 4500
production hours: 2403
application type: Cutting
Location: Belgium
machine type: Plasma Cutting Machine
availability: Sold
control unit brand: ESAB

Technical Information - ESAB SUPRAREX SXE-P 4500

General Data

Measurements width: 6000 mm
Measurements depth: 1000 mm
Measurements height: 1500 mm
Machine weight: 2500 kg

Control Unit

Brand: ESAB
Model: VISION 55

Movement

X-AXIS Movement: 3500 mm
Y-AXIS Movement: 6500 mm
Z-AXIS Movement: 200 mm
V-AXIS Movement: 6000 mm

Workpiece

Workpiece x: 3000 mm
Workpiece y: 6000 mm
Workpiece weight: 2106 kg

Max Material thickness

Steel: 100 mm
Stainless steel: 30 mm

Media

Main electronic connection: 380 V
Power consumption: 120 kVA

Additional equipment

- 1x Filter Unit Nedermann Filtermax
- 1x Ventilator NCF 80/20
- 1x Frequency control of the ventilator
- 1x Turning table system
- 1x M3-Plasma source 201 (32mm cutting range)
- 2x Autogenous welding headers

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
