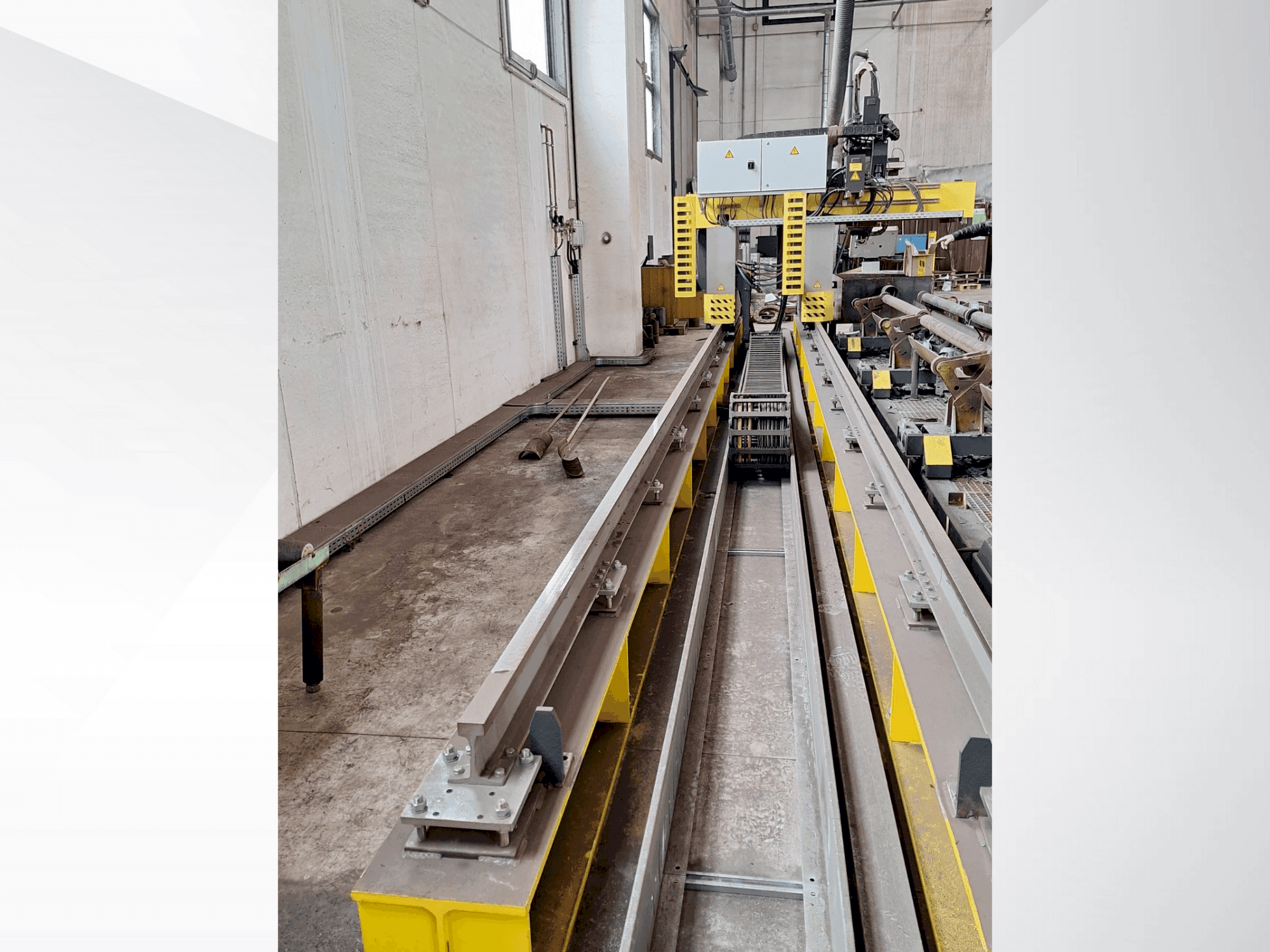

ESAB - SUPRAREX 3100IT-CUT-ESA-2020-00001

Additional equipment

• - Cutting with Bevel and V and Y Bevels
• - X-axis with a guide length of 11,000 mm and dual motorization
• - 1 synchronized axis spindle for tube cutting1 synchronized axis spindle for tube cutting
• - 3 tube support carriages manually positioned via trapezoidal screw
• - 1 carriage for the ESAB iSeries300 plasma generator with a maximum power of 300A
• - 1 VBA WRIST bevel cutting unit
• - Plasma torch collision protection system
• - Torch height control with arc voltage and touch sensor for bevel cuts
• - 1 safety system made with photocells
• - 1 ESAB PIPE CUTTING programming software

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Maximum tube length: 8000 mm
  • - Tube diameter: 100 mm - 750 mm
  • - Tube thickness: 3 mm - 20 mm
  • - Cutting with bevel and v and y bevels
  • - Flat cutting table equipped with slats, dimensions 1,500 x 1,000 mm
  • - Manuals and ce certification
  • - Tangential control during cutting
  • - Ability to create v or y grooves
  • - Plasma gas options: air/o2/ar-h2/n
  • - Shielding gas options: air/n2/o2/h2o
• Qualitative Machine Benefits:
  • - Iseries300i plasma generator features:rated current output: 300a
  • - Current adjustment range: 5/300a
  • - Supplied voltage: 180v
  • - Power supply: 380v 50/60hz
  • - Duty cycle at 40°c: 100%
  • - Esab vision t5 cnc with an 18. 5" color touch screen monitor (glove-friendly), including the opwizard application

Extra information

• - Machine still under power
