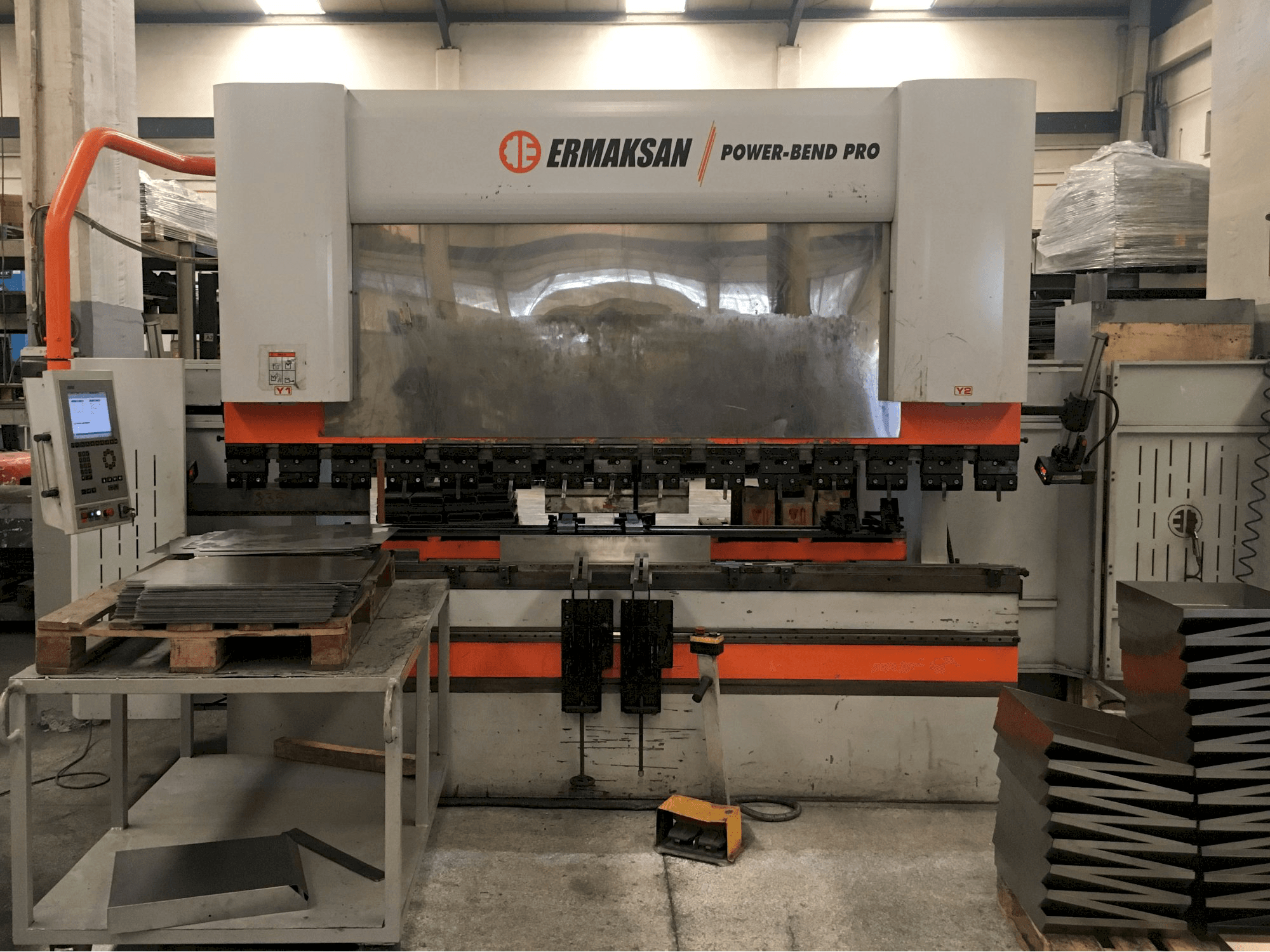

ERMAKSAN POWER-BEND PRO 3100x220 Bending Machine

Show in original language

This ERMAKSAN POWER-BEND PRO 3100x220 Bending Machine from 2014 was made in Turkey and counts with 15400 production hours. Equipped with a ERMAKSAN ER70 Control unit, this machine has mainly worked with carbon steel sheets up to 10 mm of thickness in the past, for the production of components for boilers and hearting elements. It stands out for incorporating 4 axis (X-,Y1, Y2and R).

Overview

brand: ERMAKSAN
year: 2014
MODEL: POWER-BEND PRO 3100x220
production hours: 15400
application type: Bending
Location: Turkey
machine type: Press Brake
availability: Sold

Technical Information - ERMAKSAN POWER-BEND PRO 3100x220

General Data

Measurements width: 2250 mm
Measurements depth: 4550 mm
Measurements height: 2850 mm
Machine weight: 11000 kg

Control Unit

Model: ER70
CNC main language: Turkish
CNC language customizable: Yes

Main drive

Pressing force: 220 kN
Bending length: 3100 mm

Max Material thickness

Steel: 10 mm

Media

Main electronic connection: 380 V / 50 Hz
Power consumption: 18.5 kVA

Additional equipment

- Front Laser Guards

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
