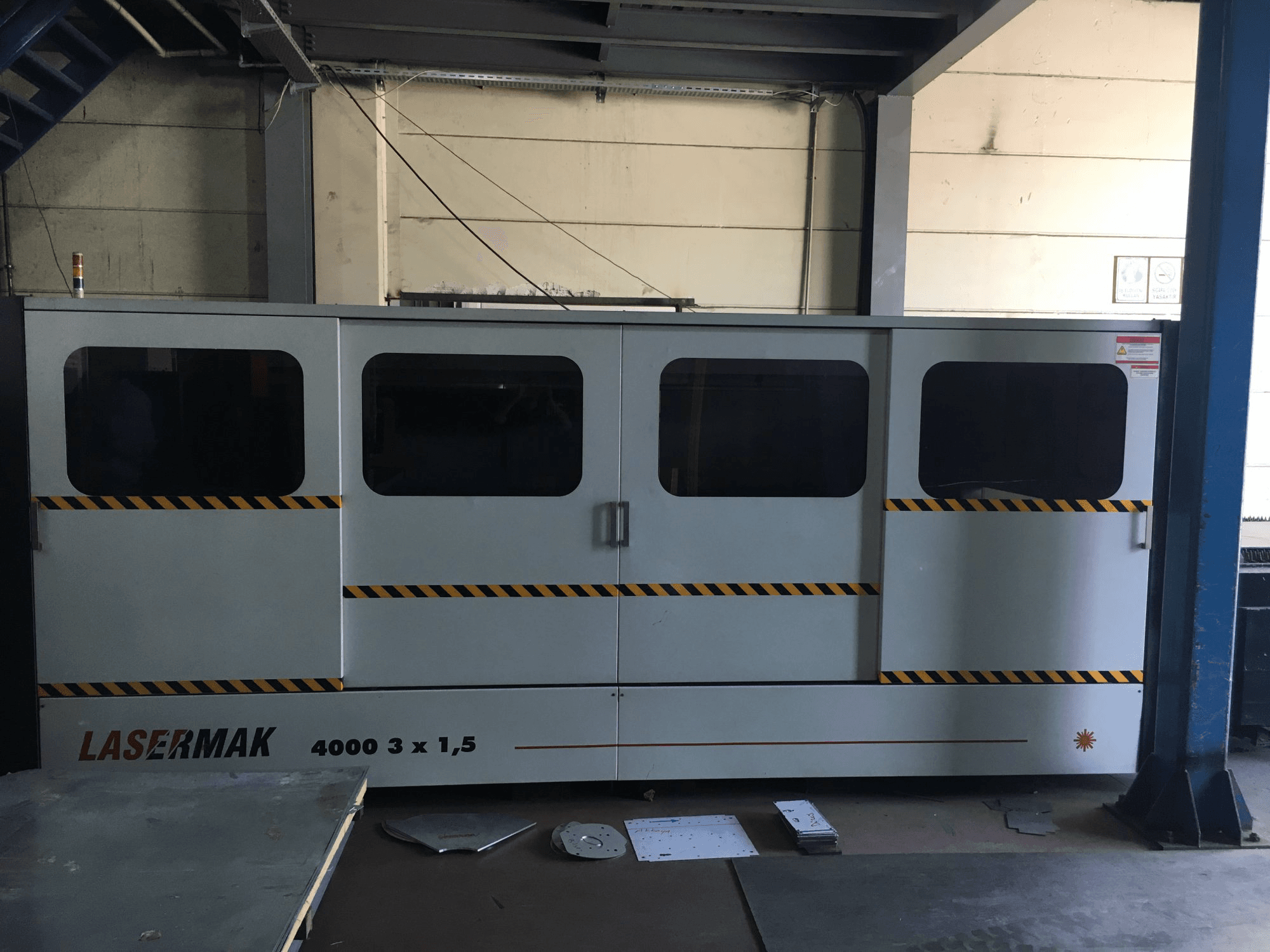

ERMAKSAN LASERMARK 4000 3x1,5 Laser Cutting Machine

Show in original language

This ERMAKSAN LASERMARK 4000 3x1,5 Laser Cutting Machine was manufactured in 2011 in Turkey, and has been operative for 35197 production hours ever since. With a Fanuc 16i LB Control unit, this machine has handled mainly carbon steel and stainless steel of up to 16 mm in thickness, producing parts for the automotive and the machinery industries. A Double Cutting Bed is included as additional equipment.

Overview

brand: ERMAKSAN
year: 2011
MODEL: LASERMARK 4000 3x1,5
production hours: 35197
application type: Cutting
Location: Turkey
machine type: CO2 Laser Cutting Machine
availability: Sold
control unit brand: FANUC

Technical Information - ERMAKSAN LASERMARK 4000 3x1,5

General Data

Measurements width: 5285 mm
Measurements depth: 10480 mm
Measurements height: 2040 mm
Machine weight: 19500 kg

Control Unit

Model: Fanuc 16i LB
Brand: FANUC

Main drive

Laserpower: 4000 kW
Laser type: CO2
Laser brand: FANUC

Movement

X-AXIS Movement: 3020 mm
Y-AXIS Movement: 1540 mm
Z-AXIS Movement: 130 mm
W-Axis Movement: 3020 mm
X-Y-Simultaneous Movement: 2250 mm

Workpiece

Workpiece weight: 720 kg

Max Material thickness

Steel: 20 mm
Stainless steel: 12 mm
Aluminum: 8 mm

Media

Main electronic connection: 380 V
Power consumption: 65-90 kVA

Additional equipment

- Double Cutting Bed

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
