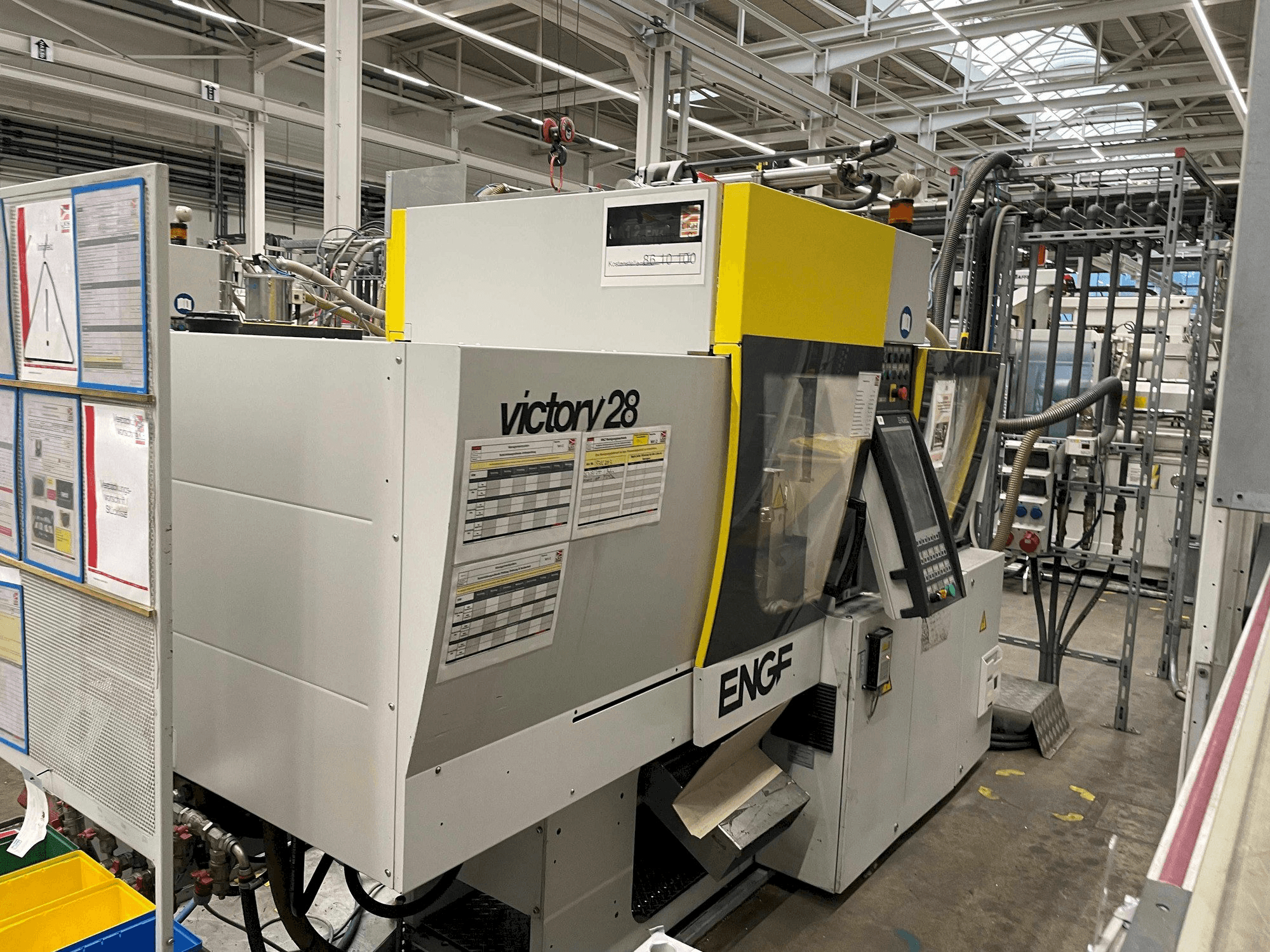

Engel Victory 200/28 Injection moulding machine

Show in original language

This Engel Victory 200/28 Injection moulding machine was manufactured in the year 2011 and has 60231 operating hours, handling: picker. It is equipped with an Engel control unit. The machine has a clamping force of 280 kN and a screw diameter of 22 mm.

Overview

brand: Engel
year: 2011
MODEL: Victory 200/28
production hours: 60231
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
availability: Sold
control unit brand: ENGEL

Technical Information - Engel Victory 200/28

Control Unit

Brand: ENGEL

Injection Unit

Screw diameter: 22 mm
Shot weight: 53
Injection pressure: 2402 bar
Plasticizing rate max.: 80cm3/s
Screw speed: 480 r/min
Nozzle pressure: 28,3 kn

Clamping unit

Clamping force: 280 kN
Opening stroke: 408 mm
Ejector stroke: 100 mm
Ejector force for / back: 39,8 kn

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Min. Wkz installation height (mm) : 150
- - Centring ring Ø (ds/as) :125 / 125
- - Max. Stroke volume (cm^3) 69
- - Core pulls: 1(bwap)
- - Number of channels: 1
- - Handling: sprue picker
- - Pump drive power: 15 kw

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
