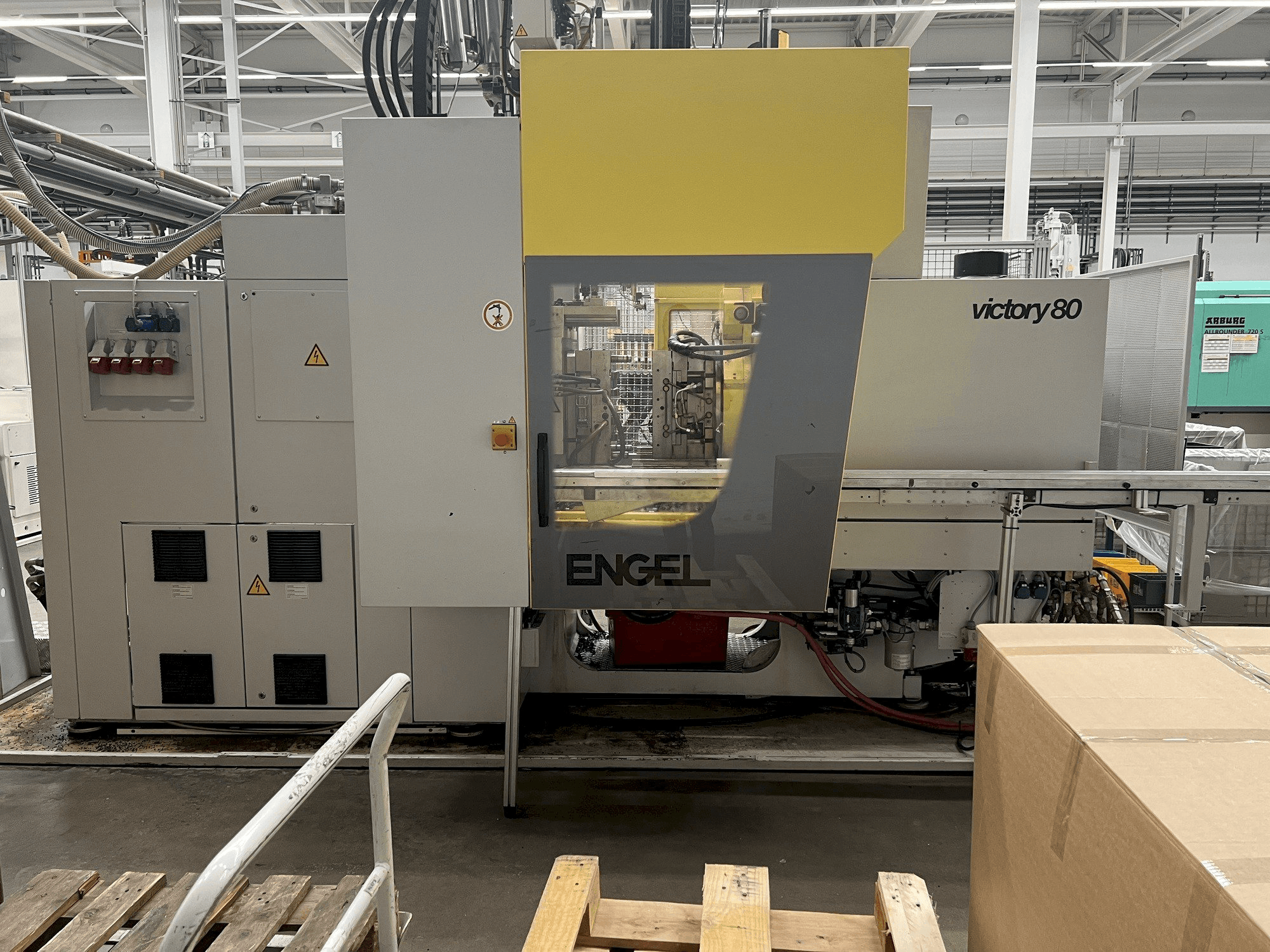

Engel VC 330H/80V/80CO Injection moulding machine

Show in original language

This Engel VC 330H/80V/80CO Injection moulding machine was manufactured in the year 2011 and has 45831 hours, of which 32201 are handling hours. It is equipped with an ENGEL control unit and has 3 axis. The machine has a clamping force of 800 kN and a screw diameter of 18-40 mm.

Overview

brand: Engel
year: 2011
MODEL: VC 330H/80V/80CO
production hours: 45831
application type: Injection Moulding
Location: Germany
machine type: Vertical Injection Moulding Machine
availability: Sold
control unit brand: ENGEL

Technical Information - Engel VC 330H/80V/80CO

Control Unit

Brand: ENGEL

Main drive

Number of axis: 3

Injection Unit

Screw diameter: 18-40 mm
Injection pressure: 1665 -2193 bar

Clamping unit

Clamping force: 800 kN
Opening stroke: 450 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Min. Wkz installation height : 200 mm
- - Centring ring Ø (ds/as) : 125/160
- - Max. Stroke volume (cm^3) 201/25
- - Core pulls: 2(bwap)
- - Kistler yes
- - Number of channels: 1
- - Handling: 3-axis cnc robot

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
