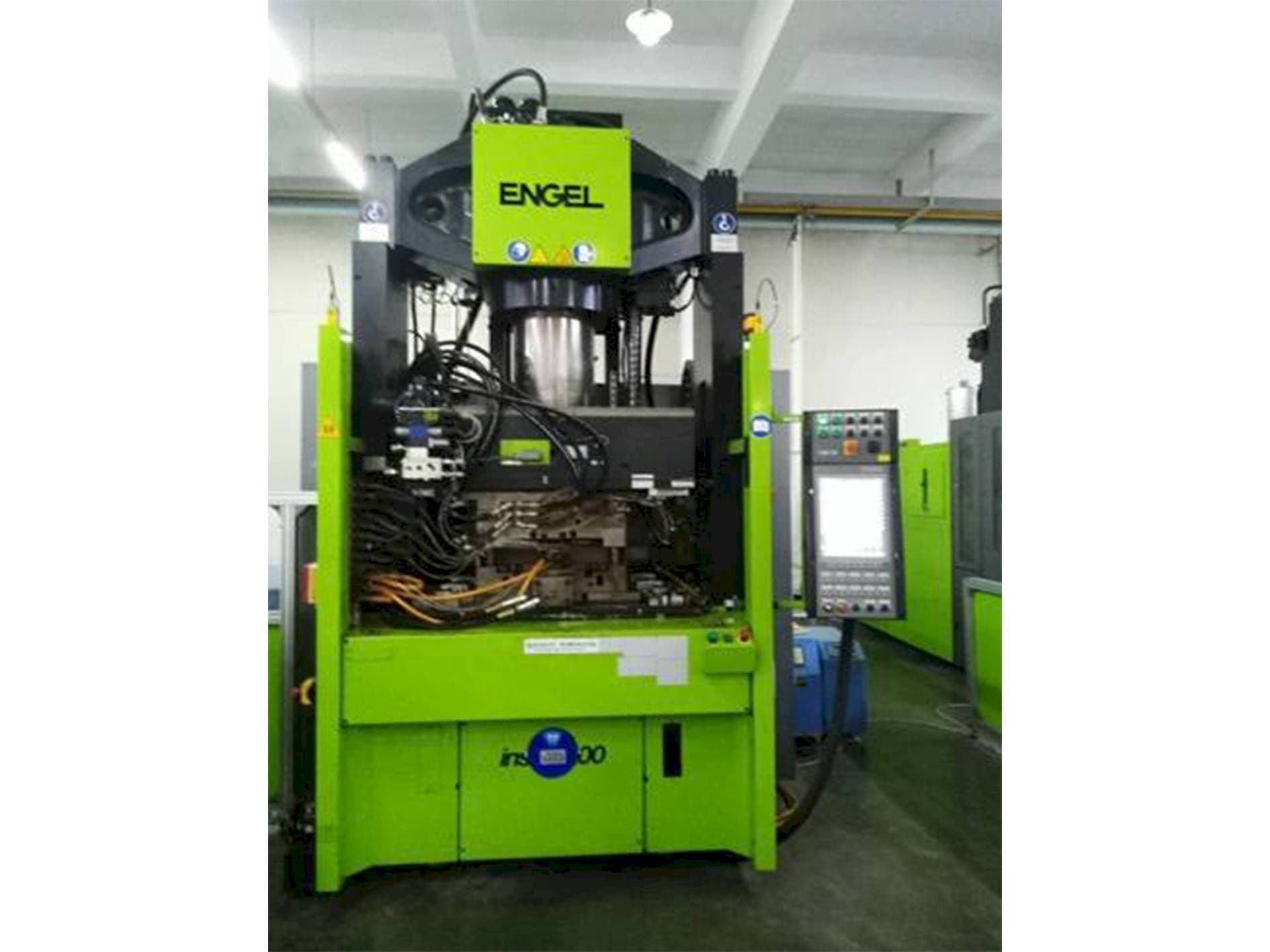

ENGEL insert 2550H/200 with MuCell injection moulding machine

Show in original language

This ENGEL insert 2550H/200 with MuCell injection moulding machine was built in 2014. It has a total of 6337 production hours and works with a CC200 control unit. This machine has a clamping force of 2500 kN, and a screw diameter of 60 mm installed in 2018. Also works with an injection rate of 1414 cm3/s and an injection pressure of 2396 bar.

Overview

brand: Engel
year: 2014
MODEL: insert 2550H/200 with MuCell
production hours: 6337
application type: Injection Moulding
Location: China
machine type: Vertical Injection Moulding Machine
availability: Sold
control unit brand: ENGEL

Technical Information - Engel insert 2550H/200 with MuCell

Control Unit

Model: CC200
Brand: ENGEL

Injection Unit

Screw diameter: 60 mm
Injection pressure: 2396 bar
Screw speed: 262 r/min

Clamping unit

Clamping force: 2500kN
Opening stroke: 406 mm
Ejector stroke: 160 mm
Ejector force for / back: 20,1 kN

Additional equipment

- Incl. MuCell / Trexel S-II MuCell
- New screw installed 2018

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max swept volume 877 cm3
- - Injection rate 1414 cm3/s
- - Nozzle stroke 750 mm
- - Increased clamping force from 2000kn to 2500kn
- - 2 core pulls stationary platen
- - 2 core pulls movable platen
- - P/q hydraulic valves for core pulls
- - Setting options for p/q valves
- - Euromap 67
- - Mico hydraulic quick clamping

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
