ENGEL insert 1350H / 200 with MuCell injection moulding machine

Show in original language

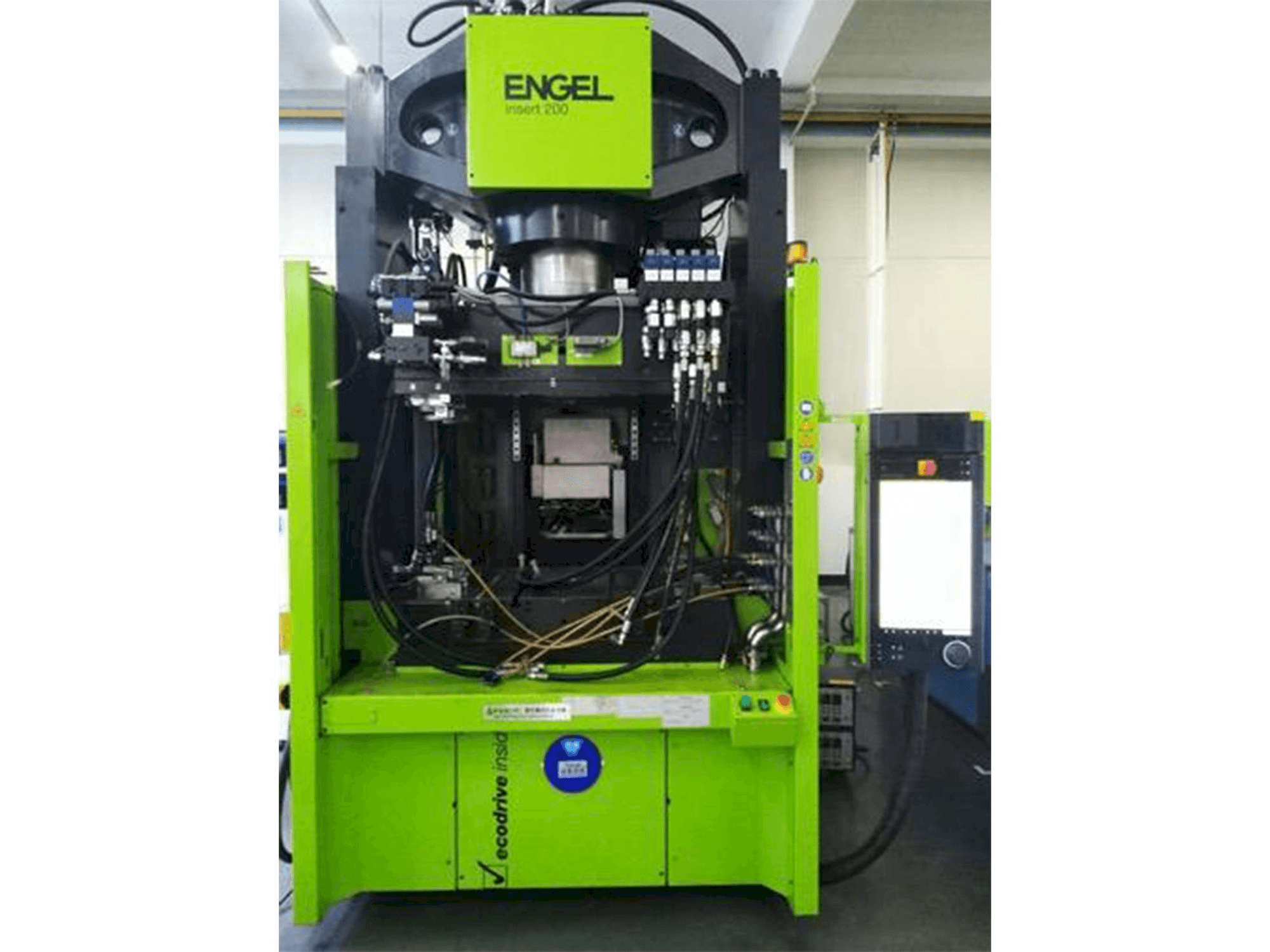

This ENGEL insert 1350H / 200 with MuCell injection moulding machine was built in 2015. It has a total of 18122 production hours and works with a CC300 control unit. This machine has a clamping force of 2500 kN, and a screw diameter of 55 mm. Also works with an injection rate of 330 cm3/s and an injection pressure of 1763 bar. 2 UNITS AVAILABLE

Overview

brand: Engel
year: 2015
MODEL: insert 1350H / 200 with MuCell
production hours: 18122
application type: Injection Moulding
Location: China
machine type: Vertical Injection Moulding Machine
availability: Sold

Technical Information - Engel insert 1350H / 200 with MuCell

Injection Unit

Screw diameter: 55mm
Injection pressure: 1763 bar
Screw speed: 254 r/min

Clamping unit

Clamping force: 2500 kN
Opening stroke: 405 mm
Ejector stroke: 160 mm
Ejector force for / back: 20,1 kN

Additional equipment

- incl. MuCell

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max swept volume 618 cm3
- - Injection rate 330 cm3/s
- - Nozzle stroke 500 mm
- - Increased clamping force from 2000kn to 2500kn
- - 2 core pulls stationary platen
- - 2 core pulls movable platen
- - P/q hydraulic valves for core pulls
- - Setting options for p/q valves
- - Euromap 67
- - Mico hydraulic quick clampin

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
