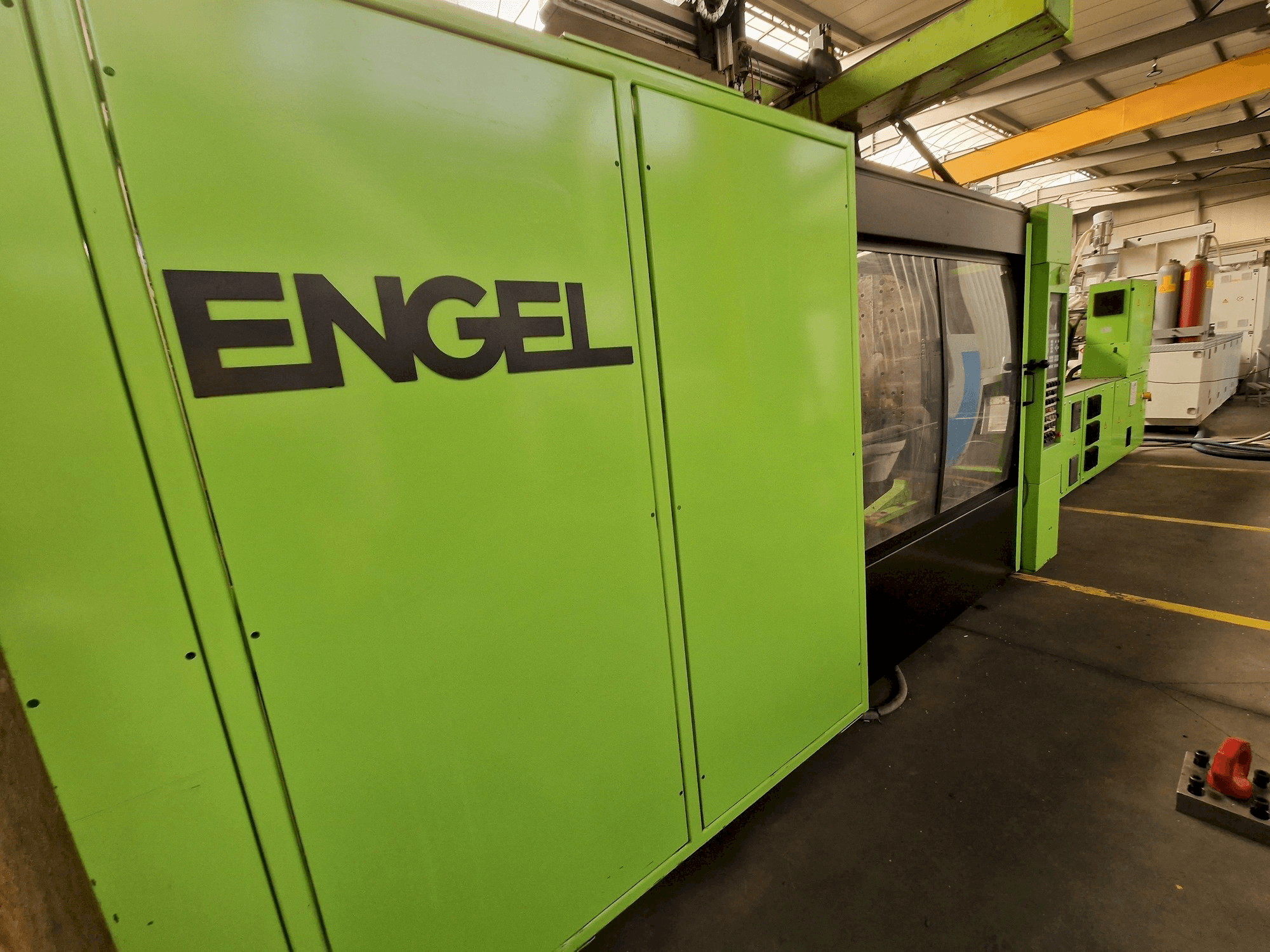

Engel ES4550/800 DUO Injection Moulding Machine

Show in original language

This Engel ES4550/800 DUO Injection Moulding Machine was built in the year 2001 and has 93386 hours. It is equipped with an Engel CC100 control unit. This machine has a clamping force of 8000 kN, an injection pressure of 1600 bar, and includes a Robot Engel ERC83/3-E.

Overview

brand: Engel
year: 2001
MODEL: ES4550/800 DUO
production hours: 93386
application type: Injection Moulding
Location: Poland
machine type: Hydraulic Injection Moulding Machine
availability: Sold
control unit brand: ENGEL

Technical Information - Engel ES4550/800 DUO

General Data

Measurements width: 9000 mm
Measurements depth: 3000 mm
Measurements height: 2800 mm
Machine weight: 44000 kg

Control Unit

Model: CC 100
Brand: ENGEL

Table

Outer length: 1650 mm
Outer width: 1470 mm

Injection Unit

Screw diameter: 105 mm
Shot weight: 3250 g
Stroke volume: 3380 CM³
Injection pressure: 1600 bar

Clamping unit

Clamping force: 8000 kN
Ejector stroke: 300 mm

Additional equipment

- Robot model: Engel ERC83/3-E

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Clearance between columns: 1170 x 1000 mm
- - Tool height: 500 x 1100 mm
- - Opening distance: 1800 mm
- - Max distance between the plates: 2300 mm
Qualitative Machine Benefits:
- - Machine in very good working condition, ready for tests

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
