ENGEL ES 200/50 HLST Injection Moulding Machine

Show in original language

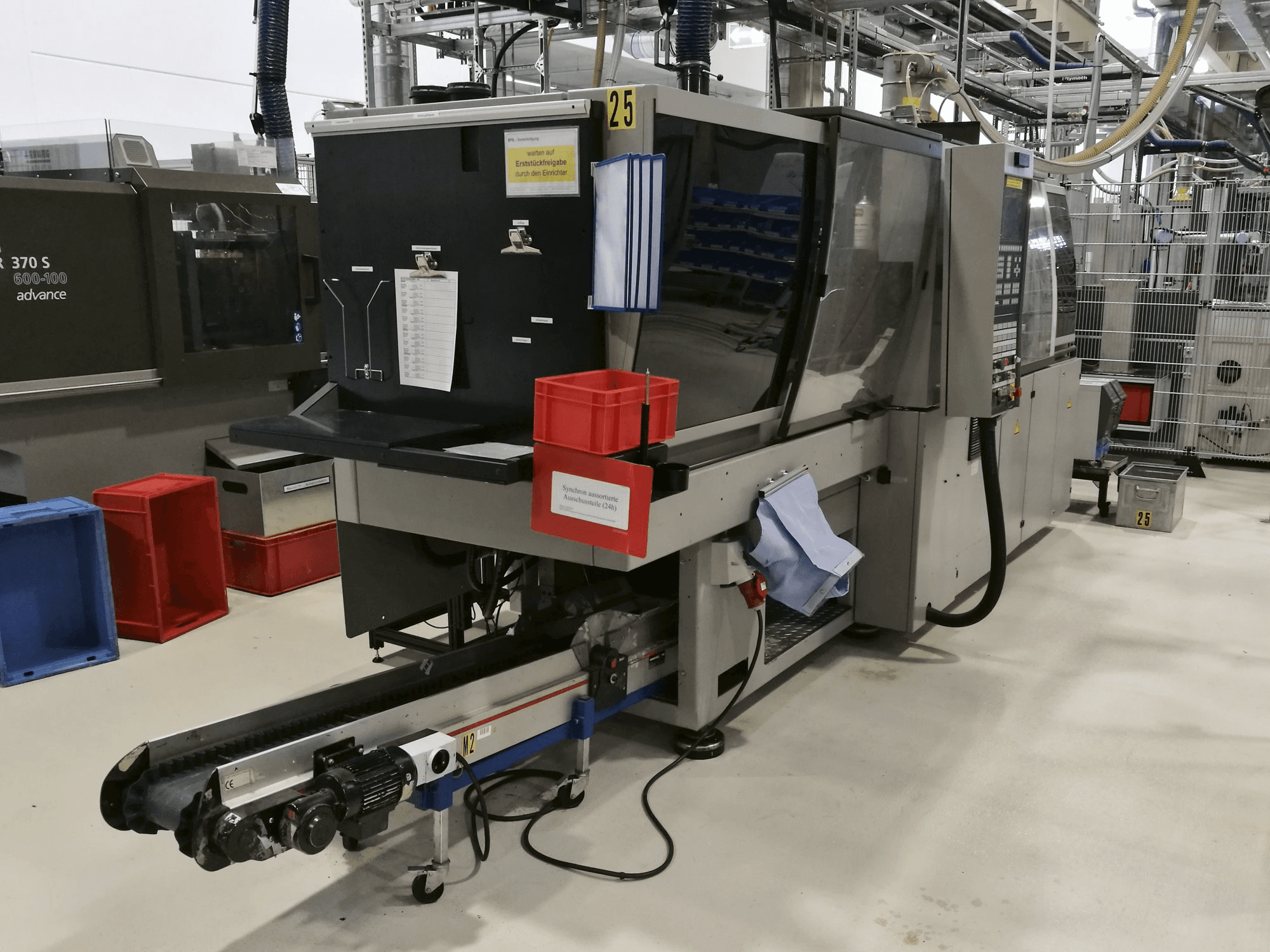

This ENGEL ES 200/50 HLST Injection Moulding Machine was manufactured in 1999 in Germany and has a working record of 48446 production hours. Operated through an ENGEL Control unit, this solid built machine incorporates a hydraulic drive and has worked with plastic as main material in the past.

Overview

brand: Engel
year: 1999
MODEL: ES 200/50 HLST
production hours: 48446
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
availability: Sold
control unit brand: ENGEL

Technical Information - Engel ES 200/50 HLST

General Data

Measurements width: 3810 mm
Measurements depth: 1300 mm
Measurements height: 2000 mm
Machine weight: 4700 kg
Type of drive: Hydraulic
Closure: Hydraulic

Control Unit

Brand: ENGEL

Injection Unit

Screw diameter: 25 mm
Stroke volume: 69 cm³
Injection pressure: 200 bar
Screw speed: 20-480 1/min
Heating capacity: 6.8 kW
Adjustable heating zones: 4
Nozzle pressure: 28 kN

Clamping unit

Clamping force: 500 kN
Opening stroke: 450 mm
Max open daylight: 650 mm
Distance between bars: 320 mm
Size of mold platens: 660 x 360 mm
Ejector stroke: 100 mm
Ejector force for / back: 40 kN

Media

Main electronic connection: 400 V / 50 Hz / 3 P
Power consumption: 22 kVA
Oil tank: 140 L

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
