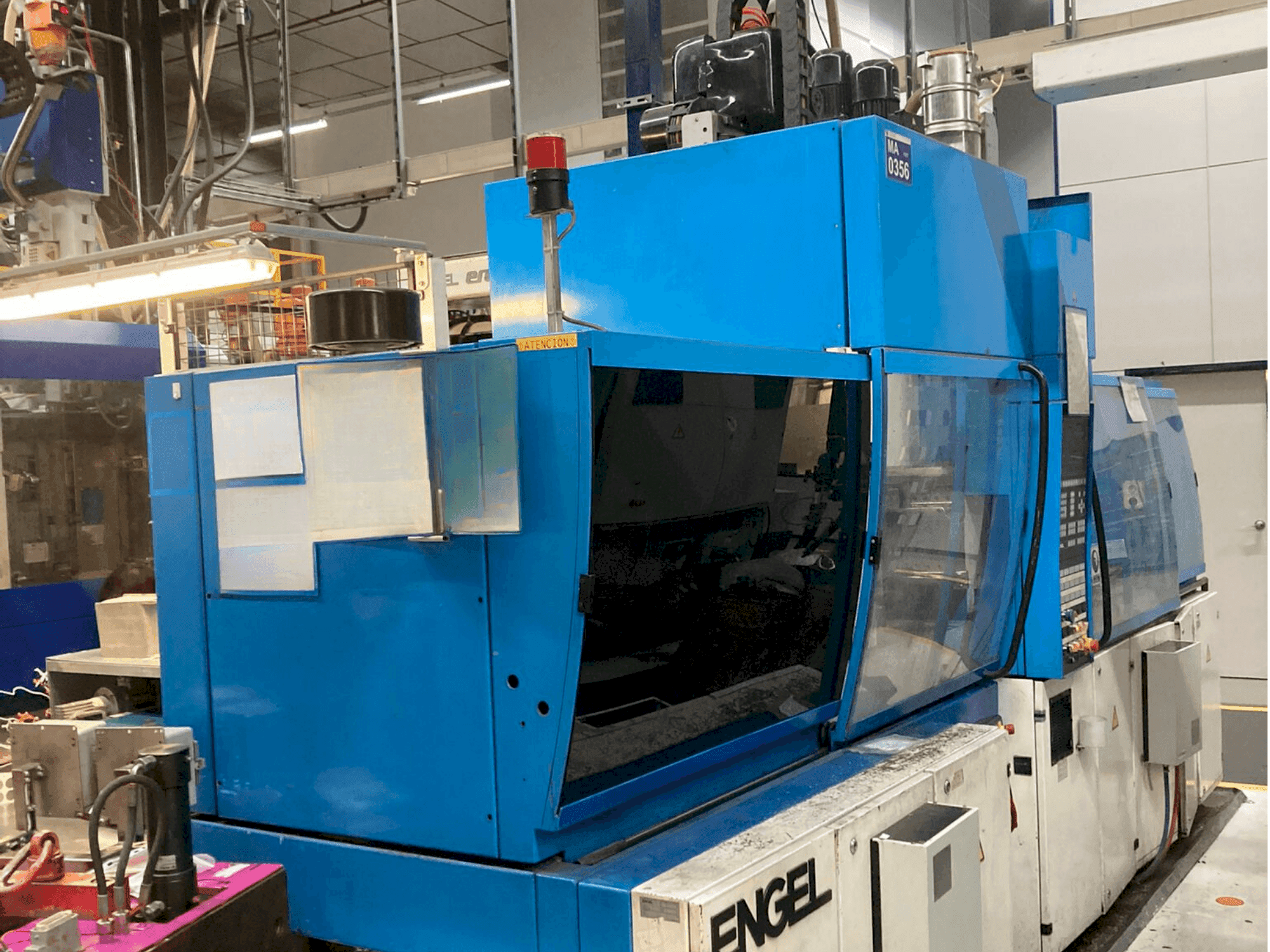

ENGEL ES 500/110 HL Injection moulding machine

Show in original language

This ENGEL ES 500/110 HL Injection moulding machine was manufactured in the year 2001 in Austria. The machine has a clamping force of 1100 kN and screw diameter 40mm. It comes with a linear robot ENGEL ERC 23/2-EA (2002). Production hours are at 98167.

Overview

brand: Engel
year: 2001
MODEL: 500/110 HL
production hours: 98167
application type: Injection Moulding
Location: Spain
machine type: Hydraulic Injection Moulding Machine
availability: Sold

Technical Information - Engel 500/110 HL

General Data

Measurements width: 4800 MM
Measurements depth: 1420 MM
Measurements height: 2000 MM
Machine weight: 6000 kg

Injection Unit

Screw diameter: 40 mm
Stroke volume: 251 cm3 CM³
Heating capacity: 9.2 kW
Adjustable heating zones: 4
Nozzle pressure: 50 kW

Clamping unit

Clamping force: 1100 kN
Opening stroke: 500 mm
Distance between bars: 750 mm

Additional equipment

- Linear robot ENGEL ERC 23/2-EA (2002)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
