EMAG - VTC 250 DUODE-TUR-EMA-2010-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

Show in original language

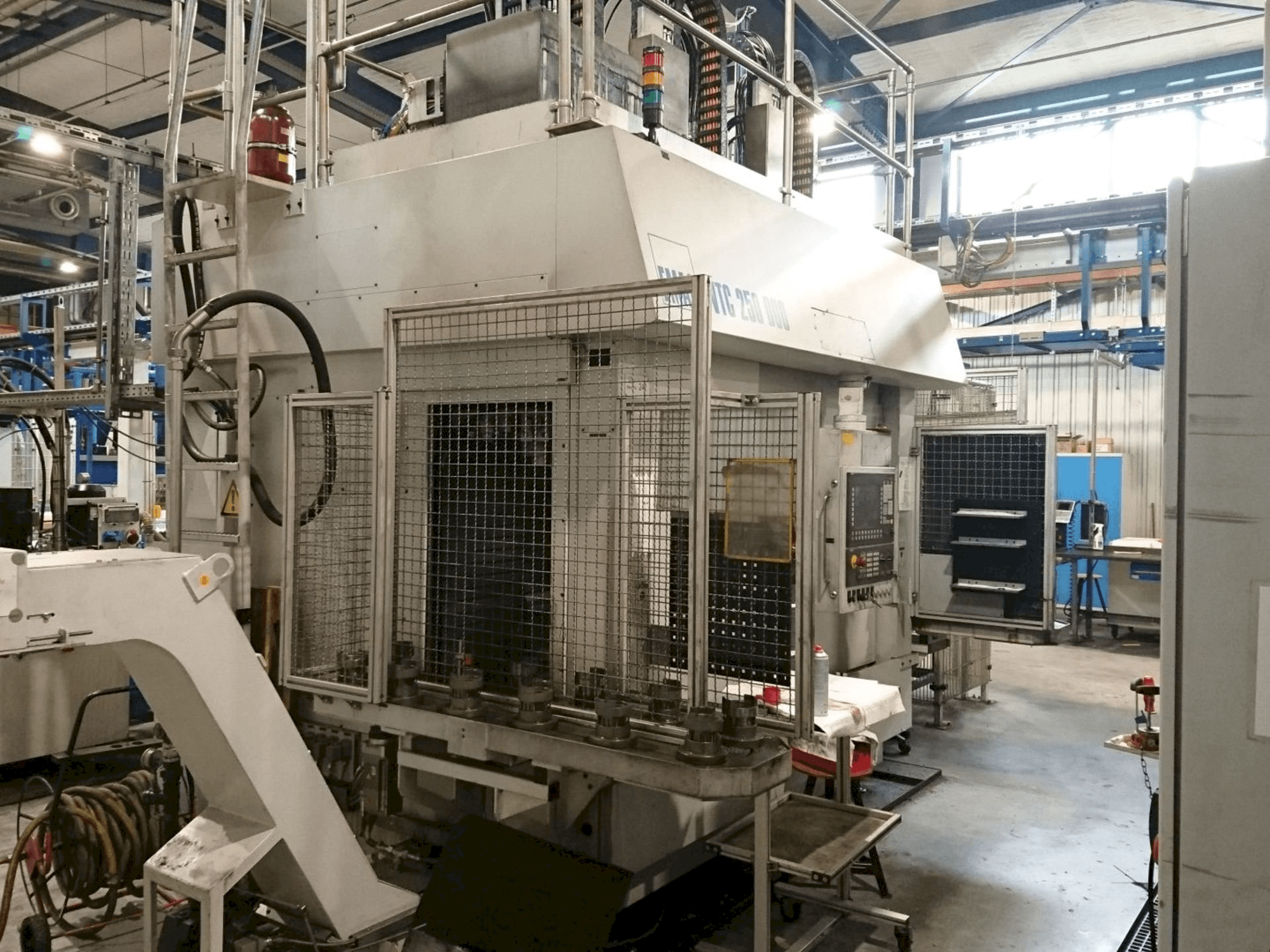

This EMAG VTC 250 DUO Lathe was built in 2010. It is equipped with a Siemens 840D control unit. This 3 axis machine can perform with a spindle speed up to 6000 rpm an a clamping force 2.4 kN.

Overview

brand: EMAG
year: 2010
MODEL: VTC 250 DUO
application type: Turning
Location: Germany
machine type: Vertical Turning Machine
availability: Sold
control unit brand: SIEMENS

Technical Information - EMAG VTC 250 DUO

General Data

Machine weight: 21000 kg

Control Unit

Model: 840D
Brand: SIEMENS

Main drive

Number of spindles: 1
Spindle speed range: 6000 1/MIN
Spindle motor power: 38 KW
Number of axis: 3

Movement

X-AXIS Movement: 300 MM
X-AXIS Feed Force: 9 KN
X-AXIS Rapid traverse: 30 M/MIN
Y-AXIS Movement: +- 25 mm
Z-AXIS Movement: 740 MM
Z-AXIS Feed Force: 10 KN
Z-AXIS Rapid traverse: 40 M/MIN

Workpiece

Workpiece weight: 20 KG

Tools

Type of tool holder: HSK63

Clamping unit

Clamping force: 2.4 KN

Media

Main electronic connection: 400 V 50 HZ
Power consumption: 70 KW
Internal cooling: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Torque: 15 nm/3,5 kw
- - Disc turret with 11 driven tools and 1 workpiece gripper (vdi 40)
- - Tool holders cdi 68 with capto c4
- - Clamping Ø: 90mm
- - Chuck diameter: max. 250 mm
- - Workpiece Ø: max. 140 mm
- - Workpiece length: max. 630 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
