EMAG - VL 3HU-TUR-EMA-2006-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

Show in original language

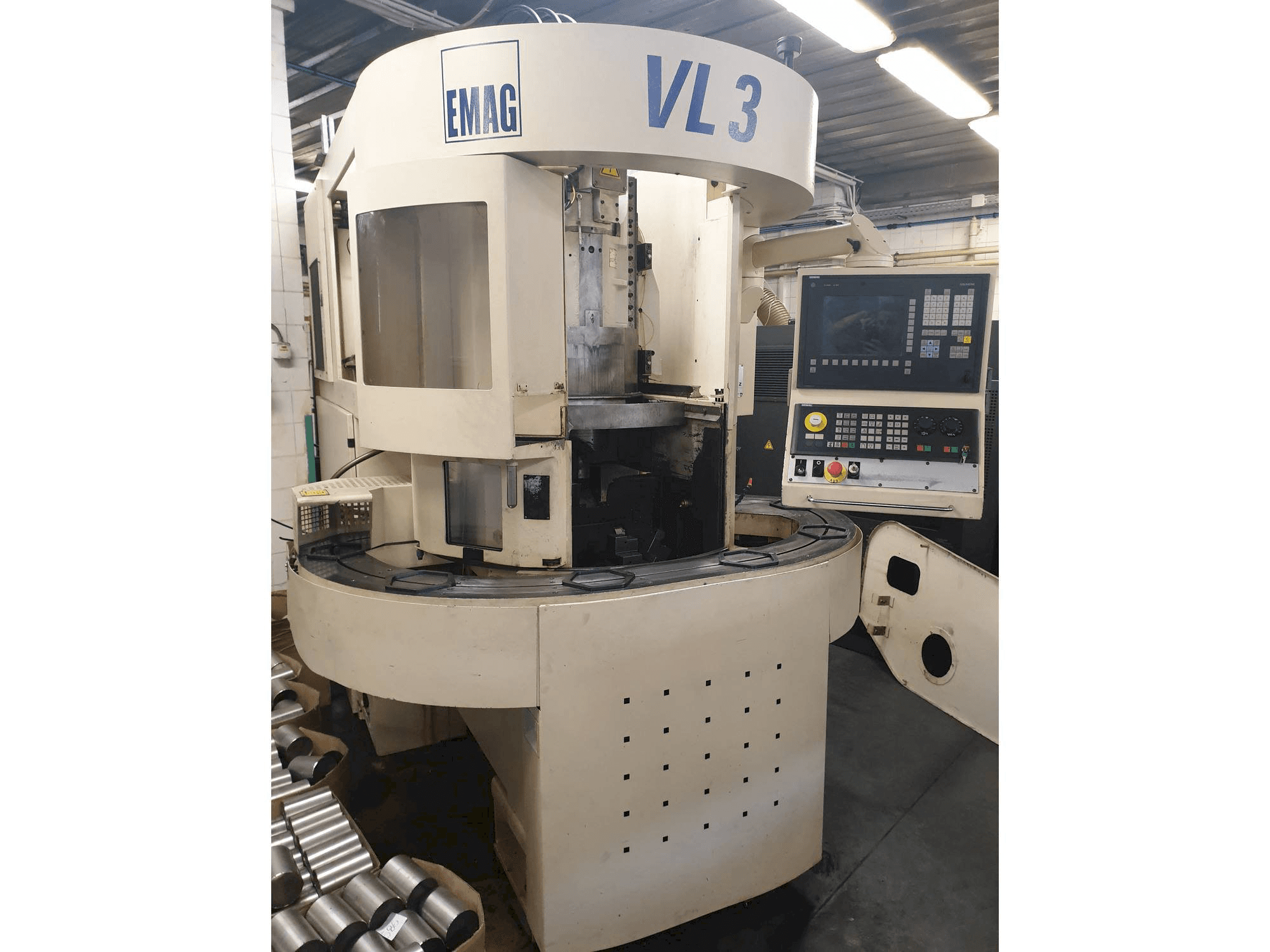

This EMAG VL 3 Lathe was manufactured in the year 2006. It is equipped with a SIEMENS SINUMERIK control unit. The machine has a spindle speed of 7500 rpm.

Overview

brand: EMAG
year: 2006
MODEL: VL 3
application type: Turning
Location: Hungary
machine type: Vertical Turning Machine
availability: Sold
control unit brand: SIEMENS

Technical Information - EMAG VL 3

General Data

Measurements width: 2500 mm
Measurements depth: 1900 mm
Measurements height: 2300 mm
Machine weight: 5500 kg

Control Unit

Model: SINUMERIK
Brand: SIEMENS

Main drive

Spindle speed range: 7500 1/MIN

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Turning diameter 210 mm
- - Max. Chuck diameter 210 mm
- - Max. Spindle power ed 10-40/100% 25/16 kw
- - Main spindle size gr. 5 (din 55026)
- - Axes on the spindle unit x/z
- - Feed rate x/y/z 5000/-/5000 n
- - Main spindle travels x/y/z 400/-/200 mm
- - Max. Rapid traverse speed x/y/z 60/-/30 m/min
- - Lower revolver 12 tools
- - Tool holders vdi 40, driven tool revolution 6000 1/min

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
