➤ Used Dugard Eagle 200 For Sale | gindumac.com

Show in original language

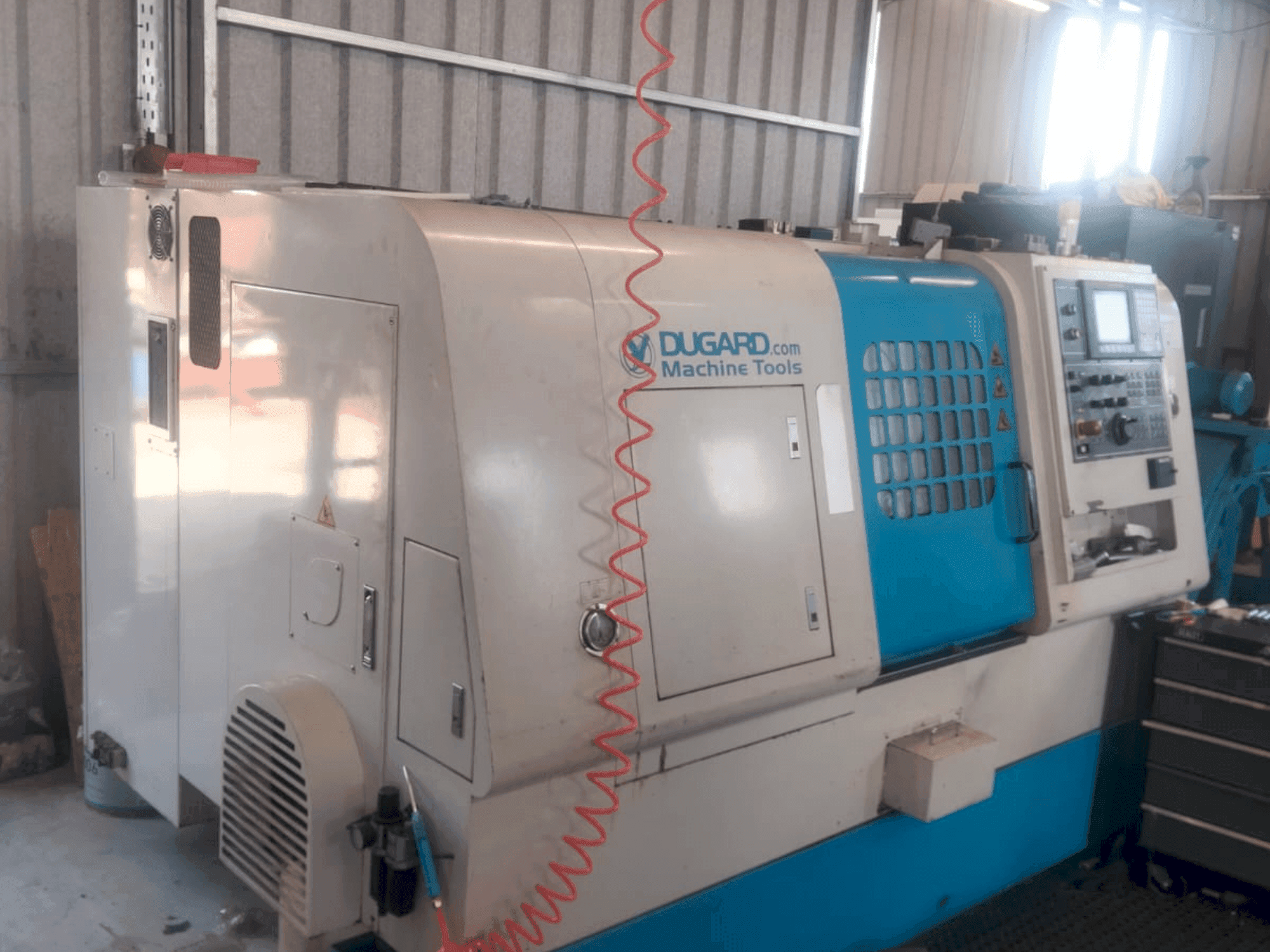

This Dugard Eagle 200 lathe was manufactured in 2006. Ideal for precision machining, it offers robust performance and reliability. A great opportunity to buy this Dugard Eagle 200 lathe. Contact us for further details.

Overview

brand: Dugard
year: 2006
MODEL: Eagle 200
application type: Turning
Location: Ireland
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - Dugard Eagle 200

General Data

Measurements width: 2430 mm
Measurements depth: 1930 mm
Measurements height: 2570 mm
Machine weight: 3850 kg

Control Unit

Model: Series Oi Mate-TC
CNC main language: English
CNC language customizable: Yes
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 4500 rpm 1/MIN
Spindle motor power: 7.5/11 kW
Number of axis: 2

Movement

X-AXIS Movement: 176 mm
Z-AXIS Movement: 520 mm

Workpiece

Workpiece drm: 280 mm
Workpiece z: 508 mm

Additional equipment

- Bed Saddle and Tilting Angles: 45°
- Cone Degree of Inner Hole in 8" Main Shaft: 1/20
- Tool Turret Type: Hydraulic press type
- Hole Diameter of Boring Tool / Location: φ 32 mm / 5
- Turning Tool Sections / Location: □ 20 mm × 20 mm / 5
- Tailstock Axis Diameter: φ 75 mm // Tailstock Stroke: 425 mm
- Quill Type: Fix Quill // Quill Taper: MT No. 4 // Quill Stroke: 100 mm
- Coolant Device Motor: 180 W (1/4 HP) // Cutting Conveyor Motor: 180 W (1/4 HP)
- 6 x Tool Holders
- Swarf Conveyor

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Workpiece diameter: 470 mm
- - Max. Workpiece length: 508 mm
- - Z axis servo motor: 1. 4 kw (1. 8 hp) //z axis fast feeding rate: 30 m/min (1181"/min)
- - X axis servo motor: 1. 4 kw (1. 8 hp)
- - X axis fast feeding rate: 30 m/min (1181"/min)
- - Spindle hole diameter of main shaft / pull rod diameter: φ 62 mm / φ 52 mm
- - Spindle nose: asa a2-6
- - Hydraulic motor: 750 w (1 hp)
- - Height from bed foot to spindle center: 900 mm // height from bed to spindle center: 290 mm
- - 2 axis cnc lathe with tailstock
Qualitative Machine Benefits:
- - Used on light material only

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
