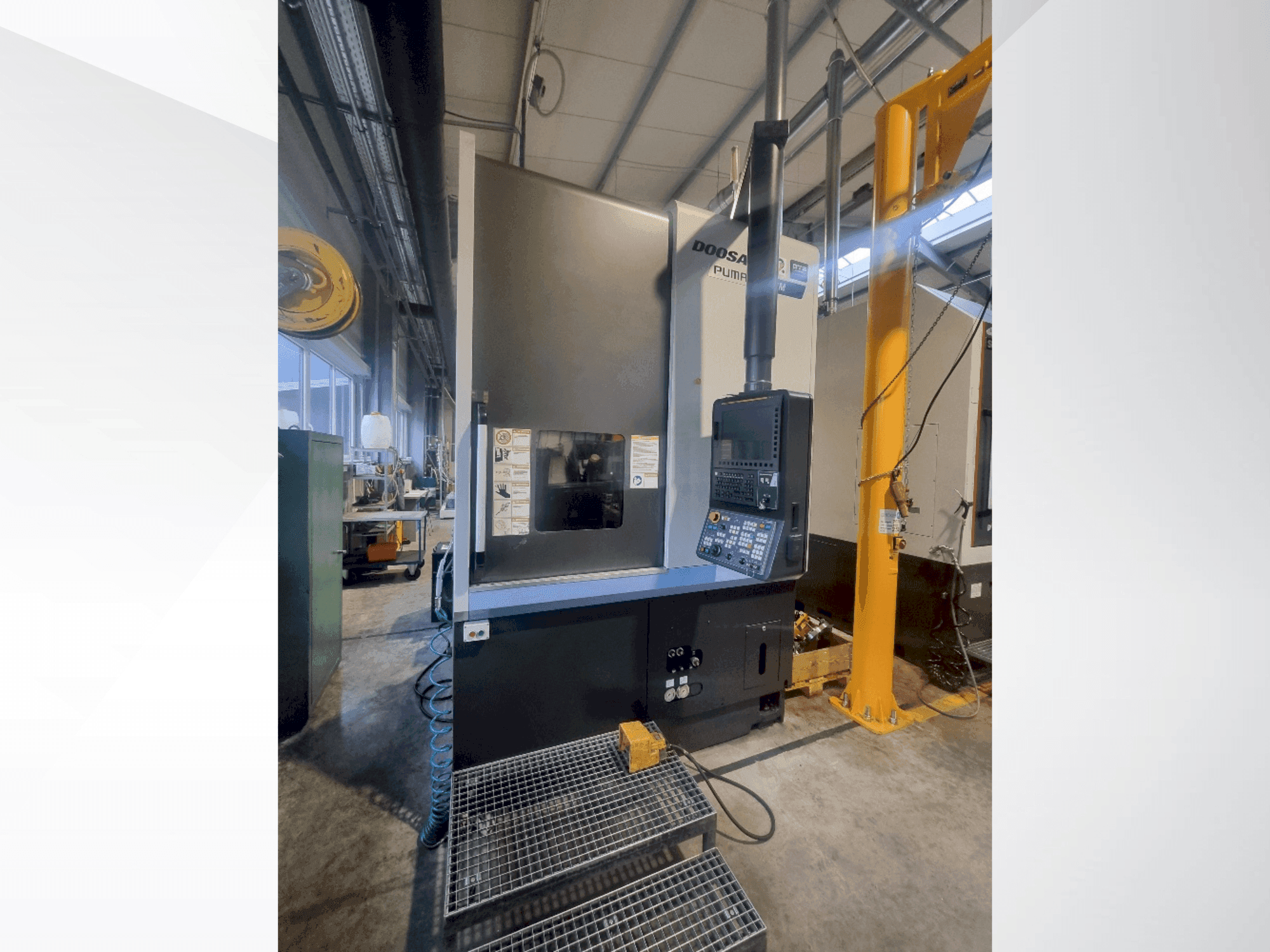

DOOSAN V8300MR (2020) Lathe

Show in original language

This DOOSAN V8300MR Lathe was manufactured in the year 2020 in Germany. It is equipped with a FANUC 0iTF Control unit. The machine has a 1 BMT75 Driven Turret with 12 positions (7.5kW, 4500 rpm), a Chip Conveyor with Belt and an axis/spindle Load Monitoring System with triple signal light. It is included a Hydraulic Chuck 15" (380[mm]) and a Standard tool kit: 2 Straight Driven Tools, 2 Angular Driven Tools, 1 Set of Tool Holders for Turning Knives and a Hard Jaws 15" (1 Set: 3 Pieces).

Overview

brand: DOOSAN
year: 2020
MODEL: V8300MR
application type: Turning
Location: Slovenia
machine type: Vertical Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - DOOSAN V8300MR

Control Unit

Model: 0iTF
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 2000 1/MIN
Spindle motor power: 37 kW

Turret

Number of turrets: 1
Number of tool slots: 12

Media

Chip conveyor: Yes

Additional equipment

- Hydraulic Chuck 15" (380[mm])
- Standard Tool Kit: 2X Straight Driven Tools, 2X Angular Driven Tools, 1X Set of Tool Holders for Turning Knives, Hard Jaws 15" (1 Set: 3 Pieces)

Additional Information

Machine Benefits

Technical Machine Benefits:
- - X/z travels: 495/780mm
- - Max turning diameter and length: 830mm/750mm
- - Main spindle power: 37kw, with a zf gearbox (2766nm torque)
- - Rapid traverse rates: 20m/min
- - 12-position bmt75-driven turret (7. 5kw, 4500 rpm)
- - Chip conveyor with belt
- - Doosan: axis and spindle load monitoring system
- - Triple signal light
- - High pressure coolant 10. 0 bar (60hz) or 7. 0 bar (50hz)/2. 2kw
- - Cutting transfer pv8300, standard for steels, rear with torque limiter
Qualitative Machine Benefits:
- - High/low pressure clamping

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
