DOOSAN - Puma 2600Y IISI-TUR-DOO-2018-00001

Name: DOOSAN Puma 2600Y II
Brand: DOOSAN
SKU: SI-TUR-DOO-2018-00001
Price: 7637700 INR
Availability: InStock

Rs. 7,637,700

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DOOSAN Puma 2600Y II For Sale | gindumac.com

Show in original language

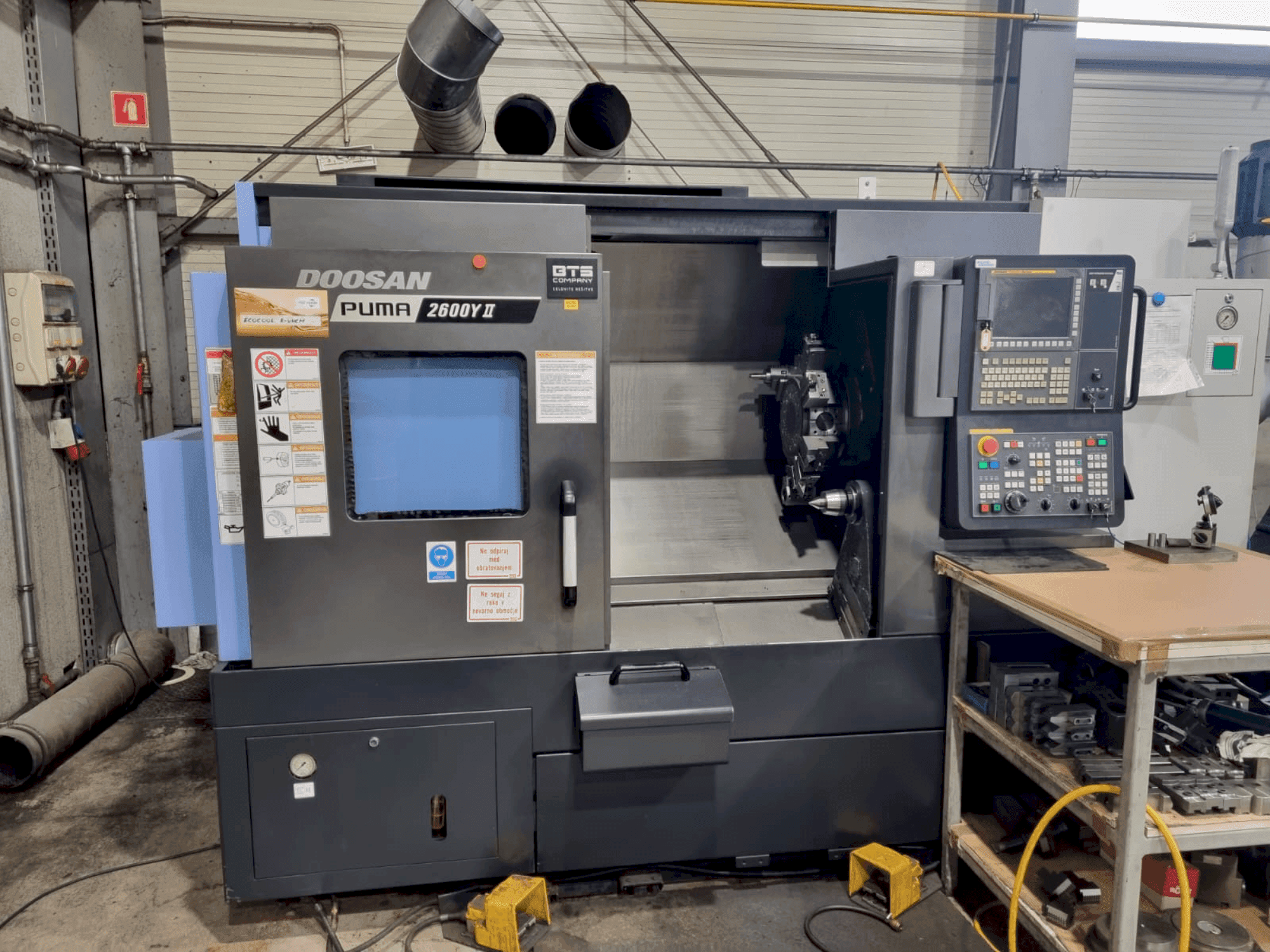

This 3-axis DOOSAN Puma 2600Y II was manufactured in 2018. A CNC Horizontal Turning Centre with Y-axis, it features a 10-inch chuck, 81 mm bar capacity, and a 12-position turret with powered tool positions. It boasts a spindle speed of 4000 RPM and a high-pressure coolant system. Ideal for precision machining with its rapid traverse rates and robust 6100 kg weight. For more information about this horizontal turning machine, please reach out to us.

Overview

brand: DOOSAN
year: 2018
MODEL: Puma 2600Y II
application type: Turning
Location: Slovenia
machine type: Horizontal Turning Machine
availability: Immediately
control unit brand: FANUC

Technical Information - DOOSAN Puma 2600Y II

General Data

Measurements width: 1945 mm
Measurements depth: 3505 mm
Measurements height: 2163 mm
Machine weight: 6100 kg

Control Unit

Brand: FANUC
Model: OiTF + MGI

Main drive

Spindle speed range: 4000 RPM 1/MIN
Spindle motor power: 22 kW
Number of axis: 3

Movement

X-AXIS Movement: 260 mm
X-AXIS Feed Force: 30 m/min
Y-AXIS Movement: 105 mm
Y-AXIS Feed Force: 10 m/min
Z-AXIS Movement: 830 mm
Z-AXIS Feed Force: 30 m/min

Turret

Number of turrets: 1

Tools

Number of index: 12

Additional equipment

- Chuck Size: 10 inches
- Max. Turning Diameter: 376 mm // Max. Turning Length: 760 mm
- Rotary Tool Speed: 5000 RPM
- Clamping Head: Standard 10" (255 mm) clamping head with a set of soft jaws
- Hard Jaws: Set of 10" hard jaws (1 set of 3)
- Revolver: 12-position turret with powered tool positions
- Increased Power for Driven Tools: 7.5 kW motor for driven tools
- Tool Holder: Includes 2x standard static holders and 2x powered tool holders
- Coolant System: High-pressure coolant system, 7 bar (70 l/min), with a filtration system (max flow rate 30 l/min)
- Oil Skimmer: Equipped with a belt-type oil skimmer for model P2600

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Ikz: yes (7 bar)
- - Mounting size: emt65 for tools
- - Spindle torque: 599 nm
- - Bar capacity: 81 mm

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
